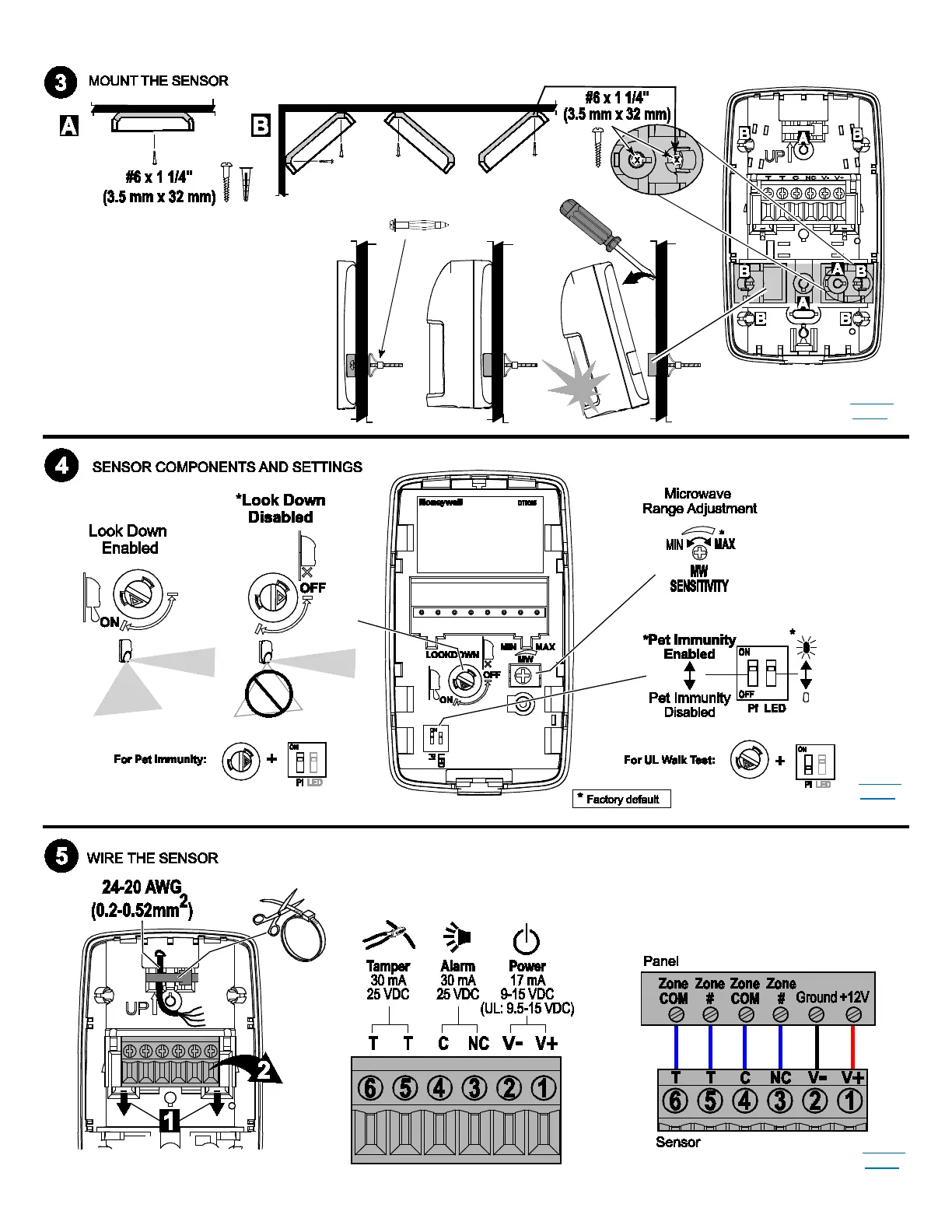

Honeywell DT8035 Dual Tec - Mount the Sensor; Sensor Components and Settings; Wire the Sensor

- 2 -
• [A] = Wall mounting holes.
• [B] = Corner mounting holes.
• The rear tamper plate MUST be
mounted to a stud, solid wood, or
with a robust wall anchor.
