- 2 -

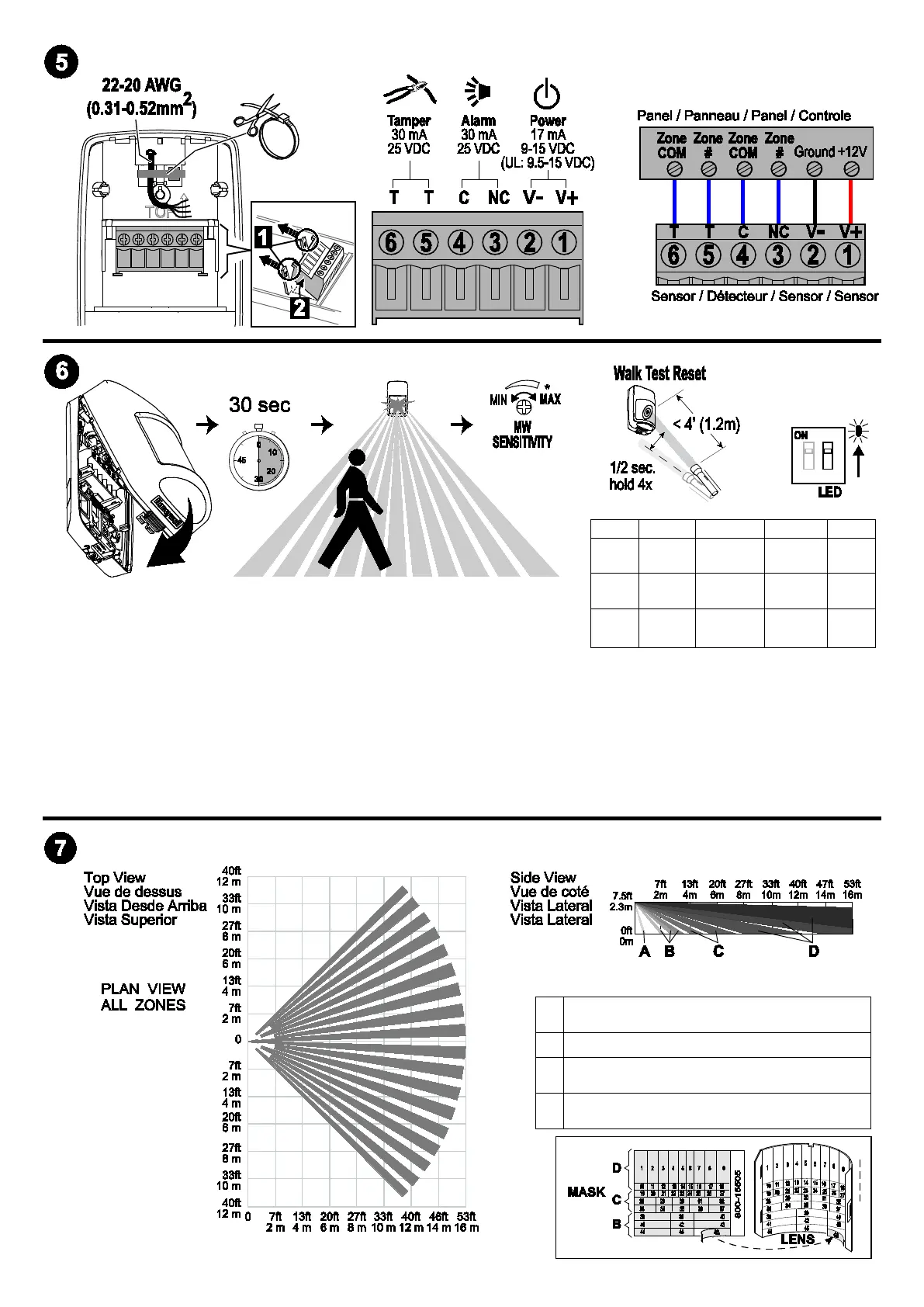

1. Apply power to the sensor. Initialization is complete when the LED stops
flashing slowly (about 30 seconds).
2. Turn the microwave sensitivity counterclockwise to reduce the microwave
range (minimum = 16.4’ / 5m) and close the sensor.
3. Walk through the detection area and observe the LED.
4. Adjust the microwave range as necessary to meet installation requirements.
Walk test mode is active for 10 minutes, then automatically exits test mode, disables the LED and enters normal
operation mode. For an additional 10 minute walk test, enable walk test mode again with the flashlight feature (see
Walk Test Reset above).
Note: During power up and walk test modes the LED is active regardless of the LED Enable/Disable Dip switch setting.
Red
Slow
Blink
ON
Alarm
ON
Alarm
Fast
Blink
Yellow OFF
ON
Microwave
ON
Microwave
OFF
Green OFF
ON
PIR
ON
PIR
OFF
Zones / Zones / Zonas / Zonas
A
2
Look-down / Basses / Vista Zona 0 /
Vigilância inferior
B
18
Lower / Courtes / Cercana/ Mais baixas
C
20
Intermediate / Intermédiaires / Intermedia /
Intermédias
D
54
Long / Longues / Largo Alcance / Longo
alcance
