Honeywell Experion Orion Console User Manual

35

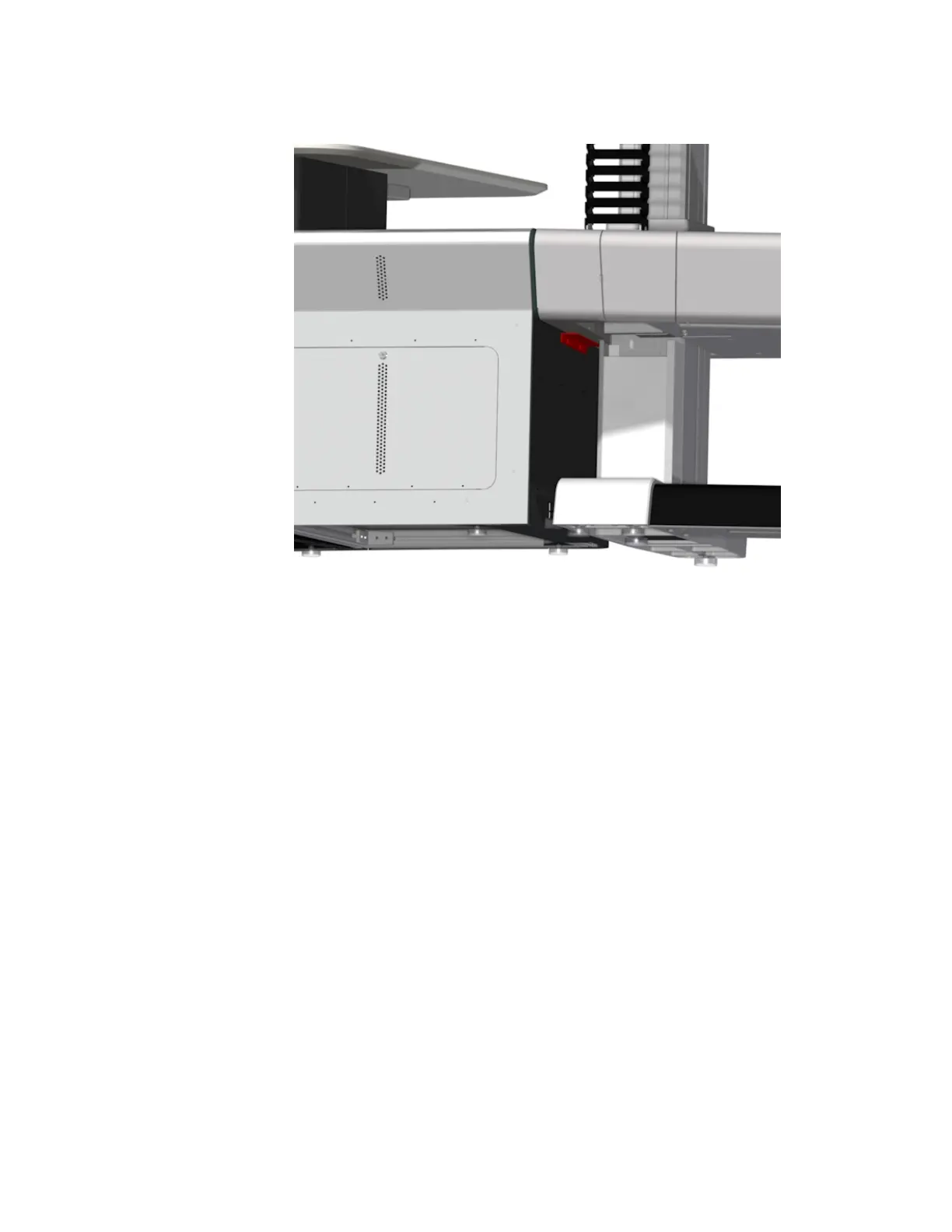

6. Tighten the bolts to fix the bracket to the side panel and screw a
tech screw into each of the three holes in the top of the bracket to
secure it to the console.
7. Open the console lower raceway and you will find a power cable
labeled RAUX or LAUX meaning left or right side of the console.
8. Remove the front panes of the auxiliary unit. Feed the cable
through the console foot and into the auxiliary. Pull the cable up
and behind the frame and fan, and then plug into the power bar,
as shown below in green.
Chapter 3 - Installing an Experion Orion Console
