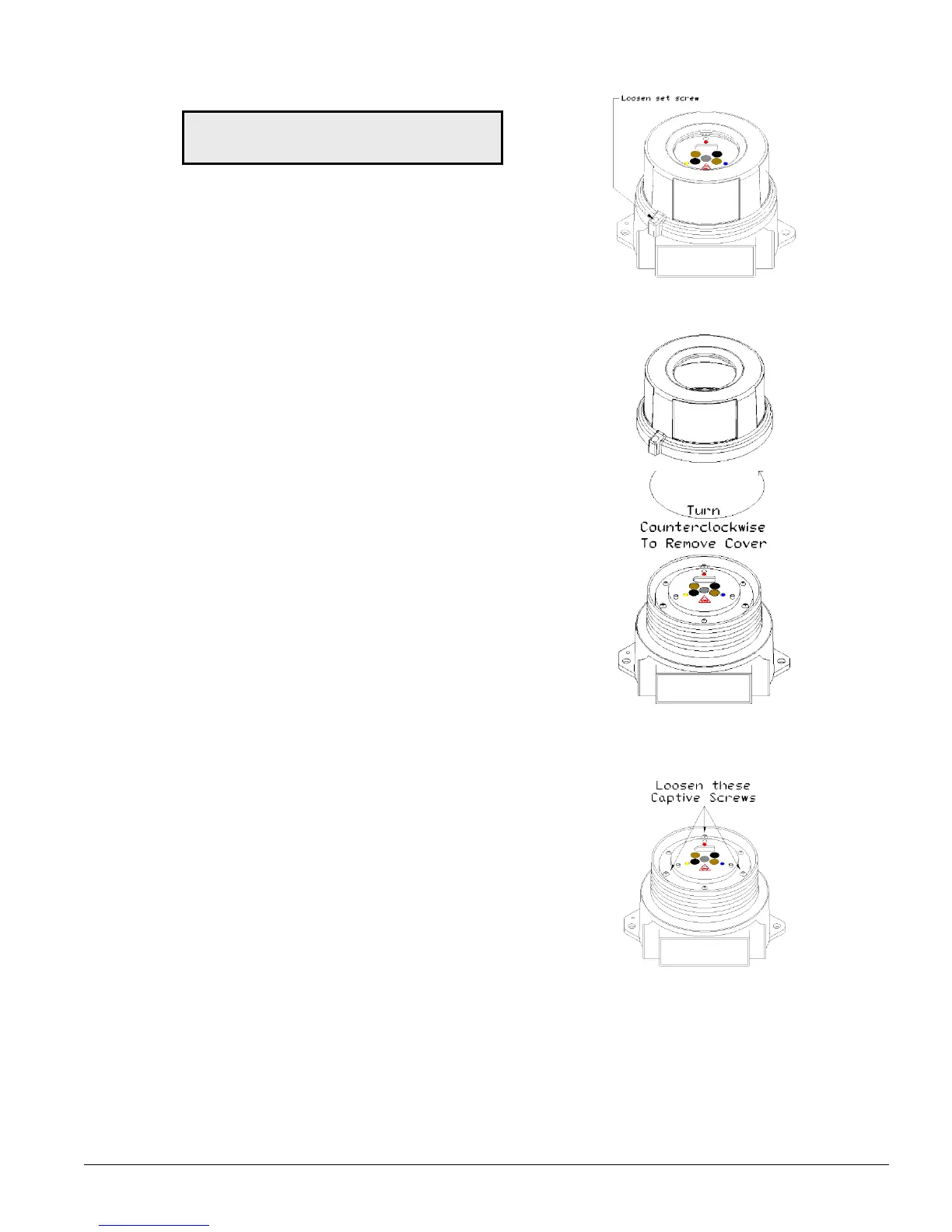

4. Loosen the set screw on the enclosure lid
(see Figure 2-6).
Figure 2-6
5. Turn counterclockwise (CCW) to unscrew
the enclosure lid (see Figure 2-7).
Figure 2-7
6. Loosen the three captive screws on the
Detector Module “puck” (see Figure 2-8).
Figure 2-8
CAUTION: Disconnect power before
unscrewing the Housing Lid.
