Honeywell Genesis 7580G User Manual

12 - 4

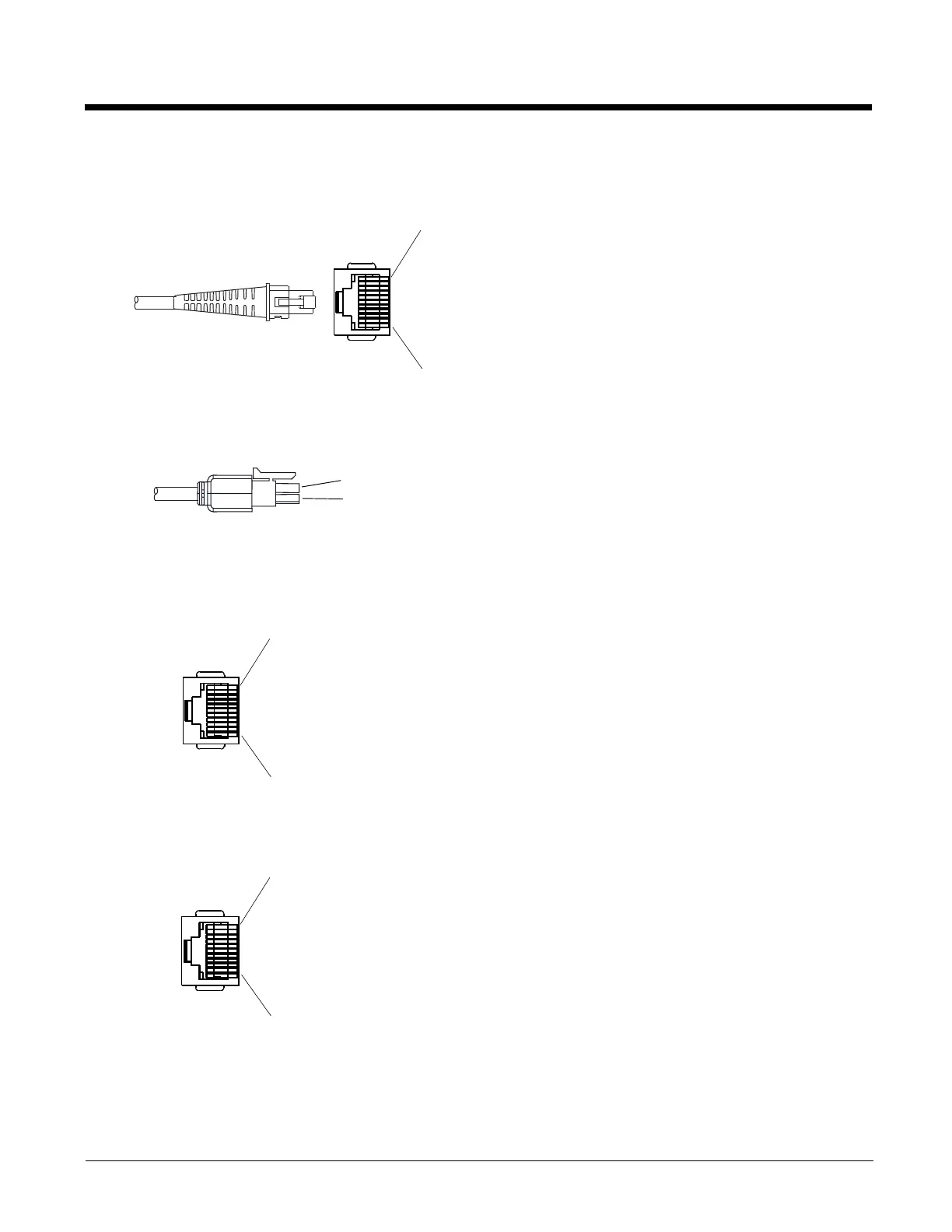

USB
10 Pin Modular Plug
EAS
2 Pin Plug
EAS - USB
10 Pin Modular Plug
EAS - Serial Output
10 Pin RJ41 Modular Plug
1 Cable shield
2 Cable select
3 Supply ground
4
5
6
7 +5V power
8
9 Data +
10 Data -
1 EAS ANT -
2 EAS ANT +
1 Cable shield
2 Cable select
3 Supply ground
4
5
6
7+5V power
8 Interlock
9 Data +
10 Data -
1 Cable shield
2 Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6CTS
7 +5V power
8RTS
9Interlock
10

Honeywell Genesis 7580G Specifications

General

Type	Fixed bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-70 - 70 °
Motion tolerance (cm/s)	200
Light levels (direct sunlight)	0 - 100000 lx
Standard interfaces	USB, RS-232, RS-485, Keyboard wedge
Product color	Black, Silver
Input voltage	5.5 V
Power consumption (standby)	0.5 W
Power consumption (typical)	2 W
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	80 mm
Width	83 mm
Height	150 mm
Weight	340 g
