Honeywell Genesis 7580G User Manual

3 - 8

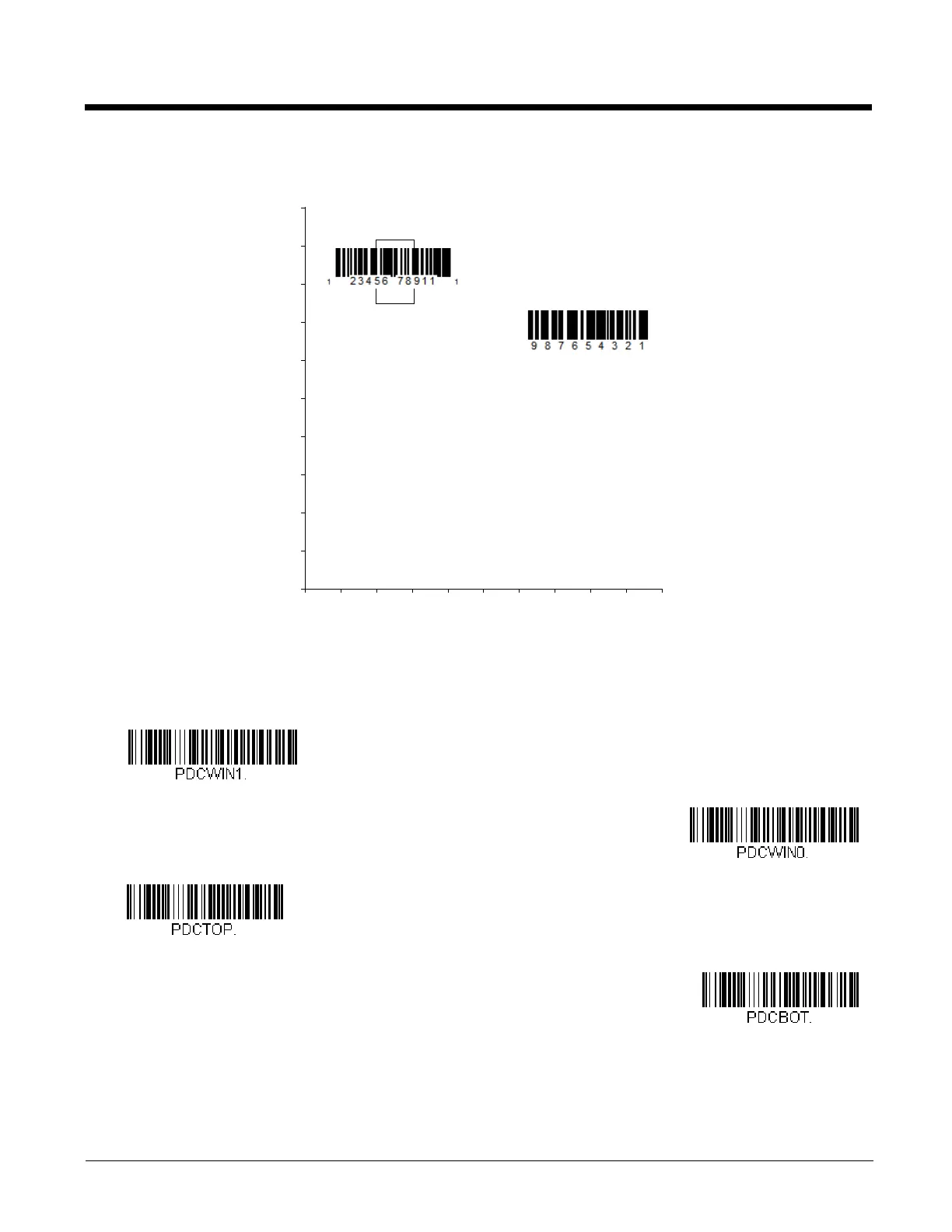

In the example below, the white box is the centering window. The centering window has been set to 20% left, 30% right,
8% top, and 25% bottom. Since Bar Code 1 passes through the centering window, it will be read. Bar Code 2 does not
pass through the centering window, so it will not be read.
Note: A bar code needs only to be touched by the centering window in order to be read. It does not need to pass completely
through the centering window.
Scan Presentation Centering On, then scan one of the following bar codes to change the top, bottom, left, or right of the
centering window. Then scan the percent you want to shift the centering window using digits on the inside back cover of
this manual. Scan Save. Default Presentation Centering = 40% for Top and Left, 60% for Bottom and Right.
0
Bar Code 1
Bar Code 2
10 20 30 40 50 60 70 80 90 100%
100
90
80
70
60
50
40
30
20
10
0%
Presentation Centering On
* Presentation Centering Off
Top of Presentation Centering
Window
Bottom of Presentation
Centering Window

Honeywell Genesis 7580G Specifications

General

Type	Fixed bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-70 - 70 °
Motion tolerance (cm/s)	200
Light levels (direct sunlight)	0 - 100000 lx
Standard interfaces	USB, RS-232, RS-485, Keyboard wedge
Product color	Black, Silver
Input voltage	5.5 V
Power consumption (standby)	0.5 W
Power consumption (typical)	2 W
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	80 mm
Width	83 mm
Height	150 mm
Weight	340 g
