HW7000EH Portable Electrical Generator Owner’s Manual www.honeywellgenerators.com 7
Assembly
Step 1: Install Support Legs
1. Place generator on a flat, level surface.
2. Stand at side of generator opposite recoil starter
handle. Grip frame; carefully pull up and push to tilt
generator backward.
3. Gently set generator onto the recoil side or elevate
the generator by placing solid wood pieces under-
neath unit.
4. Place a washer in the center of each rubber stopper.
5. Attach a rubber stopper to the bottom of each support
leg using a 30 mm long full-thread hex bolt and a ser-
rated flange nut; tighten until securely seated.
6. Attach each support leg to pre-drilled holes on bottom
of generator frame, using 16 mm long full-thread hex
bolts; tighten until securely seated.
To install support legs, you will need:
M12 x 30 mm long full-thread hex bolts (2)
M8 x 22 mm OD x 1.75 mm washers (2)
M12 serrated flange nuts (2)
M12 x 16 mm long full-thread hex bolts (4)
Support legs (2)
Rubber stoppers (2)
Socket wrench with 12 mm socket
*
* Not included
Generator must be empty of engine oil and fuel.
Drain engine oil and fuel, if necessary.
Generator is heavy! Lifting generator can cause
back or other bodily injury. NEVER lift generator
without assistance.

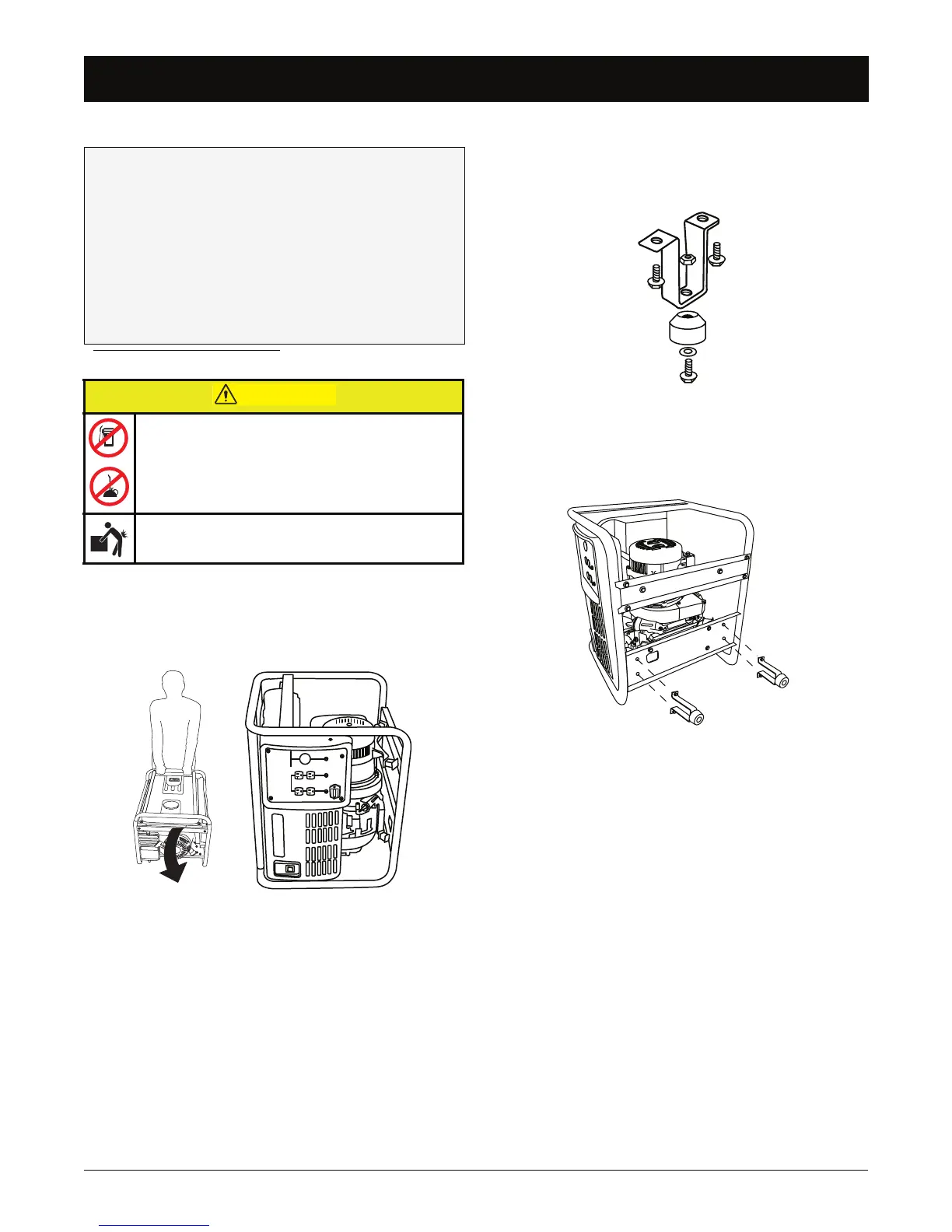

FIGURE 4: Tip onto Generator Recoil Side
FIGURE 5: Rubber Stopper Attached to Support Leg
FIGURE 6: Support Leg Attached to Generator
