Assembly
8 www.honeywellgenerators.com HW7000EH Portable Electrical Generator Owner’s Manual
Step 2: Install Wheel Axle and Wheels
1. Install wheel axle brackets to frame using 16 mm long
full-thread hex bolts and serrated flange nuts.
1A. Install pre-attached bracket to frame first.
Axle brackets are offset (one side longer than the other),
place with the short side up during installation (see Fig-
ure 8).
1B. Install other bracket (included in hardware bag) to
frame.
On each end of axle:
2. Slide and push wheel onto axle.
3. Slide a washer onto axle.
4. Slide snap pin into pre-drilled hole using pliers until
fully seated.
5. Return generator to upright position (so that wheels
and leg supports are touching the ground).
To install wheel assembly, you will need:
Wheel axle (1)
M12 x 16 mm long full-thread hex bolts (4)
M12 serrated flange nuts (4)
Axle bracket
*
(1)
* Two brackets are needed to install wheel axle. One bracket
comes already attached to wheel axle; other bracket is included
in accessory kit box.
Wheels (2)
M16 x 30 mm OD x 2.5 mm washers (2)
Snap pins (2)
12 mm open end wrench
†
Socket wrench with 12 mm socket
†
† Not included.
Pliers
†

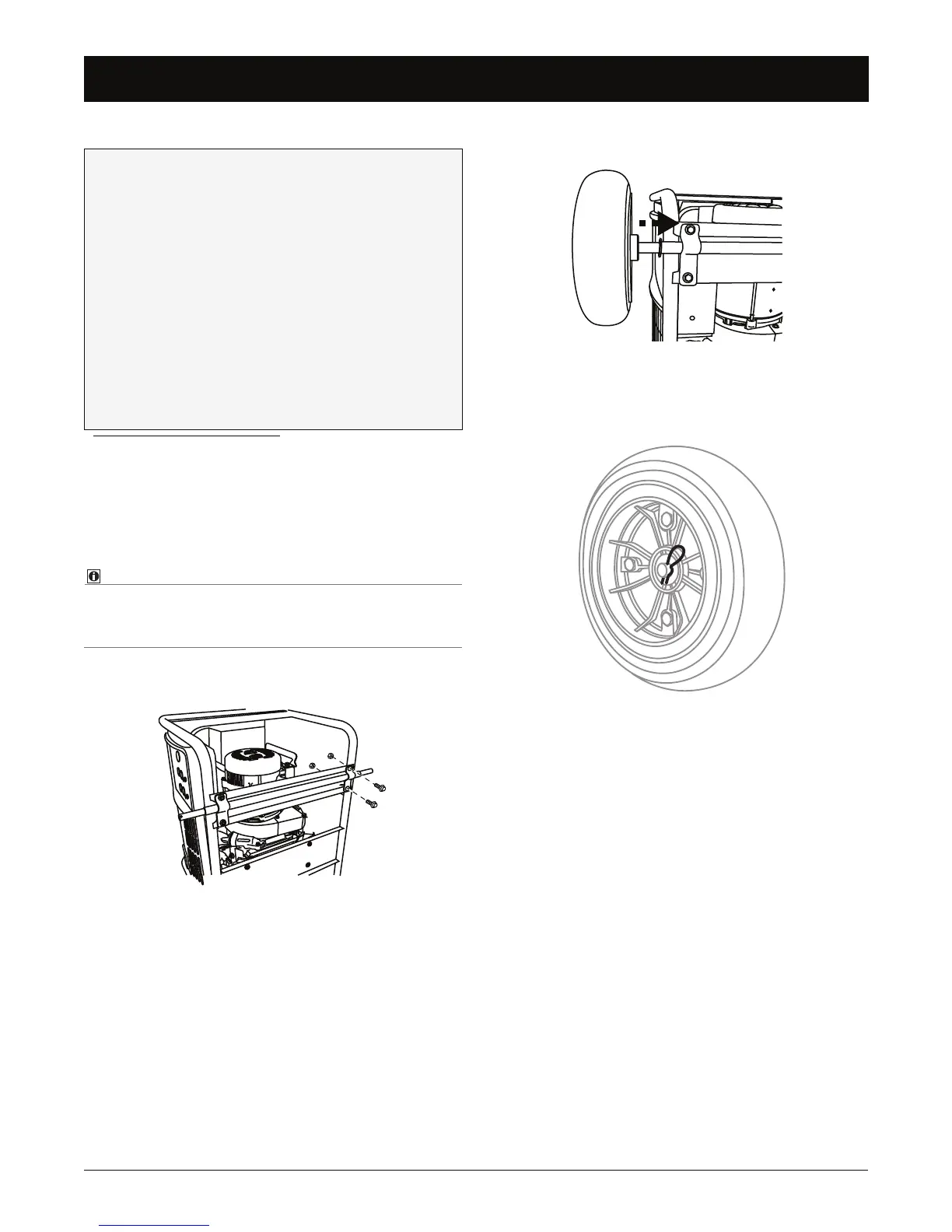

FIGURE 7: Wheel Axle Attached to Generator
FIGURE 8: Slide Wheel onto Wheel Axle
FIGURE 9: Snap Pin Installation
