ECS Series Emergency Communication System Installation Manual 151455
3-6
For more information, refer to FACP Installation manuals.
Cabinet backbox dimensions are 20" W x 26.5” H x 4.82" D.

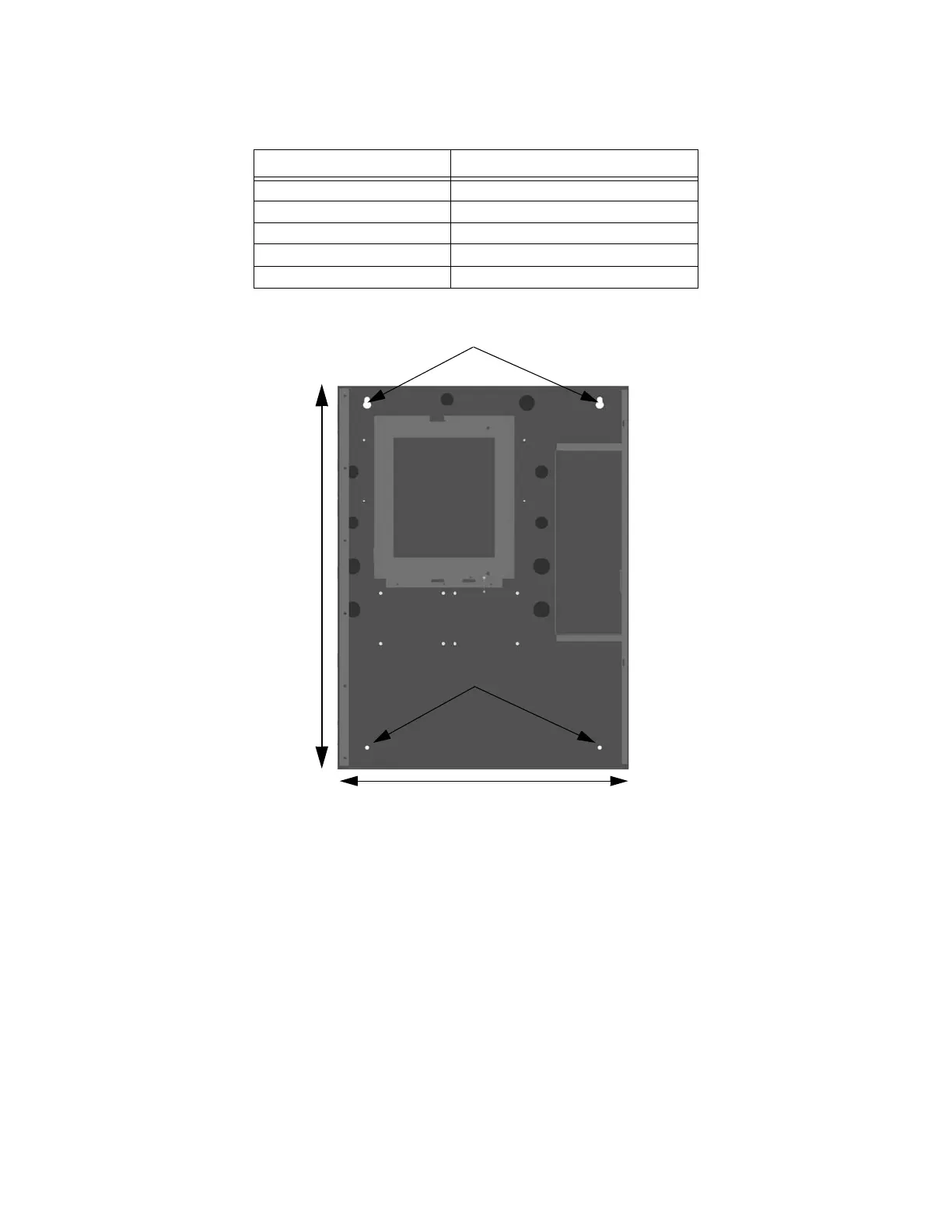

Figure 3-5 IFP-100ECS, IFP-l000ECS or ECS-LOC Cabinet Mounting Holes
3.4.3 Surface Mounting the IFP-2000ECS or ECS-LOC Cabinet
The Cabinets can be mounted on the wall surface by using the mounting holes in the back of the
cabinet (see Figure 3-6).
The ECS-LOC is a combination ECS-RVM Remote Voice Module and its associated RA-2000
annunciator. The ECS-LOC is compatible with the IFP-2000ECS. For more information, refer to
Installation manuals for the FACP. Cabinet dimensions are 20.362" W x 27" H x 5.054" D
Model Number FACP Installation Manual PN
IFP-2000ECS 151430-L8
IFP-1000ECS 151460
IFP-100ECS 151458
IFP-300ECS LS10145-001SK-E
IFP-2100ECS LS10143-001SK-E
Key Shaped Holes
Bottom Mounting
26.5"
20"
Holes
To Next Page
