ECS Device Installation 151455
4-59
4.10 Installing the ECS-CE4
The ECS-CE4 adds four audio circuits to the ECS-50W and ECS-125W.
The ECS-CE4 mounts inside the ECS-50W or ECS-125W cabinet.
Follow these steps to install the ECS-CE4.
1. Using the four supplied screws mount the ECS-CE4 in the cabinet as shown in Figure 4-76.

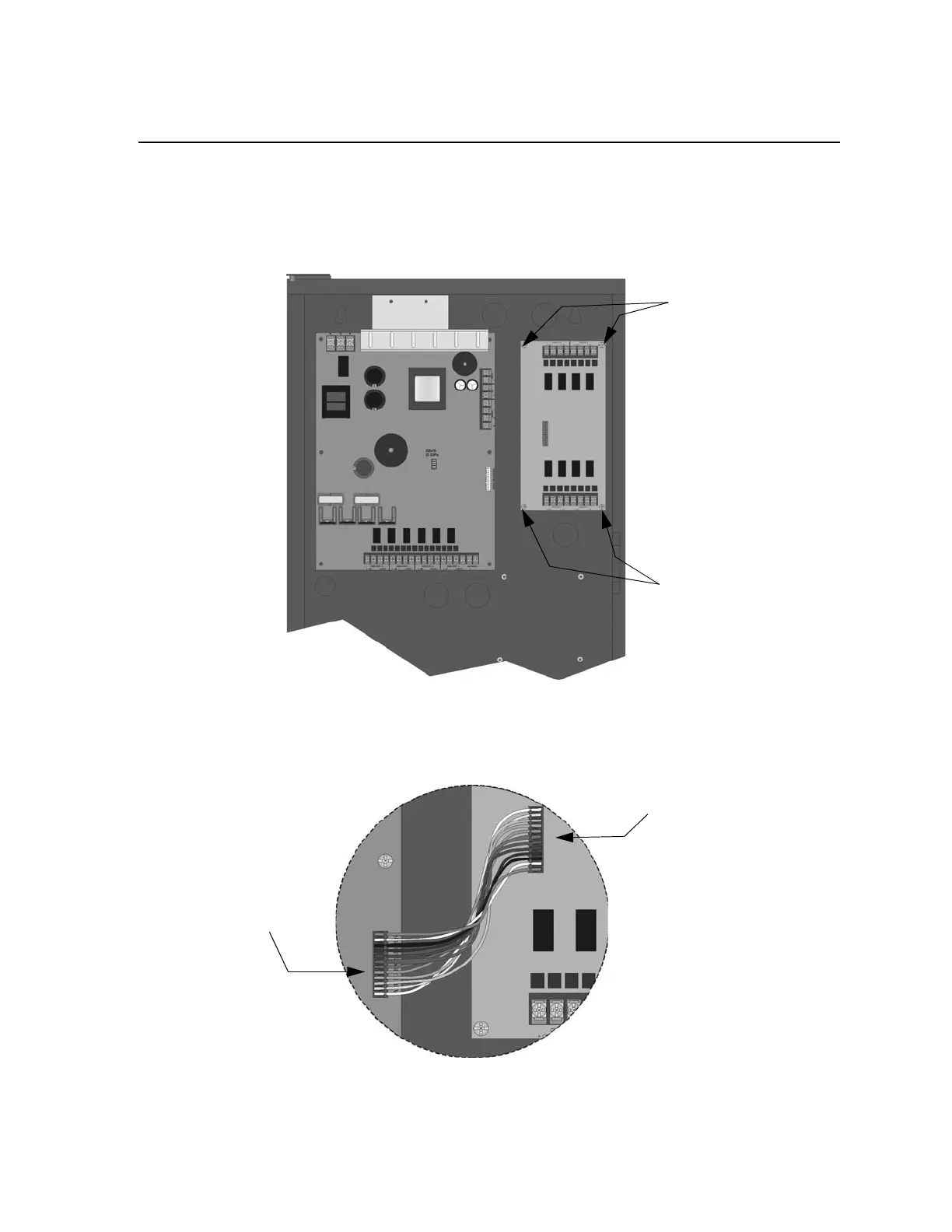

Figure 4-76 Mounting the ECS-CE4
2. Connect the audio expander cable harness (P/N 130426) from the connector labeled “Audio
Expander” on the ECS-50W or ECS-125W to the connector on the ECS-CE4 as shown in Figure
4-77.
Figure 4-77 Audio Expander Wire Harness Connections
Mounting
Screws
Mounting
Screws
ECS-CE4
ECS-CE4
Connector
ECS-125W
Audio
Expander
To Next Page
