INNCOM E7 THERMOSTAT INSTALLATION INSTRUCTIONS
36-00012—01 2

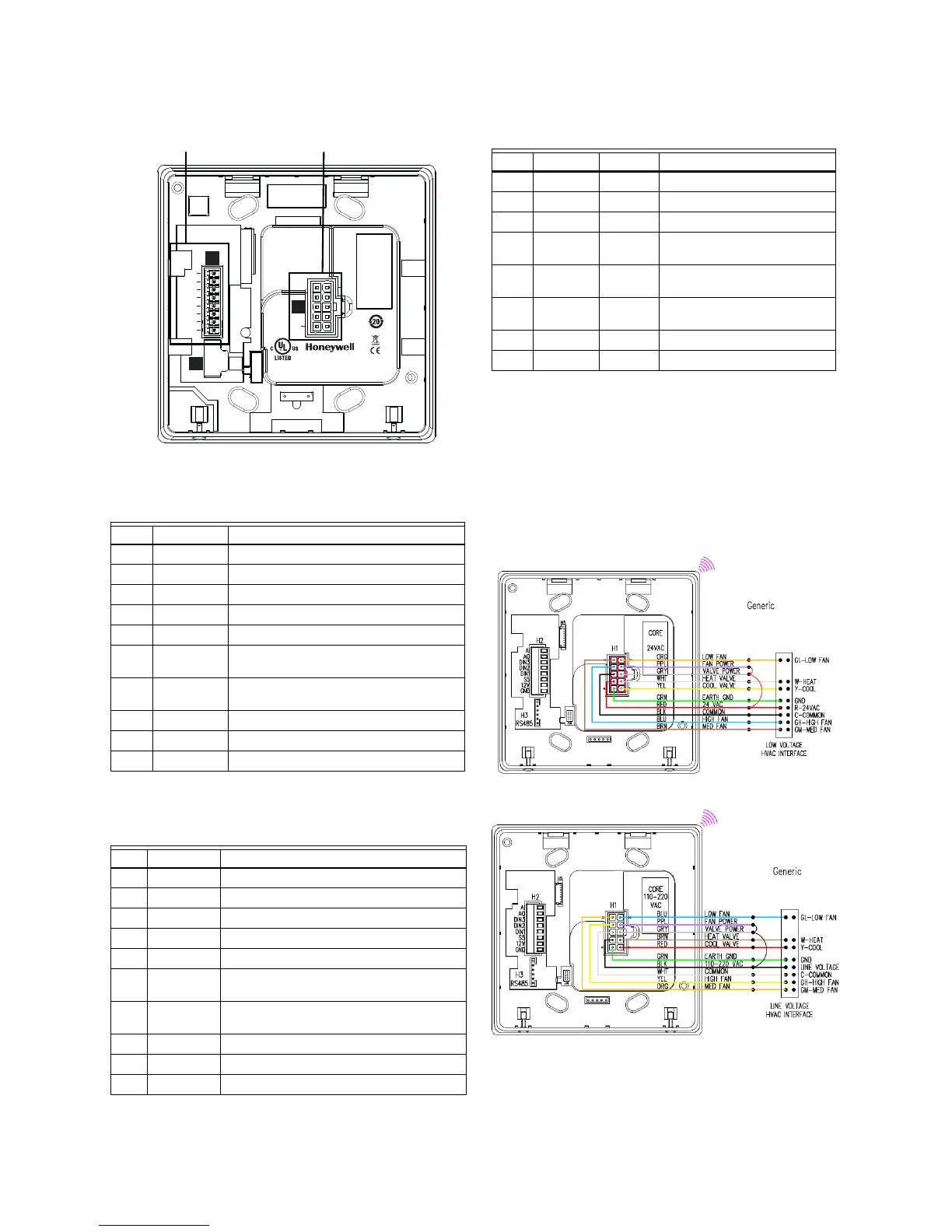

WIRING
Wiring Diagrams
NOTE: If the HVAC configuration for your application is not
shown here, refer to the document: e7 Wiring Configurations
found online at:
https://pages1.honeywell.com/e7_Install_Instructions.html
Generic FCU:24 VAC
Generic FCU: 110-220 VAC
Table 1. H1 Red Connector: 24 VAC Power/HVAC Sig-
nals
Pin Color Typical Function
1 Green Ground
2 Red 24 VAC
3 Black Common
4Blue High Fan
5 Brown Medium Fan or Second Stage Heat
6 Yellow Cold Water Valve (FCU) or Compressor
Signal (Heat Pump)
7 White Hot Water Valve (FCU) or Reversing Valve
(Heat Pump)
8Grey Valve Power
9 Violet Fan Power
10 Orange Low Fan
Table 2. H1 White Connector: 110-220 VAC Power/
HVAC Signals
Pin Color Typical Function
1 Green Ground
2 Black Line
3 White Neutral
4 Yellow High Fan
5 Orange Medium Fan or Second Stage Heat
6 Red Cold Water Valve (FCU) or Compressor
Signal (Heat Pump)
7 Brown Hot Water Valve (FCU) or Reversing Valve
(Heat Pump)
8Grey Valve Power
9 Violet Fan Power
10 Blue Low Fan
FCC ID: HS9-201528
Niantic, CT 06357
Country of Origin: Mexico
Patent Pending
AI
1
10
AO
DIN3
DIN2
DIN1
S5bus
12VDC
GND
IC: 573R-201528
BLE
H4
RS485
H1
H3
H2
Honeywell GmbH
Boeblinger Str. 17
71101 Schoenaich
Germany
E361577
Sensing Control
H2 - Low Voltage Signals
H1 - Power/HVAC Signals
Table 3. H2 Low Voltage Signals
Pin Color Signal Typical Function
1 Green GND Ground
2 Black VEE 12 VDC
3 White S5bus Communications
4 Yellow DIN1 Entry Door, 2 transitions to
active
5 Orange DIN2 Balcony Door/Window, 2
transitions to active
6 Red DIN3 External PIR/Motion Sensor, 2
transitions to active
7 Brown AO 0-10 V VFD Fan
8 Grey AI Remote Thermistor
To Next Page
