INNCOM E7 THERMOSTAT INSTALLATION INSTRUCTIONS
3 36-00012—01

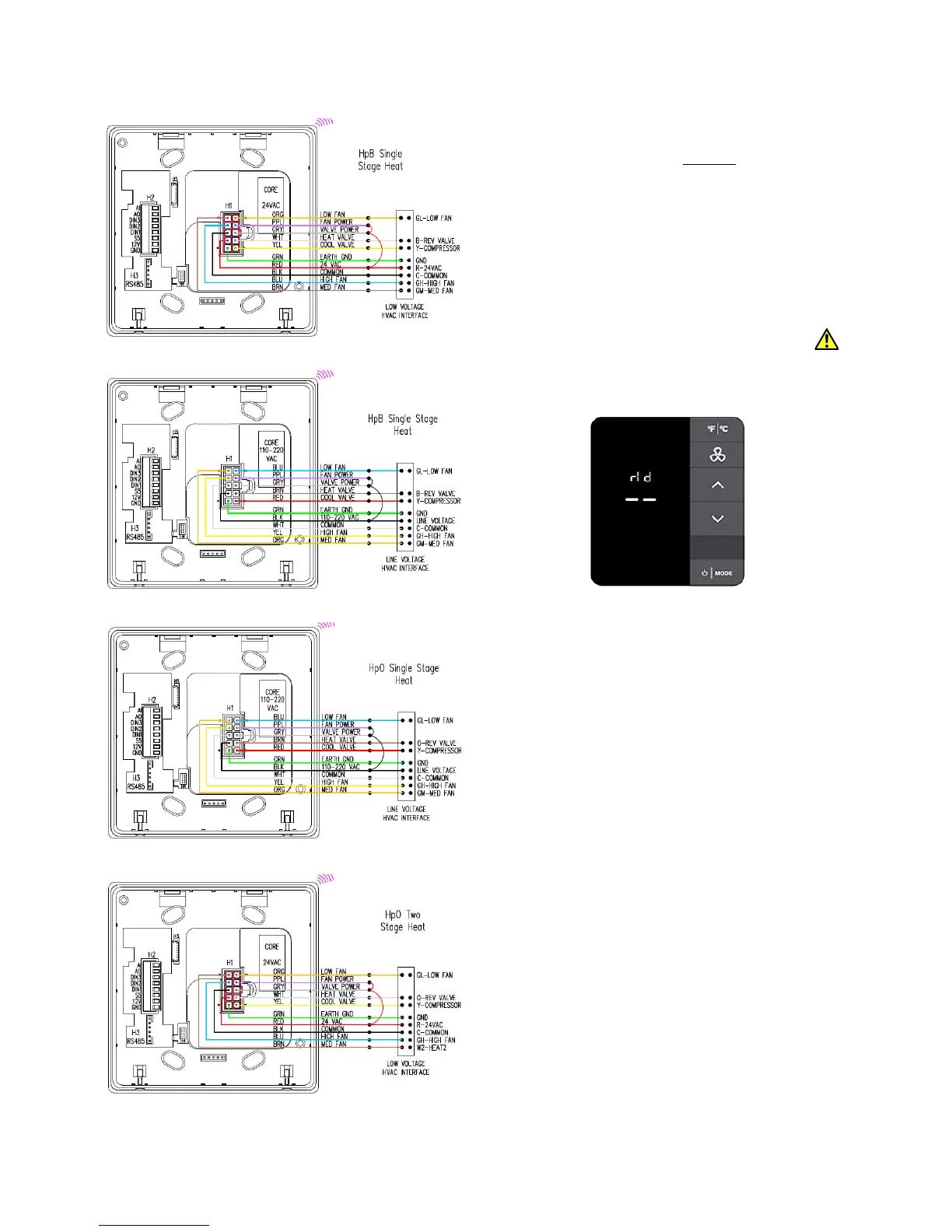

HpB Single-Stage Heat: 24 VAC
HpB Single-Stage Heat: 100-220 VAC
HpO Single-Stage Heat: 110-220 VAC
HpO Two-Stage Heat: 24 VAC
INITIAL SETUP
IMPORTANT: Before going through the initial setup sequences,
ensure the thermostat is mounted and connected
to the Smart Wall
Plate.
N
OTE: Prior to completing Initialization Mode, or pushing the
thermostat configuration from engINN, the thermostat is
configured with factory defaults to disable any call for heat, cool,
or low, medium and high fan speeds to protect the HVAC
equipment.
• When properly connected, the thermostat will proceed into
INTIALIZATION MODE and display
rId.
• When not properly connected to the Smart Wall Plate,
the unit will display the alert message
SWp and the
alert icon will illuminate until the Smart Wall Plate is
connected.
SETUP ROOM ID
1. Once rid is displayed, press MODE. The default Room ID
value (65535) is displayed and will begin scrolling across
the screen one numerical setting at a time, from highest to
lowest (left most to right most value). Note that the five-
digit number is comprised of three fields: highest digit, mid-
dle two digits, lowest two digits. Three settings must be
made.
2. Scrolling will stop at the highest digit first. Use the UP/
DOWN arrow buttons to change this value (range is 0-6).
Press FAN to continue.
3. Set the next two values in the sequence using the UP/
DOWN arrow buttons (range is 0-99). Press MODE to
continue. Repeat this step for the lowest two values (range
is 0-99) and press MODE. Press MODE to accept the
value.
4. The new ID number scrolls across the display. The unit
beeps when the value is stored to memory. Once the scroll-
ing is completed, Press the DOWN arrow button to dis-
play HVAC (HAC) menu.
