Checking the usage
TC
Tightness control for checking two safety valves be-
fore and after burner run, with adjustable measure-
ment time for adjustment to different test volumes,
leakage rates and inlet pressures. The TC is used in
industrial thermoprocessing equipment, on boilers
and on forced draught burners.
TC 1, TC 2
For gas solenoid valves, quick opening or slow open-
ing with start gas rate.
TC 3
With fitted auxiliary valves for quick or slow opening
gas solenoid valves as well as for motorized valves.
This function is only guaranteed when used within the
specified limits– see page10 (Technical data). Any
other use is considered as non-compliant.
Type code
Code Description
TC Tightness control
V
C


For attachment to valVario
For attachment to CG
For quick opening individual valves
For quick or slow opening valves
R
N
With Rp internal thread
With NPT internal thread
05 p
u max.
500 mbar
W
Q
K
Mains voltage:
230VAC, 50/60 Hz
120VAC, 50/60 Hz
24VDC
/
W
Q
K
Control voltage:
230VAC, 50/60 Hz
120VAC, 50/60 Hz
24VDC

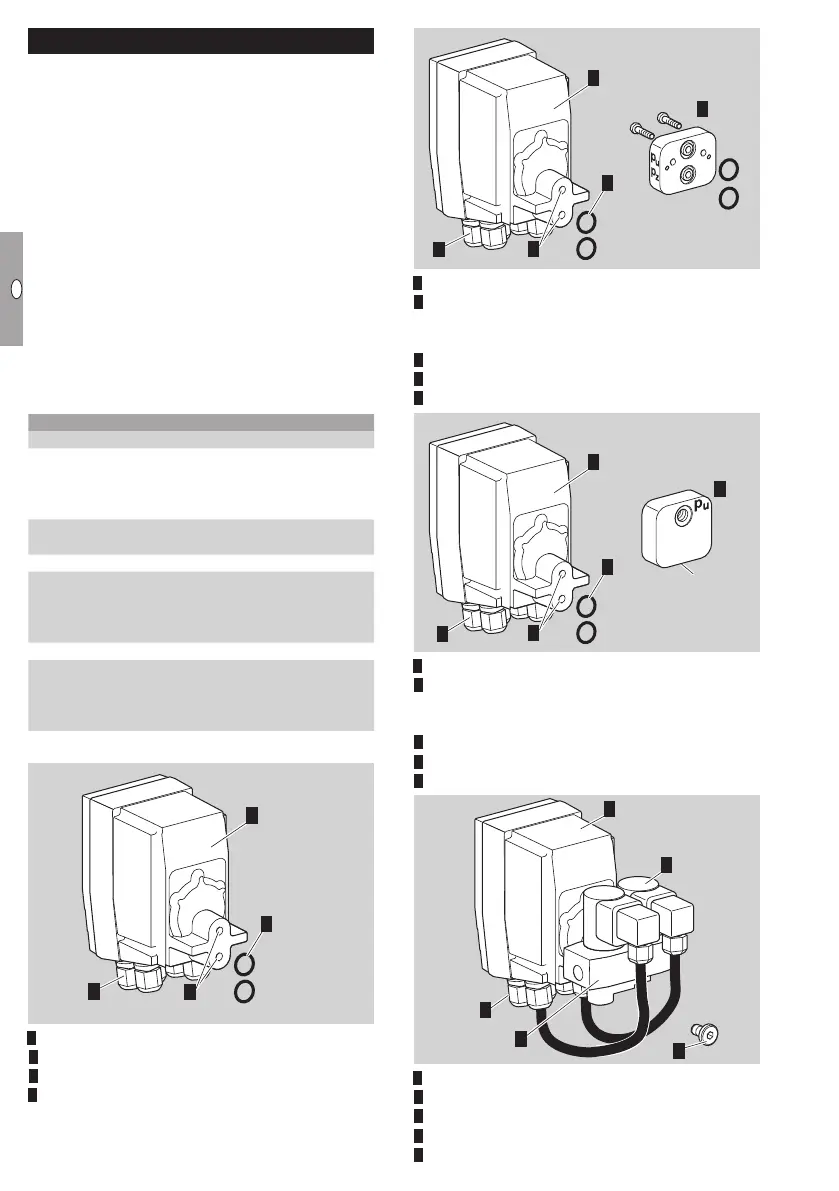

Part designations
TC 1C
TC 1V
TC 2
TC 3
p
z
2
2
1
1
2
4
5
3
4
1
5
3
4
1
4
2
3
5
3
 TC 1V
 Connectors
 5 x M16 cable glands
4 2 x O-rings
TC 1C
TC 1V
TC 2
TC 3
p
z
2
2
1
1
2
4
5
3
4
1
5
3
4
1
4
2
3
5
3
 TC 1C for combination controlsCG
 1 x adapter
2 x O-rings
2 x retaining screws
 Connectors
4 5 x M16 cable glands
5 2 x O-rings
TC 1C
TC 1V
TC 2
TC 3
p
z
2
2
1
1
2
4
5
3
4
1
5
3
4
1
4
2
3
5
3
 TC 2 for solenoid valves
 1 x adapter
2 x O-rings
2 x retaining screws
 Connectors
4 5 x M16 cable glands
5 2 x O-rings
TC 1C
TC 1V
TC 2
TC 3
p
z
2
2
1
1
2
4
5
3
4
1
5
3
4
1
4
2
3
5
3
 TC 3
 Auxiliary valves
 Valve block
4 5 x M16 cable glands
5 1 x screw plug
