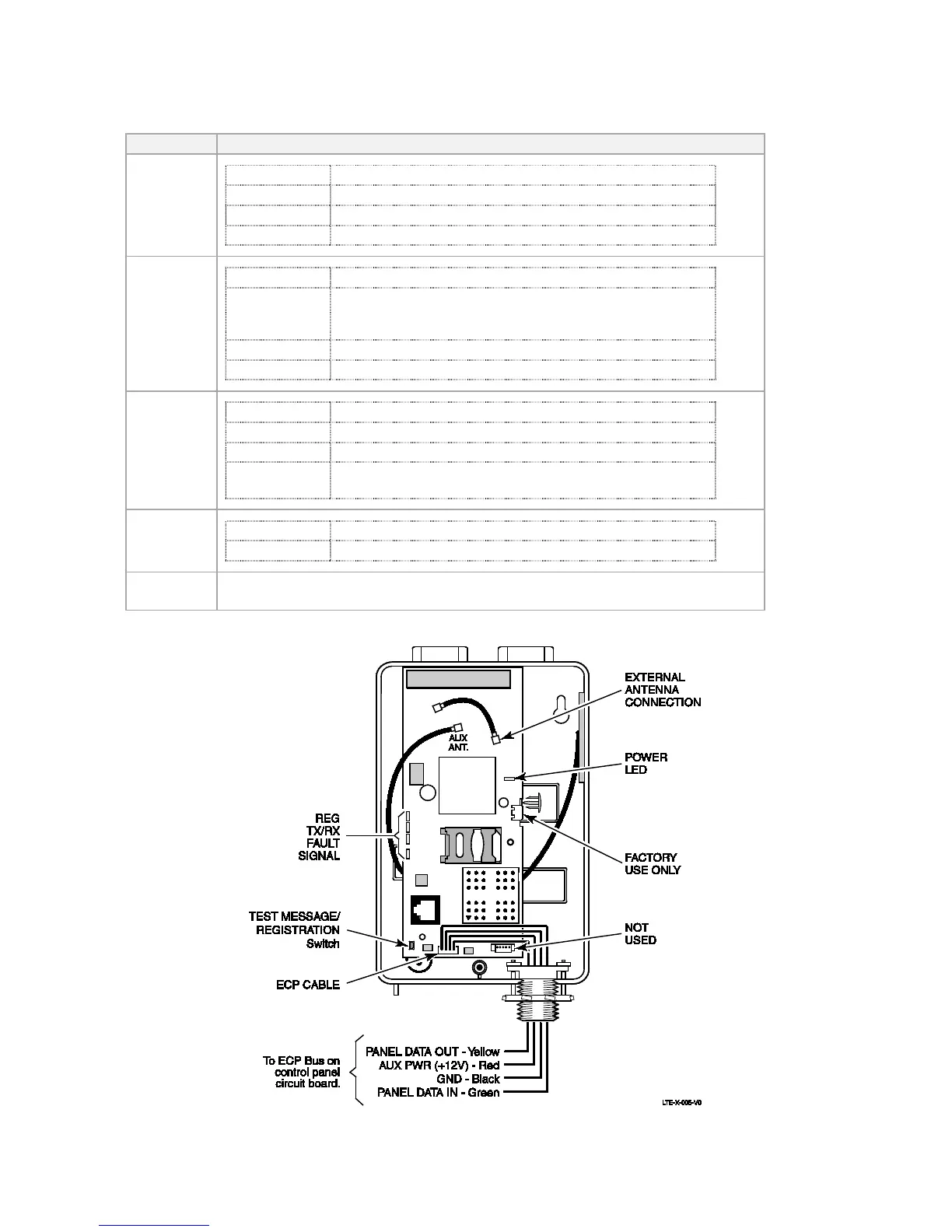

Honeywell LTE-X series

LED and Wiring Information
LED
DESCRIPTION
REG
(green)
ON
Module is NOT registered with AlarmNet.
OFF
Module is registered with AlarmNet.
FAST BLINK
Download session with Compass in progress.
SLOW BLINK
In unison with yellow LED – Registration in progress.
TX/RX
(yellow)
ON
Message transmission pending.
QUICK
PERIODIC
BLINK
Normal
FAST BLINK Message waiting for network ACK.
SLOW BLINK
In unison with green LED – Registration in progress.
FAULT
(red)
ON
No contact with network.
OFF
Normal.
SLOW BLINK
Loss of communication with the panel (ECP fault).
FAST BLINK
No network contact AND loss of communication with the
control panel.
SIGNAL
(green)
ON
Minimum required signal strength is present.
OFF
Installation is not recommended.
ALL
IN UNISON FAST BLINK – Hardware Error.
IN SEQUENCE – Power Up sequence
