LTE-X Series Installation and Setup Guide
– 4 –

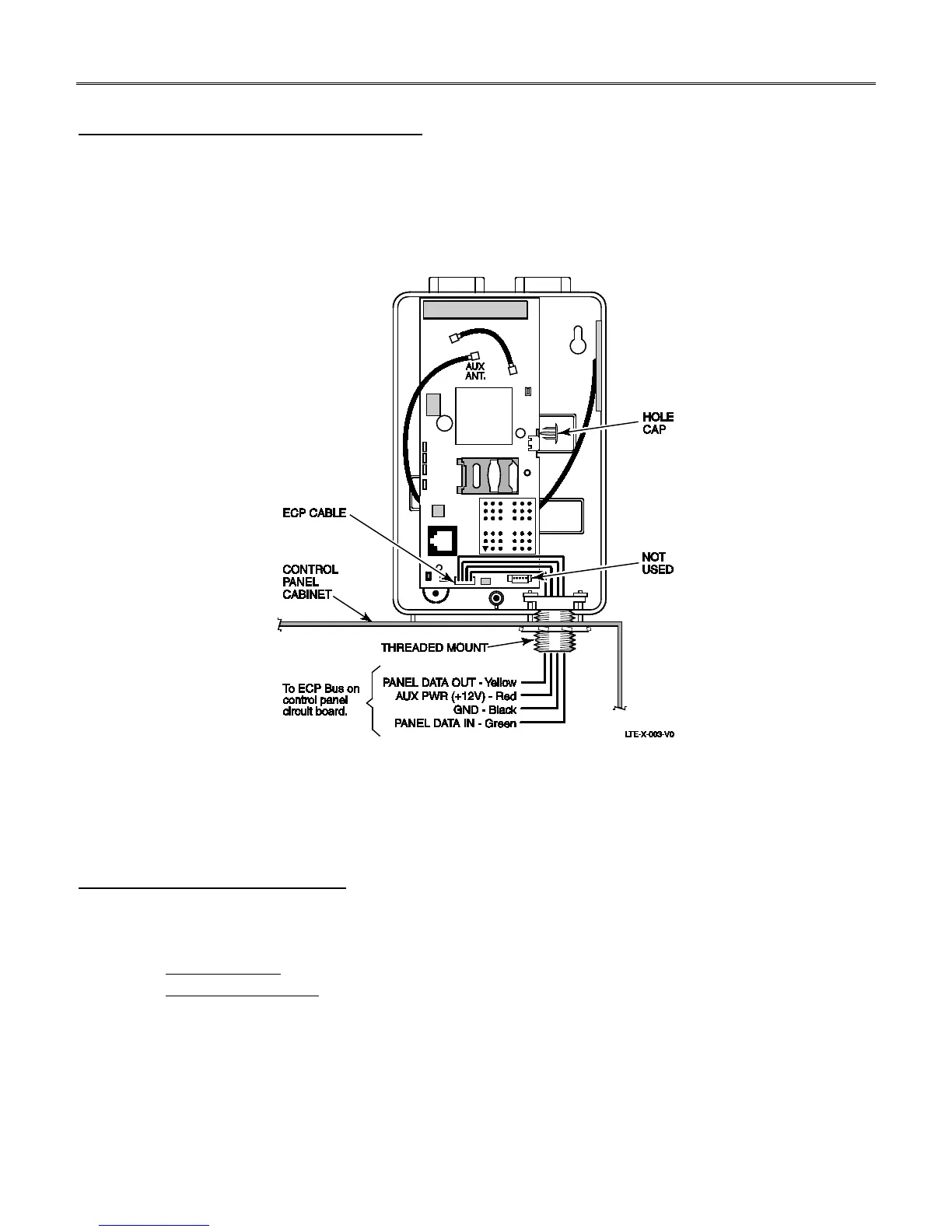

Mounting the Module on the Control Panel
1. Ensure power to the control panel (both AC and battery) is off, then remove the knockout on the top right of the
control panel cabinet.
2. Open the communicator cover. Remove the Hole Cap attached to the plastic (trim as necessary), and snap it into
the top opening of the enclosure.
3. Remove the bottom knockout on the enclosure for the threaded mount. Then install the threaded mount so it
snaps into the plastic retaining tabs. Mount the communicator assembly on the cabinet's knockout, and fasten
with the locking nut.
4. Connect the ECP cable to the communicator circuit board and thread the wires through the threaded mounting
adapter.
5. Refer to the control panel’s installation guide, and complete the ECP cable wiring.
6. Secure the wiring with ties as necessary.
Mounting the Module on the Wall
1. Ensure control panel power (both AC and battery) is off, then remove a suitable knockout on the top or side of the
control panel cabinet.
NOTES:
• If in the wall wiring will be used, route the wiring through the communicator's rear wiring access hole.
• If surface mounted wiring
will be used, remove the communicator’s bottom knockout and use that to route the
wiring.
2. Open the communicator’s cover. Remove the Hole Cap attached to the plastic (trim as necessary), and snap it into
the top opening of the enclosure.
3. Secure the enclosure to the wall using both mounting holes.
To Next Page
