Honeywell ML6161 Series - Page 4

35 AND 70 LB-IN. NON-SPRING RETURN DIRECT COUPLED ACTUATORS
63-2209—8 4

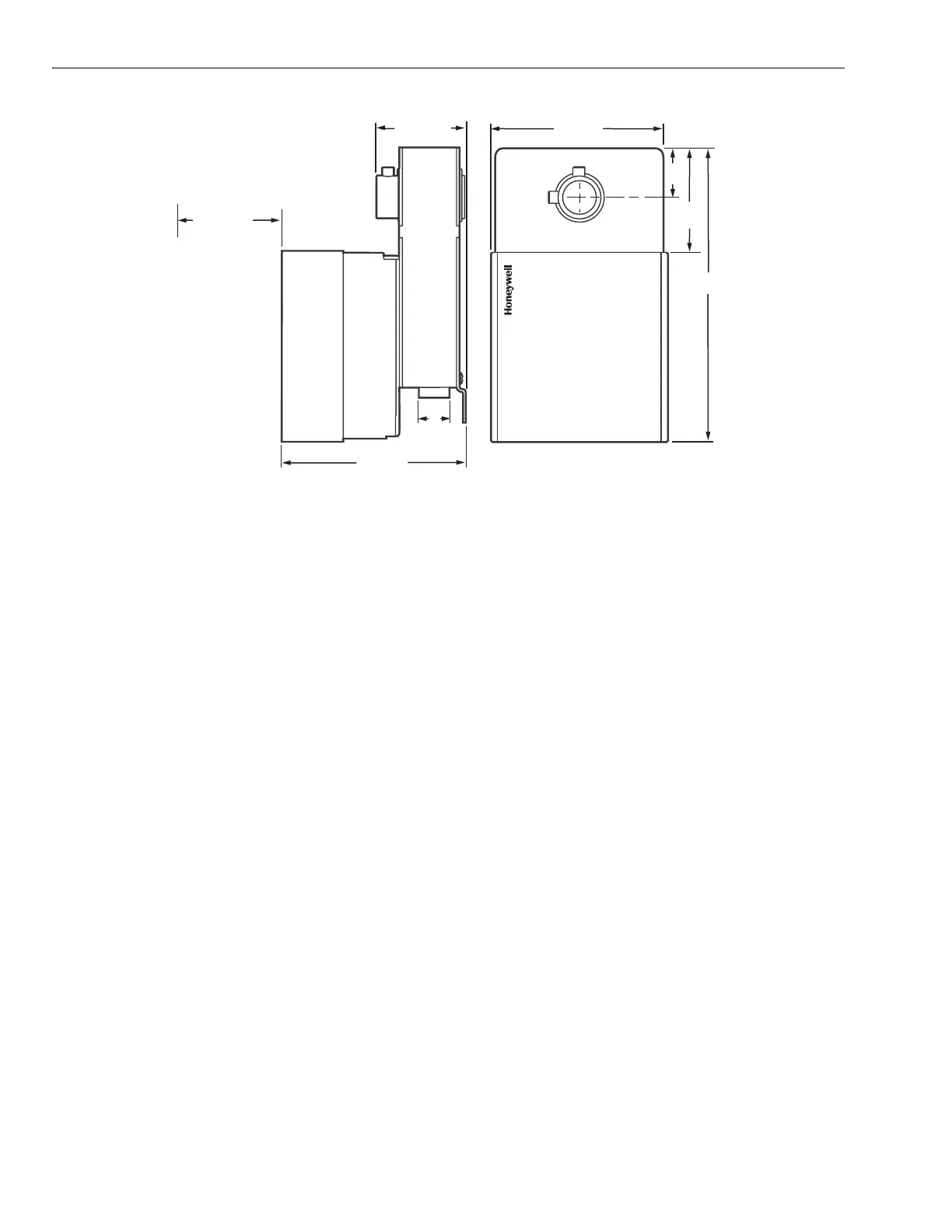

Fig. 1B. Approximate dimensions of ML6161C,D and ML6174C,D DCA in in. (mm).
M18018
5-7/8
(149)
1-13/16
(46)
1
(25)
3-5/8 (92)
1-13/16 (46)
3 IN. (76 MM)
MINIMUM SPACING
REQUIRED
FOR REMOVING
CONDUIT COVER
3-3/4 (95)
7/8
(22)
