Installation NEC Power-limited (Class 2) Wiring Requirements

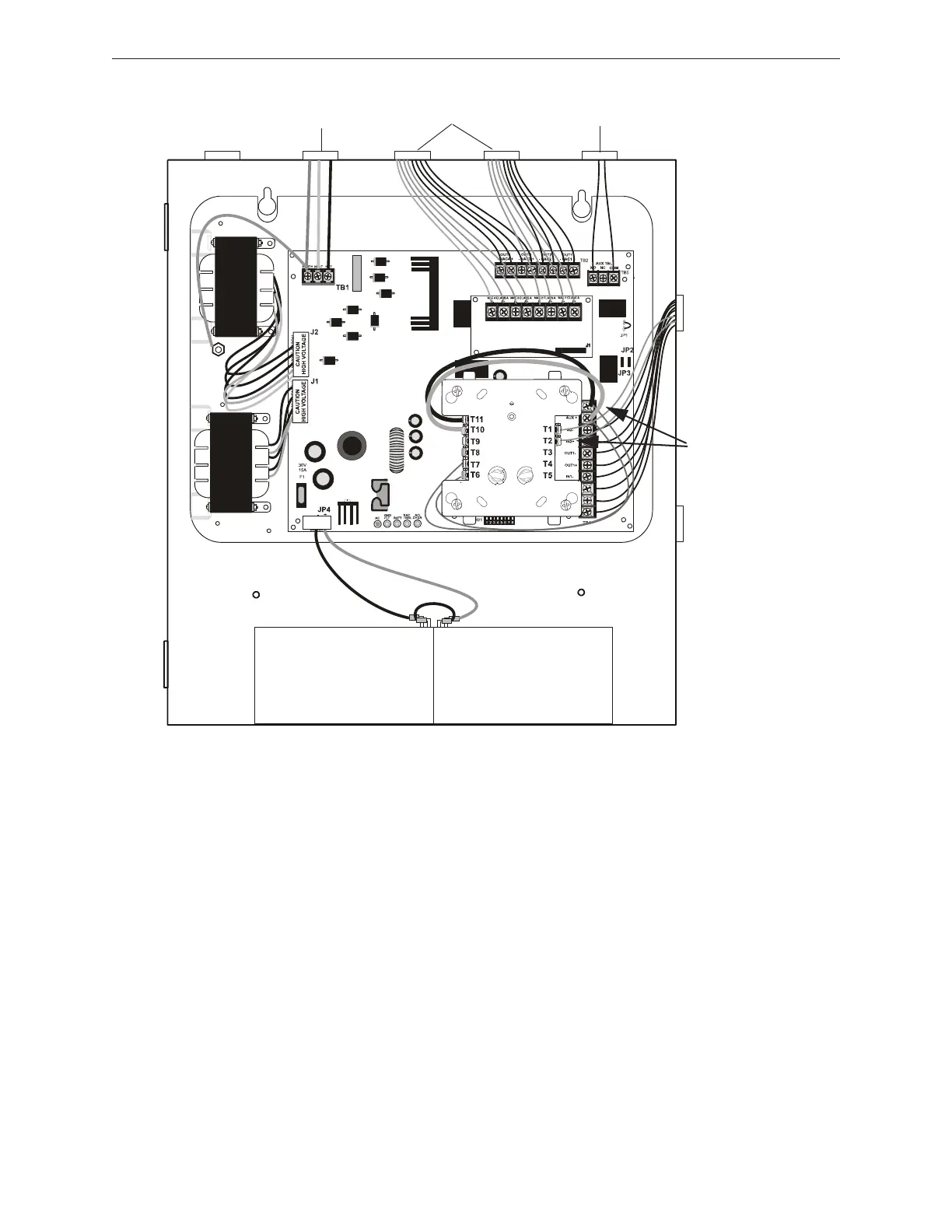

Figure 2.5 Power-limited (Class 2) Wiring Example
AC Power
Nonpower-limited
Output Circuits
Power-limited Circuits (Class 2)
Relay Contacts
Nonpower-limited Circuit
Input Circuits
Power-limited Circuit
(Class 2)
Specific Application
Power & SLC are
Power-limited Circuits
(Class 2)
24fspwrltpH.wmf
*If the SLC device does
not match the one in this
figure, refer to the SLC
manual wiring conver-
sion charts for legacy
and newer versions of
the modules.
