34 FCPS-24S Series Instruction Manual — P/N 51977:J2 7/11/2014
Applications Remote Supply With Resettable and Nonresettable Power
For addressable panel applications, an addressable monitor module can be used to monitor the trou-
ble contact of the FCPS-24S and the resettable power connection from the FACP using an End-of-
Line power supervision relay. If the FCPS-24S enters a trouble condition, the Normally Closed
trouble contact will open and if the resettable power from the FACP is lost, the Normally Closed
power supervision relay contact will open.
The following notes apply to Figure 5.4 on page 34.
1. An End-of-Line Resistor must be installed between TB5, Terminal 1 (trouble relay common)
and the monitor module input circuit for module wiring supervision (the ELR value is
dependent on the module employed).
2. An End-of-Line power supervision relay must be connected between TB4, Terminals 5 & 6.
The Normally Closed (when energized) power supervision relay contact must be in series with
the End-of-Line Resistor referred to in note 1.
3. Do not loop wires under screw terminals. Break wires to maintain proper supervision.
4. For a list of compatible devices, refer to the Notifier Device Compatibility Document #15378.

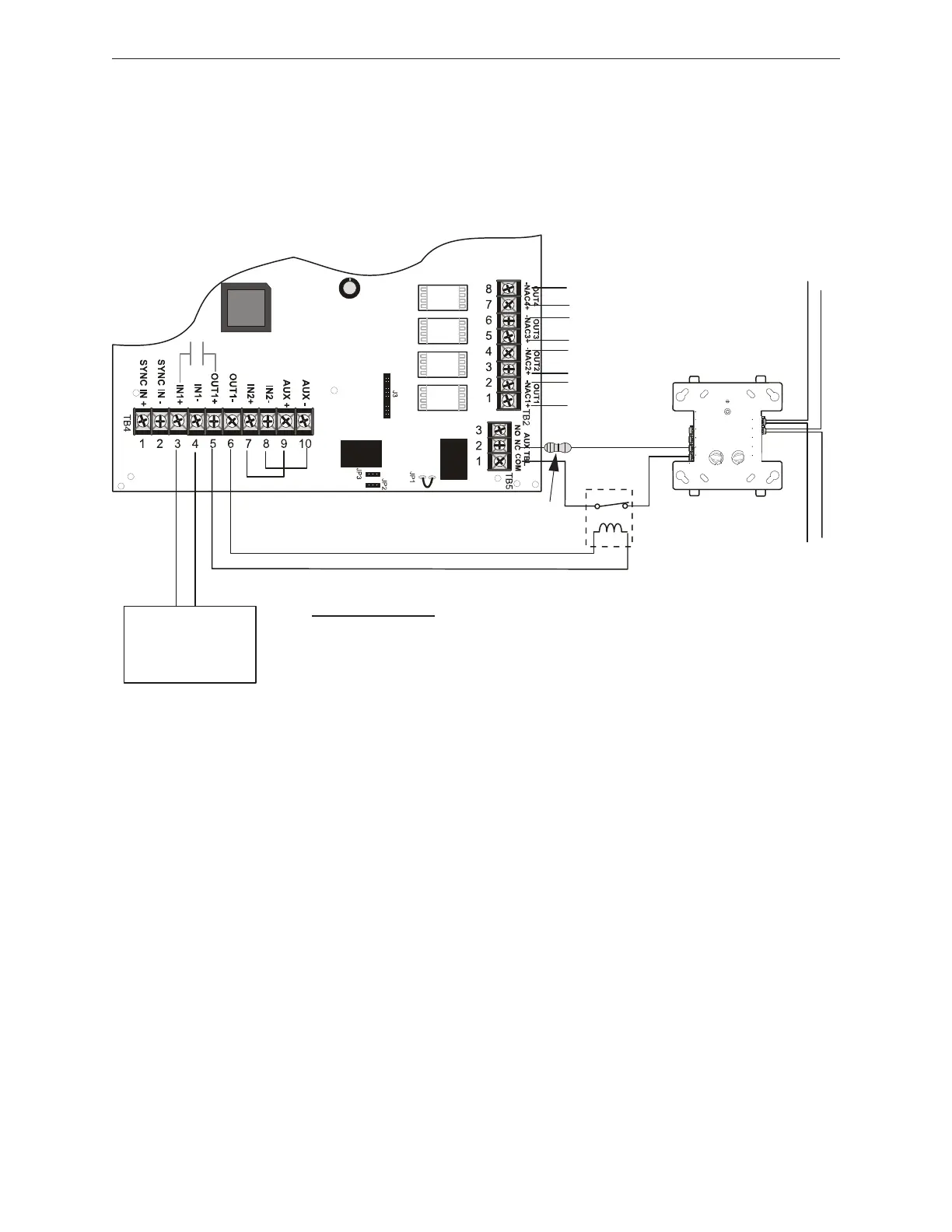

Figure 5.4 Remote Power Supply Application
Power Output 1
Resettable
Power Output 2
Resettable
Power Output 3
Nonresettable
Power Output 4
Nonresettable
SLC
SLC
Monitor Module*
FACP
24 VDC
Resettable
Power
FCPS-24S
EOL Power
Supervision
Relay
EOLR-1
(energized)
SW1 Switch Settings
1 = OFF
2 = OFF
3 = OFF (master)
4 = ON (Aux Trouble Relay responds
to all troubles)
5 = OFF
6 = ON
7 = OFF (charger enabled)
8 = OFF (circuit 4 NAC)
Split Alarm
No Sync
End-of-Line Resistor supplied
with Monitor Module
24fsapp4tpH.wmf
*If the SLC device does
not match the one in this
figure, refer to the SLC
manual wiring conversion
charts for legacy and newer
versions of the modules.
T11
T10
T9
T8
T7
T6
T1
T2
T3
T4
T5
To Next Page
