Supervisory Operations
4.9 Supervisory
Supervisory Event (If a fire alarm exists and alarms are silenced, a supervisory alarm will resound the panel sounder)
• Produces a warbling audible tone
•
SUPERVISORY appears in the Header Bar
• SUPERVISORY illuminates on the Alert Bar as a yellow color indicator and provides Supervisory event counts
• Illuminates the yellow off normal LED
•Displays
SUPERVISORY and specific device information in the Events List
• Displays information on how to react to the event in the Instructional Text Area
Responding to a Supervisory event:
• The Informational Text Area on the screen will indicate step by step what needs to be done to acknowledge and silence the event.
• Tap on the
ACKNOWLEDGE touchpoint located in the Header Bar. The ACKNOWLEDGE touchpoint will be highlighted in blue. A check
mark will appear next to the acknowledged event.
• Tap on the S
ILENCE touchpoint located in the Header Bar. The SILENCE icon in the Alert Bar will illuminate yellow once the N16 is
silenced. All silenceable will turn off.
• BLOCK ACKNOWLEDGE allows for multiple events to be acknowledged at once.
• Investigate and correct the condition that activated the Supervisory point.
• Once all the events have been acknowledged the blue highlight indicator will move from the
ACKNOWLEDGE touchpoint to the SILENCE
touchpoint.
• For a non-latching event, the N16 will return to normal once the supervisory condition is corrected.
• For a latching event, tap on the RESET touchpoint located in the Header Bar to return the N16 to normal.
1:38:06PM
TROUBLE
DISABLE
SIGNALS
SILENCED
FIRE ALARM
OTHER
CO ALARM
SUPERVISORY
SUPERVISORY
LATCH SUPERV
First Floor, Guest Room
Zone Z392 (Z392)
Thu 02/22/18
1:52:57 PM
NO25L01M011
Step 1 Acknowledge each event. This is secondary text to explain what acknowledging an event means and who should do it.
UNACKNOWLEDGED SUPERVISORY (1)
SUPERVISORY
1

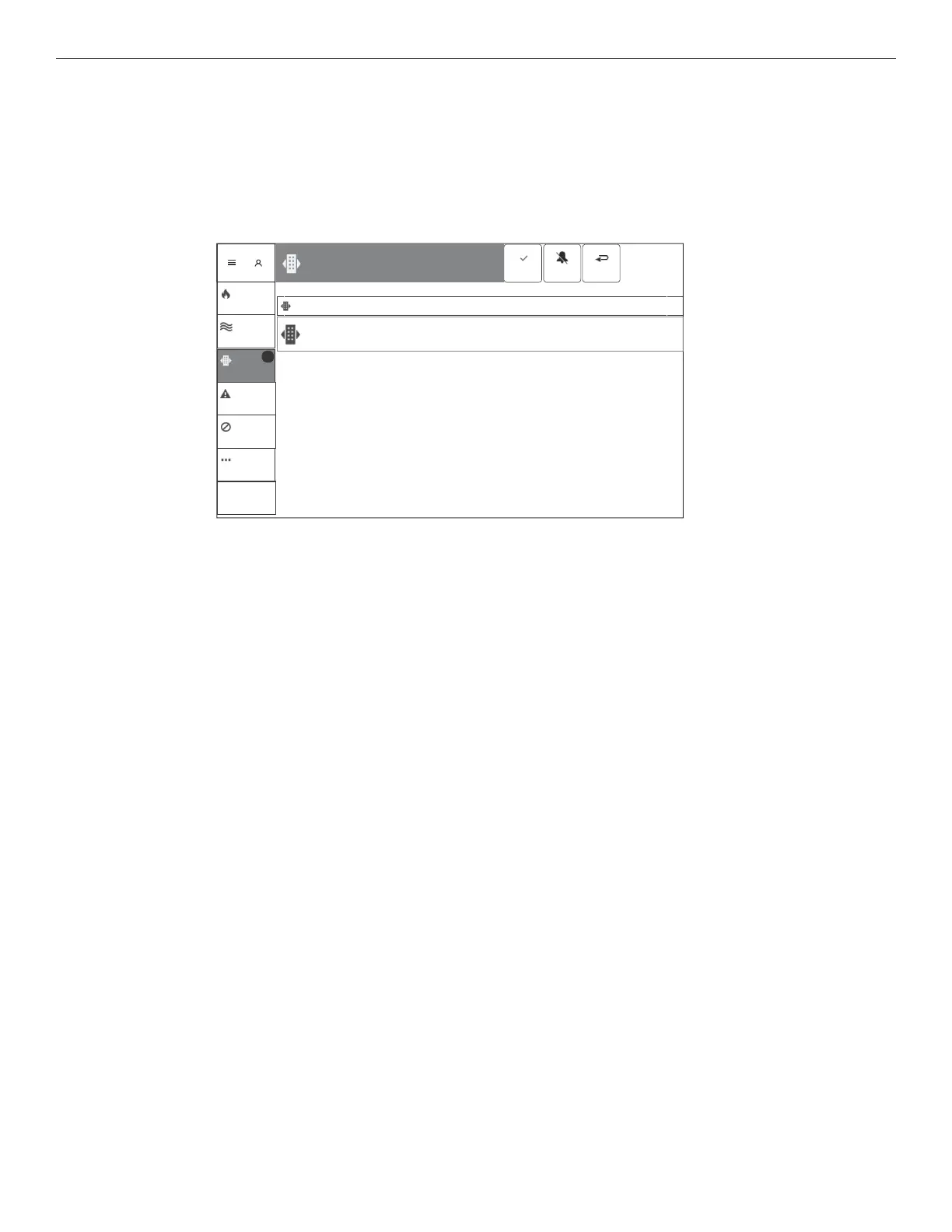

Figure 7 Supervisory Event Screen
