66 N16 Instruction Manual P/N LS10239-000NF-E:A 04/20/2021
Operations Disabled Point
4.10 Disabled Point
Disabled Point Event
• Produces a pulsed audible sound
• Turns on the trouble Relay
•D
ISABLED appears in the Header Bar
•D
ISABLED illuminates in the Alert Bar as a yellow icon and indicated device event count
• Illuminates the yellow off normal LED
•Displays DISABLED and specific point information in the Screen Area
• Displays information on how to react to the event in the Informational Text Area
Responding to a Disabled Point
• The Informational Text Area on the screen will indicate step by step what needs to be done to acknowledge the event.
• Tap on the
ACKNOWLEDGE touchpoint located in the Header Bar. The acknowledge touchpoint will be highlighted in blue. A check
mark will appear next to the acknowledged event.
•
BLOCK ACKNOWLEDGE allows for multiple events to be acknowledged at once.
• Enable the disabled point.
SIGNALS
SILENCED
CO ALARM
TROUBLE
OTHER
DISABLED
DISABLE MON
Thu 02/22/18
1:35:57 PM
NO25L01M023
Step 1 Acknowledge each event. This is secondary text to explain what acknowledging an event means and who should do it.
UNACKNOWLEDGED DISABLES (1)
Ack
SUPERVISORY
Third Floor, Storage Room
FIRE ALARM
DISABLED
DISABLE
1

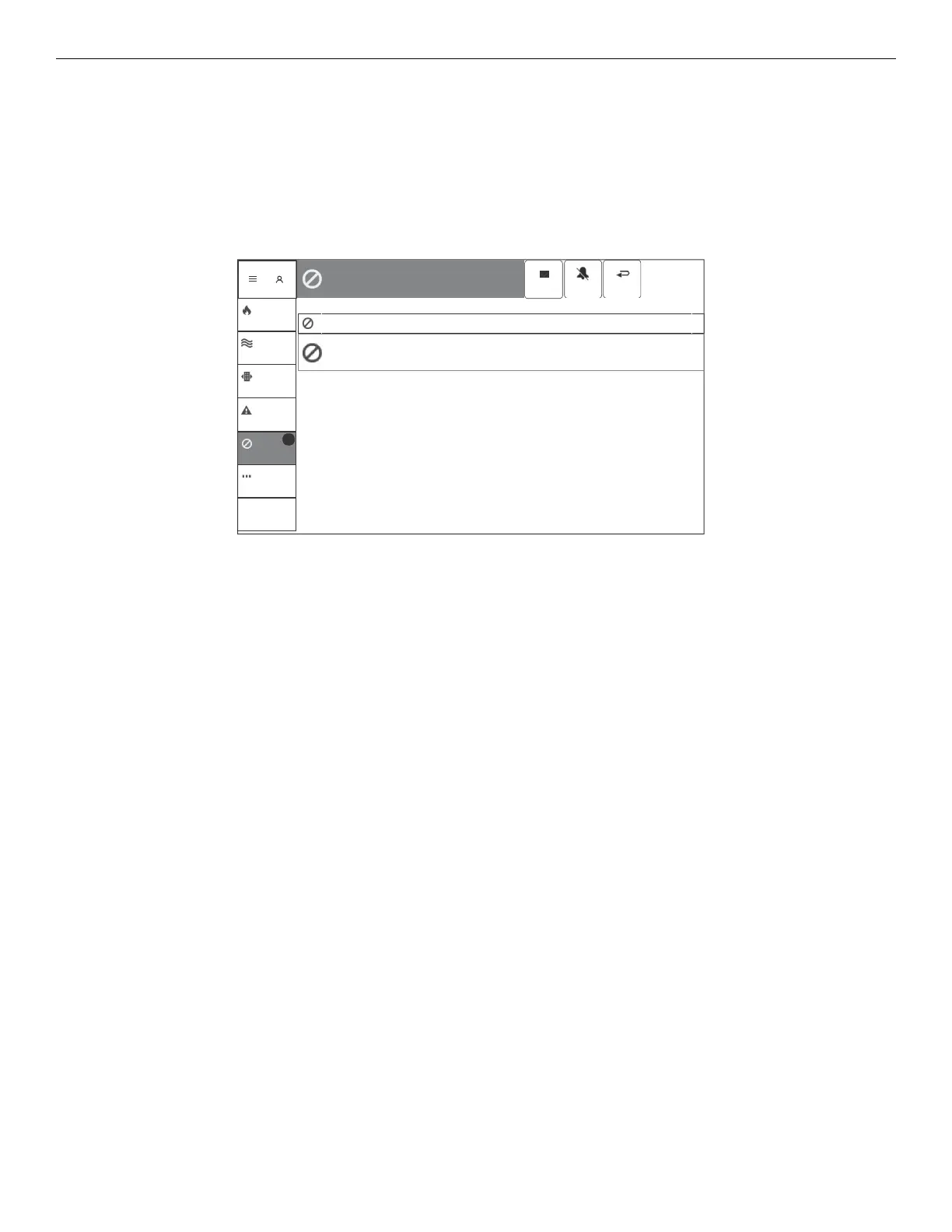

Figure 8 Disabled Point Screen
