PAGE - 28 Installation and operating manual UDS-3
NOTIFIER ITALIA Doc. M-205.1-UDS3N-ENG Rev A.1 UDS-3_manu

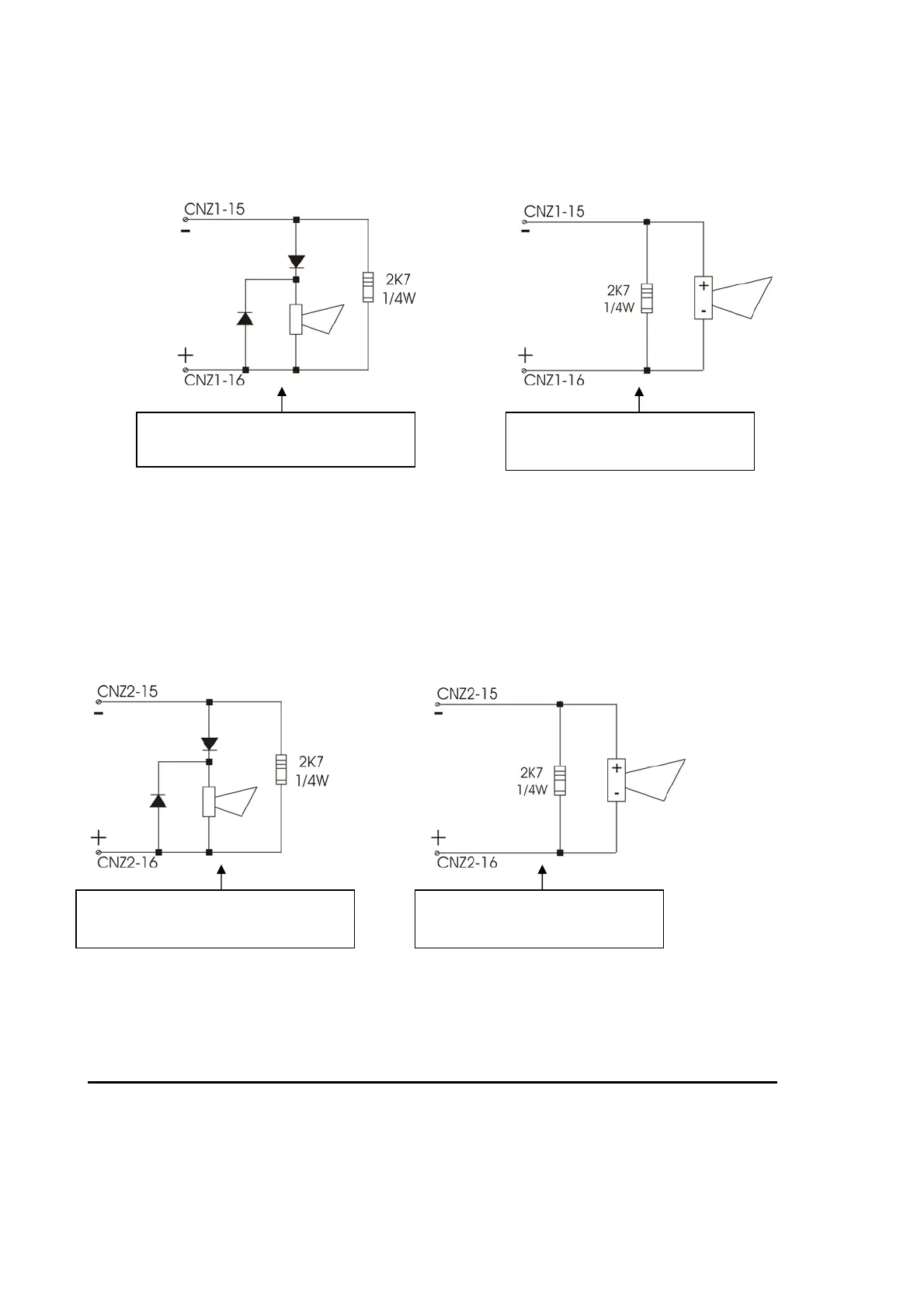

Connection scheme for “Sounder zone 1” output
Connection scheme for “Sounder zone 2” output
N.B.:
polarities shown in terminals are to be referred to Standby condition of UDS-3
Recommended connection for not
polarized sounders.
Recommended connection for
polarized sounders.
Recommended connection for
polarized sounders.
Recommended connection for not
polarized sounders.
