PAGE - 29 Installation and operating manual UDS-3
NOTIFIER ITALIA Doc. M-205.1-UDS3N-ENG Rev A.1 UDS-3_manu

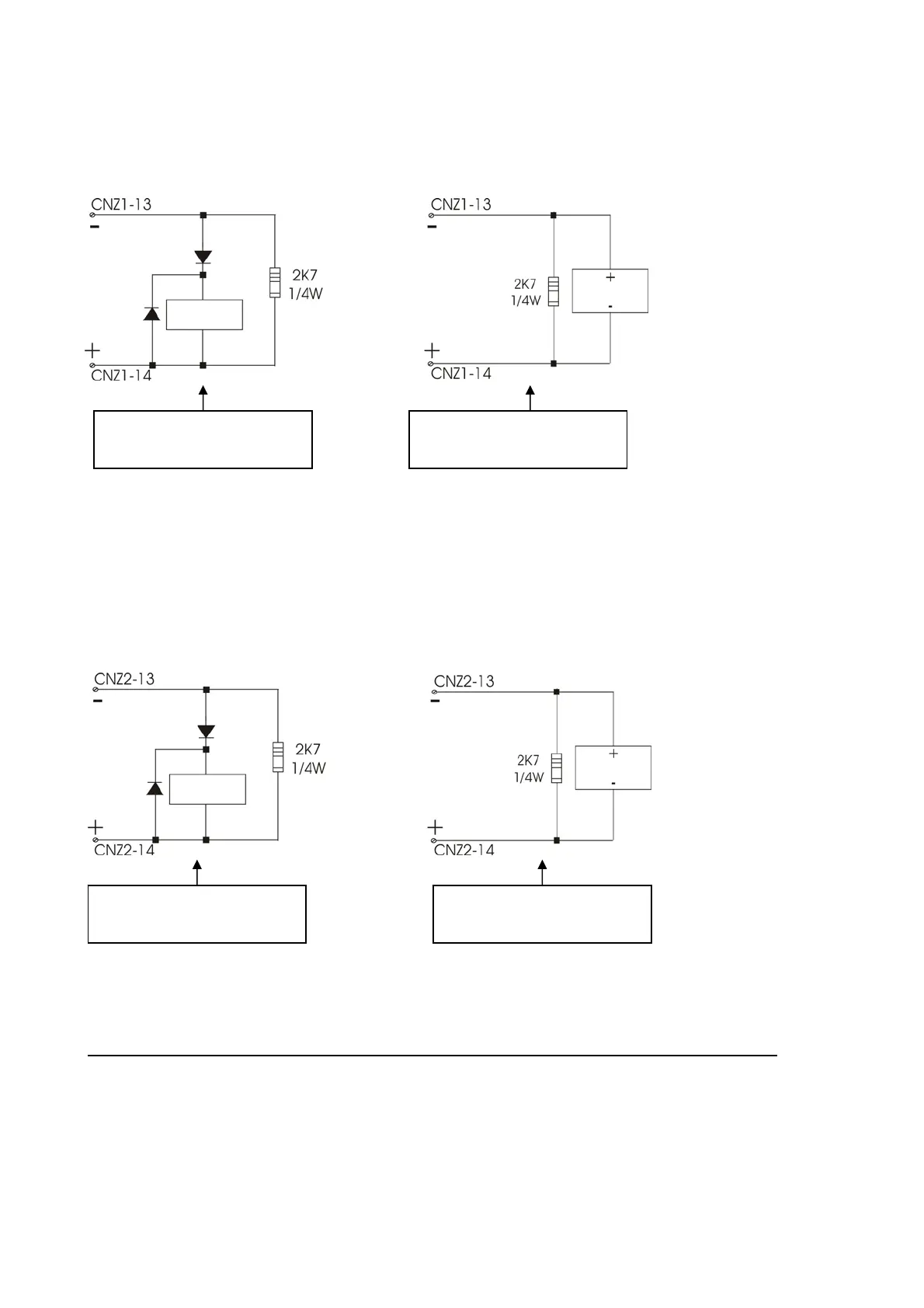

Connection schemes for “Zone1 pre-alarm” output.
Connection schemes for “Zone2 pre-alarm” output.
N.B.:
polarities shown in terminals are to be referred to Standby condition of UDS-3
Recommended connection
for not polarized actuators.
Recommended connection
for polarized actuators.
Recommended connection
for not polarized actuators.
Recommended connection
for polarized actuators.
