PAGE - 33 Installation and operating manual UDS-3
NOTIFIER ITALIA Doc. M-205.1-UDS3N-ENG Rev A.1 UDS-3_manu

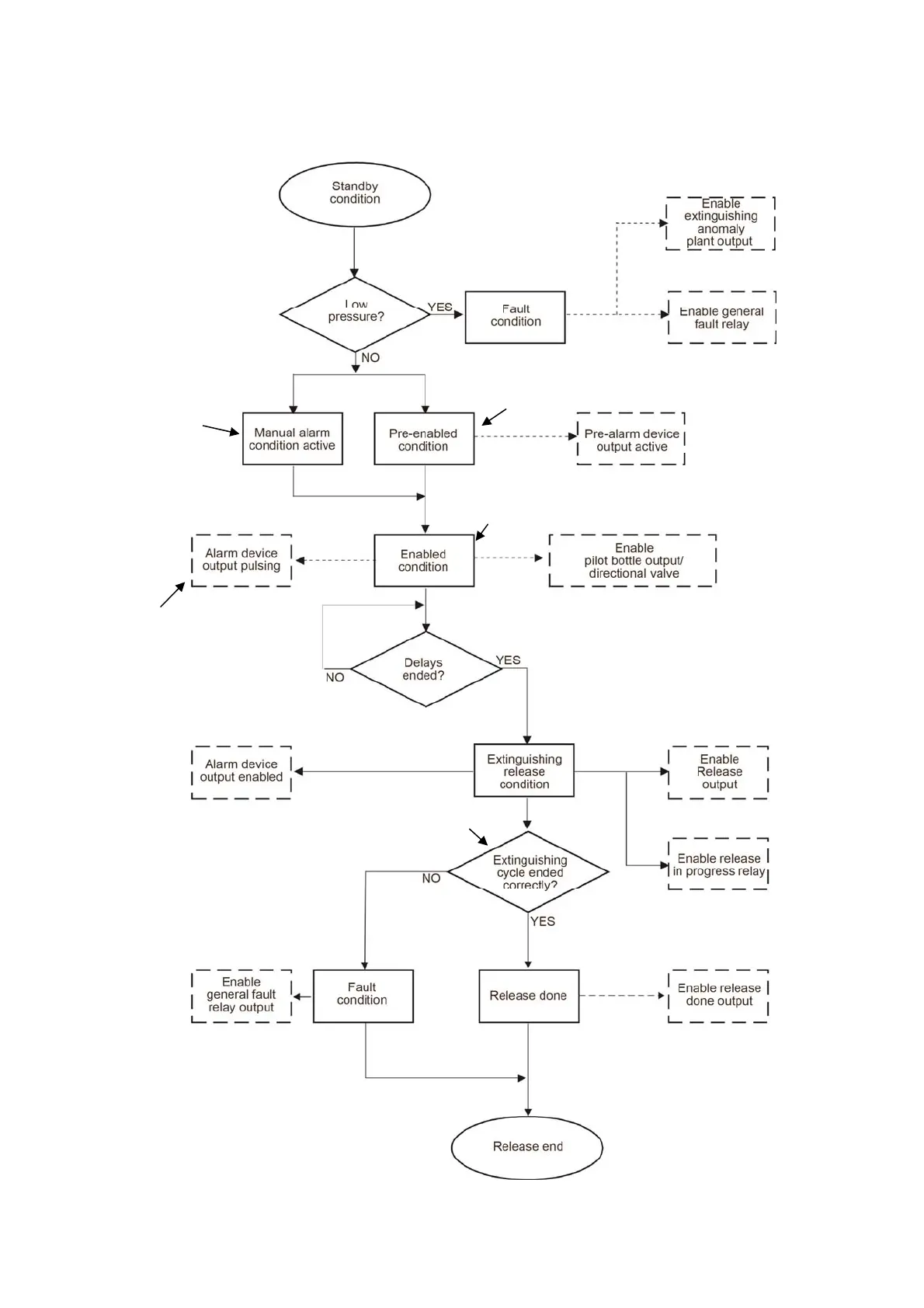

Flowchart of conditions that activate output dedicated to signalling and
release
Pre-activated condition is
bypassed if release condition
is commanded by manual
activation device.
If release is not immediate because a
pre-release time is set or emergency
extension device is active, output will
have a pulsing activation
One input in
alarm zone
Two inputs in the
same alarm zone
To state that release was ok, signals
coming from flowmeter and manostat
are controlled (see p. 32)
To Next Page
