2 ZONE T6R SMART THERMOSTAT
T6R-2Z-EN0H 8603 NL01 R0718
Zone 1 Thermostat powering up, setup and binding

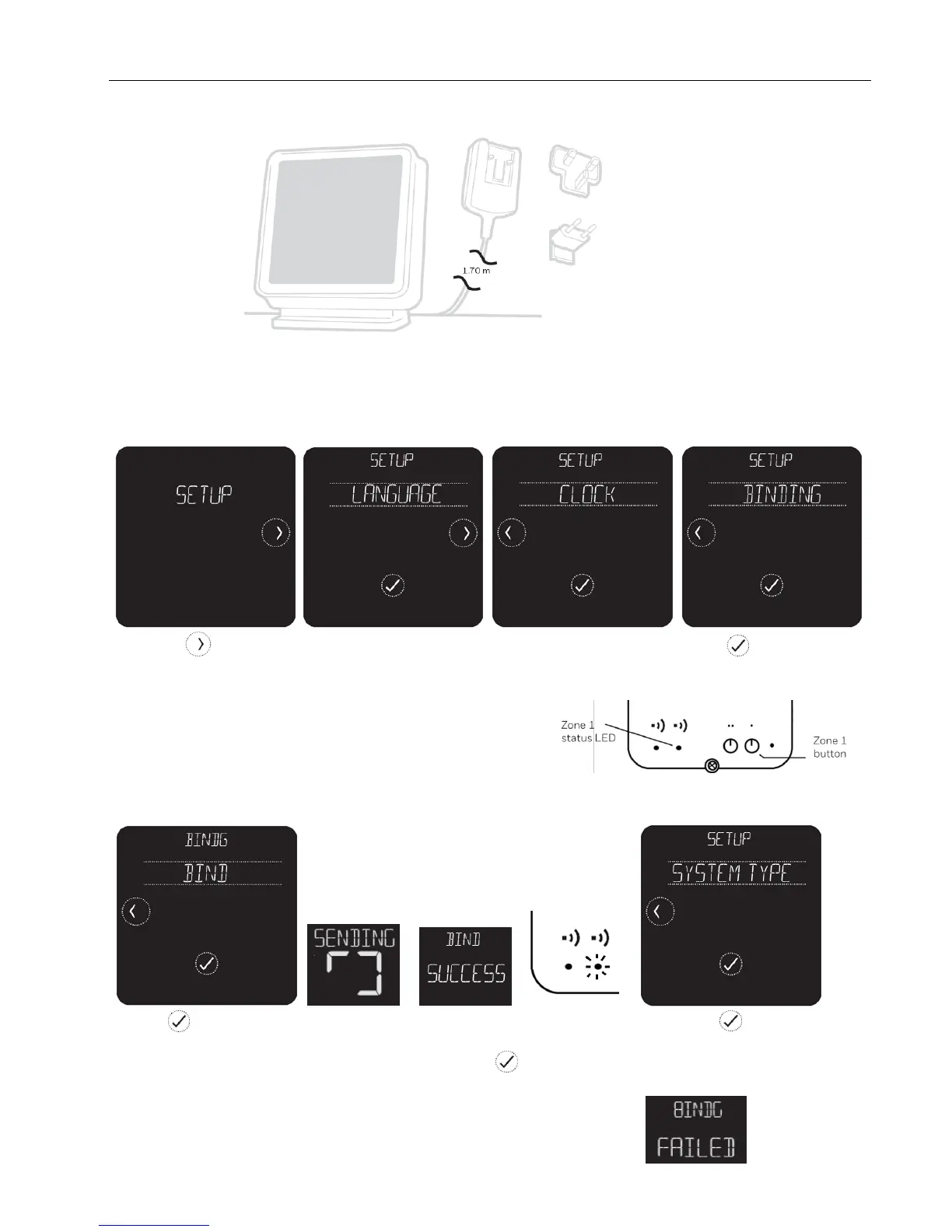

T6R THERMOSTAT SET UP AND BINDING
Both the T6R Smart Thermostats still need to be bound to the 2-channel Receiver box before they can control
the comfort in their zone.
Now place the first zone thermostat near the 2-channel Receiver box and plug-in the adapter.
When SETUP is displayed on the screen of the thermostat, follow the next steps:
Choose the
appropriate plug.
Set clock format, time
and date.
to start binding
with 2-channel Receiver box.
Next put the 2-channel Receiver box into binding mode by
pressing Zone 1 button for 3 sec.
- The first RF LED will flash amber
and the signal
will be sent.
When binding successful:
- thermostat shows SUCCESSS
Zone 1 status LED shows green
touch
When binding is NOT successful:
- Thermostat will show FAILED
- Receiver box will exit binding after 3 min.
RF communication might be too far or is blocked due to wrong location of the
Thermostat or Receiver box. Try to move closer or re-locate and re-bind again.
Note: When the Receiver box has been bound before first press
with a small pin the pinhole for approximately 3 seconds to
reset the binding. All LED’s will flash amber for a moment.
