Honeywell RTH3100C Installation Guide

RTH3100C
11

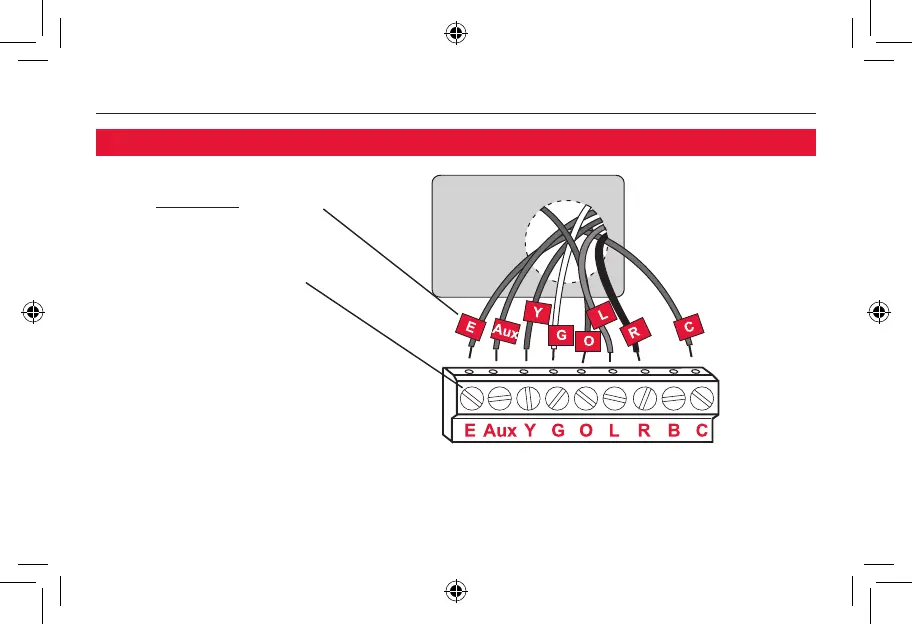

1. Match each labeled wire
with same letter on terminal.
2. Use a screwdriver to
loosen screw terminals,
insert wires, then tighten
screws.
3. Push any excess wire back
into the wall opening.
Labels don’t match?
If labels do not match letters
on thermostat, see next page.
Connect wires (typical installation)
69-1891ES-1-RTH3100C-IG.CS5.indd 11 5/17/2011 11:21:07 AM

Honeywell RTH3100C Specifications

Weight and Dimensions

master carton dimensions	7.25 x 19 x 9.25 in.
master carton weight	4.0 lbs
retail package dimensions	7 x 9 x 2.25 in.
unit weight	0.55 lbs
