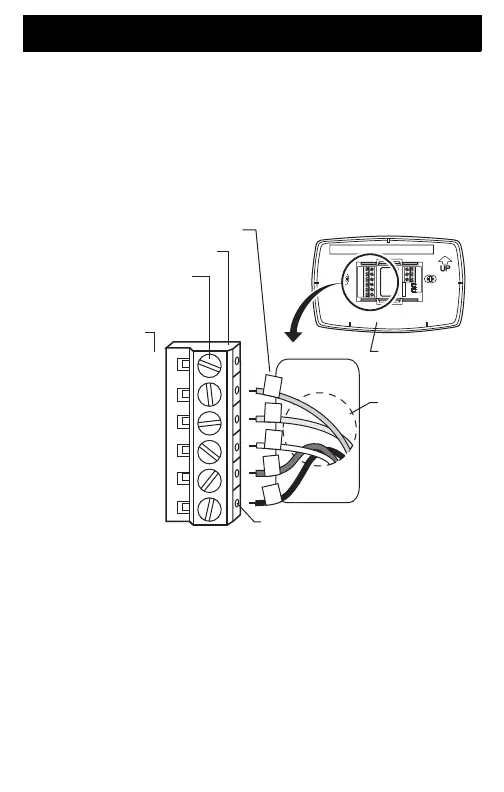

Step 7. Connect Wires to New Wallplate (Cont)
5. Loosen the screw terminals. Insert the labeled
wires into the holes on the side of the terminal block
that match the letter designations. Tighten the
screw terminals.
6. If any of the labeled wires do not match the letter
designations, see next page for wire connections.
M22325
LABELED WIRES
SCREW TERMINALS
TERMINAL BLOCK
CONVENTIONAL
LETTER
DESIGNATIONS
R
RC
Y
G
C
W
INSERT WIRE IN HOLE
WIRE HOLE
Y
G
WALLPLATE
R
C
R
W
