Honeywell RTH7600 Series Installation Instructions

RTH7600
21 69-2206ES—05
About your new thermostat
SETUP WIRING ASSISTANCE TROUBLESHOOTING

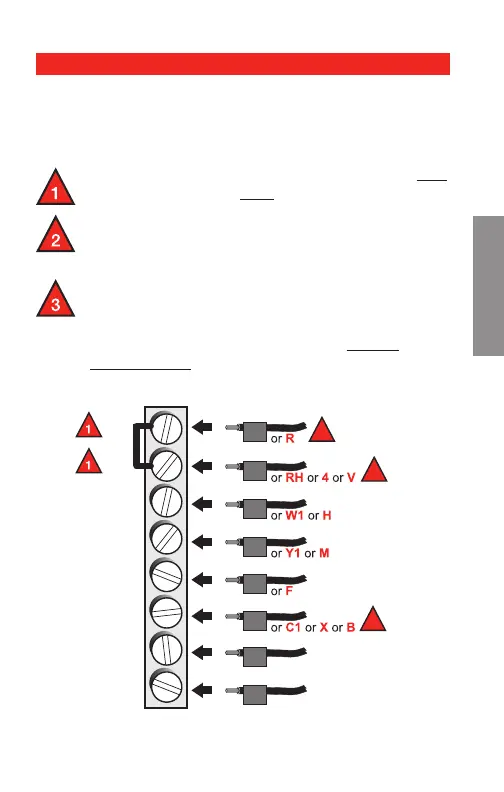

Alternate wiring (conventional systems)
If labels do not match terminals, connect wires as
shown here (see notes, below).
Remove metal jumper connecting R and Rc only
if you must connect both R and Rc wires.
If your old thermostat had both R and RH wires,
remove metal jumper. Connect the R wire to the
Rc terminal, and the RH wire to the R terminal.
If your old thermostat had only 1 C or C1
wire, connect it to the C terminal. If your old
thermostat had 2 C or C1 wires, wrap each
separately with electrical tape and do not
connect them.
RC
R
W
Y
G
C
Y2
W2
Rc
R
W
Y
G
C
Y2
W2
M28076
2
3
2
Wiring—conventional system

Honeywell RTH7600 Series Specifications

General

Programmability	7-day programmable
Temperature Range	40°F to 90°F (4°C to 32°C)
Accuracy	+/- 1°F
Hold Function	Yes
Filter Change Alert	Yes
Power Source	Battery and/or Hardwired
Compatibility	Gas, oil, electric, heat pump systems
Temperature Control	Precise temperature control of +/-1°F
Stages	2 Heat/2 Cool
Display Type	Touchscreen
Weight	6.4 oz (181 g)
