69-2206ES—05 6

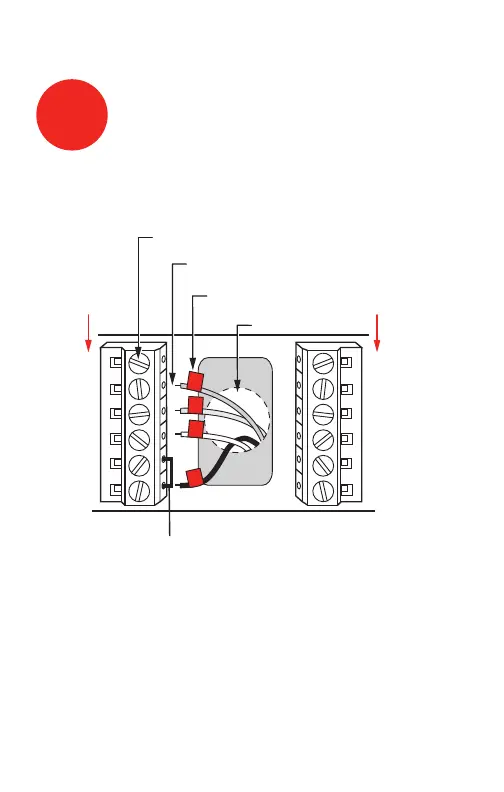

Simply match wire labels.
Remove metal jumper if you have both R and Rc wires.
M28070
W2
Y2
C
G
Y
W
RC
R
LABELED WIRES
SCREW
CONVENTIONAL
INSERT WIRES
THEN TIGHTEN SCREWS
WIRE HOLE
Y
G
R
W
CONVENTIONAL
6
Connect Wires
Labels don’t match? See page 21.
Have a Heat Pump system? See pages 22–23.
We are here to help.
Call 1-800-468-1502 for wiring assistance.

Table of Contents

Other manuals for Honeywell RTH7600 Series

Preview: Quick Start Guide
Quick Start Guide2 pages
Preview: Quick Installation Guide
Quick Installation Guide60 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honeywell RTH7600 Series and is the answer not in the manual?

Honeywell RTH7600 Series Specifications

General IconGeneral
Programmability7-day programmable
Temperature Range40°F to 90°F (4°C to 32°C)
Accuracy+/- 1°F
Hold FunctionYes
Filter Change AlertYes
Power SourceBattery and/or Hardwired
CompatibilityGas, oil, electric, heat pump systems
Temperature ControlPrecise temperature control of +/-1°F
Stages2 Heat/2 Cool
Display TypeTouchscreen
Weight6.4 oz (181 g)
