69-2721-01

Quick Start Guide

Touchscreen Programmable

Thermostat

RTH7600 Series

Installation is Easy

Label wires and remove your old thermostat

Install and wire your new thermostat

Set your new thermostat to match your heating/cooling

system

– This thermostat works with virtually all System

Types

– It is preset for the most common system

We are here to help.

Call 1-800-468-1502 for

wiring assistance before

returning the thermostat to

the store.

Remove old thermostat but leave wallplate with

wires attached.

Remove Old Thermostat

Turn OFF Power to Heating/

Cooling System

50 60 70 80 F

OFF

AUTO EM. HEAT

EM. HEATAUX. HEAT

50 60 70 80

MCR33835

Is there a sealed tube containing

mercury? If so, see back cover for

proper disposal instructions.

Leave wallplate

in place

Old thermostat

Cover

Label the wires using the supplied wire labels as you

disconnect them, then remove the old wallplate.

Label Wires with Tags

Wire Labels

Wire color might not match labels.

M31545

MCR33763

Remove wallplate from the new thermostat.

M28073

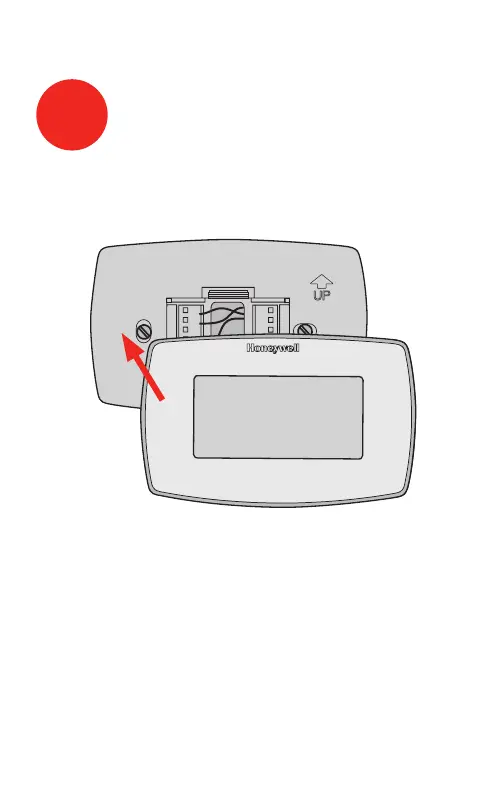

Separate Wallplate from

New Thermostat

Wallplate

Mount the new wallplate using the included screws

and anchors.

Mount Wallplate

MCR28094

Drill 3/16-in. holes for drywall

Drill 3/32-in. holes for plaster

MCR27518

Simply match wire labels.

Remove metal jumper if you have both R and Rc wires.

MCR28070

LABELED WIRES

SCREW

CONVENTIONAL

INSERT WIRES

THEN TIGHTEN SCREWS

WIRE HOLE

CONVENTIONAL

Connect Wires

Labels don’t match? See Wiring Notes (over).

Have a Heat Pump system? See Wiring Notes (over).

Call 1-800-468-1502 for wiring assistance.

Install two AA alkaline batteries and remove tab.

MCR28101

Back of thermostat

Remove tab.

Install Batteries

M27519

Install thermostat onto the wallplate on the wall.

Turn the power back on to the heating/cooling system.

Install Thermostat onto Wallplate

Turn Power Back ON

Go Back

Done

2012

MCR33548

Done

MCR33549

10:10

If your system type is:

q Single Stage Heat and Cool

Congratulations, you’re done!

Thermostat is set with energy saving schedule; see operating

manual to adjust schedule.

See step 12b for thermostat preferences.

If your system type is:

q Multistage Heat and Cool

q Heat Pump* without Backup Heat

q Heat Pump* with Backup Heat

q Heat Only or Cool Only

Continue to step 12a to match your thermostat to your

system type.

*Heat Pump—an air conditioner that provides cooling in the

summer, and also runs in reverse in the winter to provide

heating.

This thermostat works on 24 volt or 750 mV systems. It will

NOT work on 120/240 Volt systems.

If your system type is...

Month Year Day

Set Time and Date

Press s or t to set month, then press NEXT.

Press s or t to set day, then press NEXT.

Press s or t to set year, then press DONE.

Press s or t to set time, then press DONE to save and

exit.

Honeywell International Inc.

1985 Douglas Drive North

Golden Valley, MN 55422

http://yourhome.honeywell.com

® U.S. Registered Trademark.

69-2721—01 M.S. 05-12

Printed in U.S.A.

Automation and Control Solutions

MERCURY NOTICE: Do not place your old

thermostat in the trash if it contains mercury in a

sealed tube. Contact the Thermostat Recycling

Corporation at www.thermostat-recycle.org or 800-

238-8192 for information on how and where to

properly and safely dispose of your old thermostat.

CAUTION: To avoid possible compressor damage,

do not run air conditioner if the outside temperature

drops below 50°F (10°C).

This thermostat contains a Lithium battery which

may contain Perchlorate material.

Perchlorate Material—special handling may apply,

See www.dtsc.ca.gov/hazardouswaste/perchlorate

If you are not sure of your system type or if you have

other questions, call us toll-free at 1-800-468-1502.
