S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS
66-1203—05 2
Dimensions:
See Fig. 1.

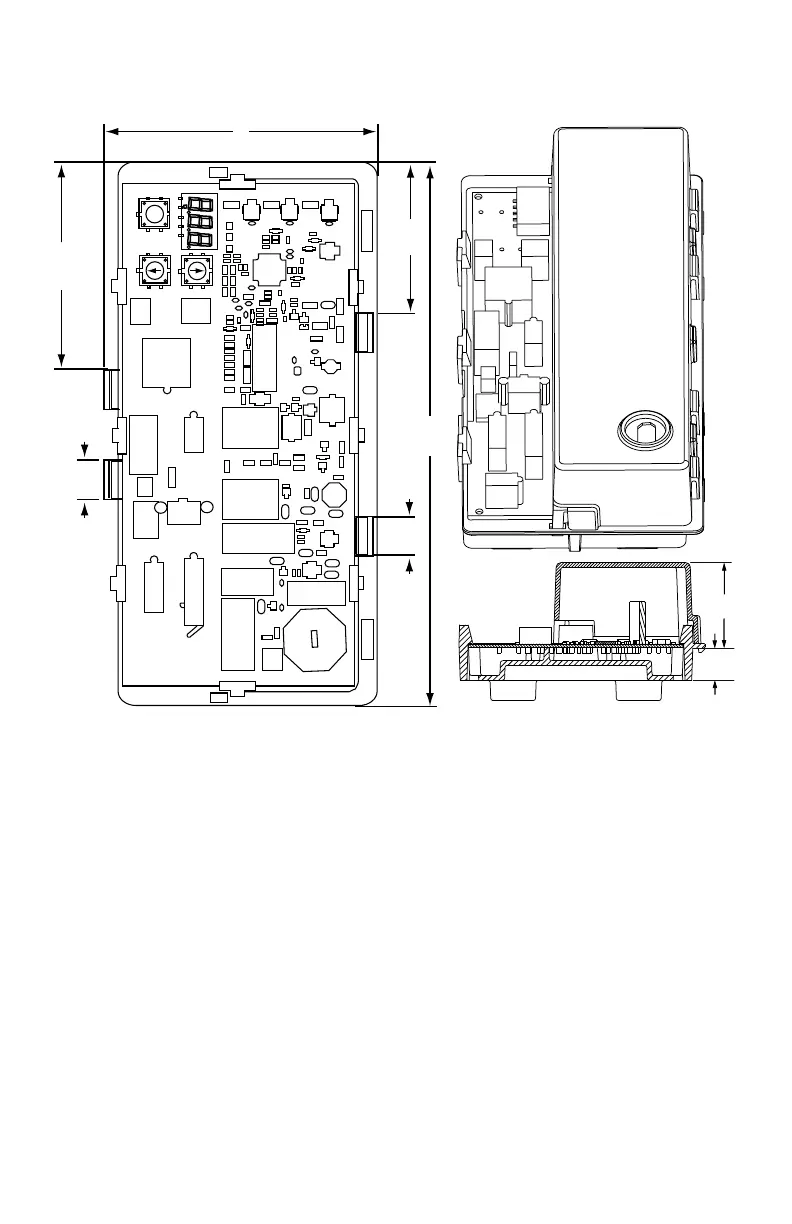

Fig. 1. S936X Integrated Boiler Controller, dimensions in in. (mm).
Electrical Ratings:
Line Voltage: 120 Vac, 60 Hz.
Transformer:
Nominal 24 Vac (maximum 30 Vac, minimum 18 Vac).
5.0 VA plus external loads (gas valve, vent damper, etc.)
On/Off Circulator:
Full Load: 7.4A at 120 Vac (0.75 to 0.8 power factor
[PF]).
Locked Rotor: 44.4A at 120 Vac (0.4 to 0.5 PF).
Inducer (Optional):
Full Load: 6A at 120 Vac (0.75 to 0.8 PF).
Locked Rotor: 17.48A at 120 Vac (0.4 to 0.5 PF).
Vent Damper (Optional):
Full Load: 0.5A at 24 Vac.
In Rush: 1A at 24 Vac.
Main Valve:
Full Load: 2A at 24 Vac (0.5 to 0.6 PF).
In Rush: 6A at 24 Vac (0.5 to 0.6 PF)
Pilot Valve (Optional):
Full Load: 2A at 24 Vac (0.5 to 0.6 PF)
In Rush: 6A at 24 Vac (0.5 to 0.6 PF).
Ambient Ratings:
Humidity: 0 to 95 percent relative humidity,
noncondensing.
Operating Ambient Temperature: -4°F to +150°F.
Shipping Ambient Temperature: -40°F to +175°F.
Flame Monitoring (May vary by model):
Flame Establishing Period (FEP): Maximum 2 seconds.
Flame Failure Response Time (FFRT):
Maximum: 2 seconds @ 1 μA.
Flame Stabilization Time: 4 seconds. Time from ignit-
ing the main burner and detecting loss of flame (the
flame current is allowed to be under the flame lost
threshold for this time while waiting for burner to
stabilize).
Flame Lost Threshold: 0.23 μA.
Accessories (Ordered Separately)
W8735Y1000 Wireless Outdoor Reset Kit
W873ER1000 Wireless Outdoor Reset Module
C7089R1013 Wireless Outdoor Temperature Sensor
(requires W8735ER1000)
W8735S1000 AquaReset™ Outdoor Reset Kit (includes
50022037-002 Outdoor Reset Module and
C7089U1006 Outdoor Temperature Sensor)
W8735S1008 AquaReset™ Domestic Hot Water Kit
(includes 50022037-005 Domestic Hot Water Module
and 32003971-003 Sensor)
C7089U1006 Outdoor Temperature Sensor (used with the
50022037-002)
32003971-003 Temperature Sensor (used with
50022037-005)
Sensor (See Table 2).
Sensor Well Clamp 121371AA.
1-3/8
(35)
5/8
(16)
M24217
2 x 84.5
2 x 15
2 x 61
220.5
111
2 x 15
I
