Sensepoint XCD RFD Technical Manual SPXCDHMRFENU Issue 1

1. Remove the transmitter housing cover and detach the display unit by lifting the semi-

circular handle and pulling the assembly directly away from the termination module

(without twisting it)

2. Configure the detector's analogue output signal configuration for Current SINK or

Current SOURCE operation using the selector switch located on the back of the

display module. The default setting is Current SOURCE.

3. Check that all electrical connections are terminated correctly as per section 6.

4. Switch On the external power supply to the transmitter at the safe area gas detection

controller (or PLC).

5. Using a Digital Multi Meter (DMM), check the Supply Voltage at the terminals 1 (24V)

and 2 (0V), this should be a minimum supply voltage of 16Vdc (Maximum supply

voltage is 32V DC)

6. Switch Off the external power to the detector.

7. Ret the Display Module and Cover.

Note: Ensure that none of the wires in the terminal area cause an obstruction when

retting the Display Module. Ensure that the socket on the Display Module is fully engaged

in the Display Module Connector on the Terminal Module.

8. Switch On external power to the detector.

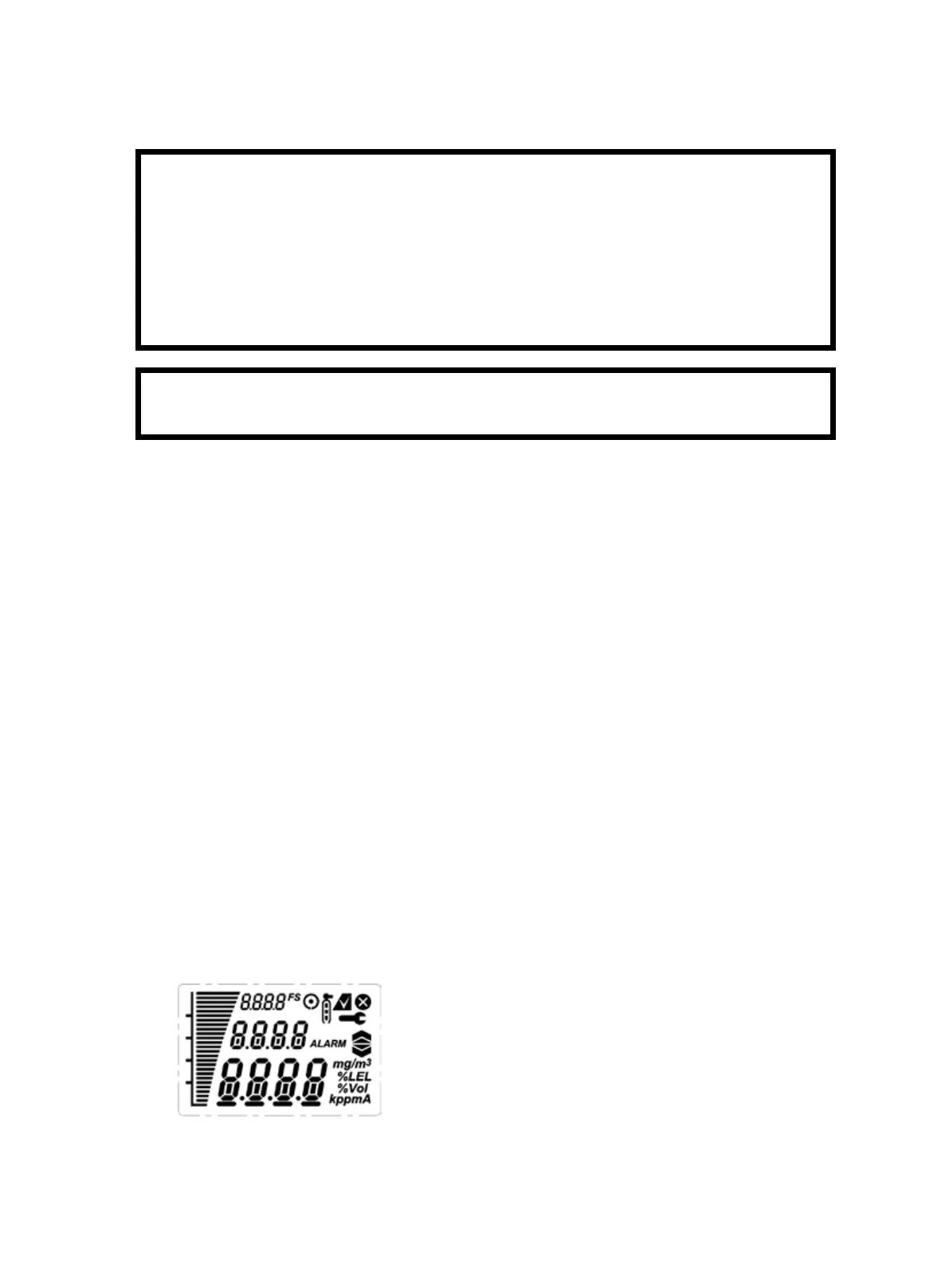

9. All the display icons/text/numbers are displayed for 3 seconds.

10. A start up sequence will then be displayed, similar to the one shown in Diagram 15.

Note: Calibration is mandatory before the detector can be used for gas monitoring. Refer

to Section 10.1 Calibration for the proper procedure.

9 First time switch on (Commissioning)

WARNING

The following procedure requires the Transmitter Cover to be removed while carrying out

supply voltage checks. Therefore the appropriate permits to work should be sought in

preparation.

Prior to carrying out any HOT WORK ensure local and site procedures are followed.

Ensure that the associated control panel output actuation is inhibited so as to prevent false

alarms.

Caution: The following procedure should be followed carefully and only performed by

suitably trained personnel
