38 SWIFT® Smart Wireless Integrated Fire Technology Manual — P/N LS10036-000SK-E:G 4/13/2020
Section 4: W-SYNC Wireless Synchronization Module
4.1 Description
The wireless synchronization module works with wireless AV bases to provide audio and visual synchronization of a wireless notifica-
tion appliance to a wired notification appliance. Synchronization is only available with notification appliances that use the System Sen-
sor synchronization protocol. The W-SYNC also provides wireless control and monitoring of a Notification Appliance Circuit (NAC)
expander or power supply. It does not support the “whoop” pattern.
The wireless synchronization module operates from 24VDC power with supplemental battery support. A trouble will be generated at the
panel if batteries are not installed or at a low battery level. Synchronization is not available during supplemental battery operation. For
more information on the W-SYNC, refer to Document I56-6518 that ships with the product.
4.2 Wiring
The W-SYNC may be wired to compatible FACPs using an MDL3 Sync Module or the HPFF8/HPFF12 NAC Expanders. The synchro-
nized output wiring must be contained in the common enclosure of modules or wired in conduit in enclosures mounted within 20 feet of
each other in the same room with wiring in conduit.
When Class A zones are used, power supply wiring must be contained in the common enclosure with the W-SYNC, or the power supply
and W-SYNC must be in enclosures within 20 feet of each other in the same room with wiring in conduit.
4.2.1 FACP

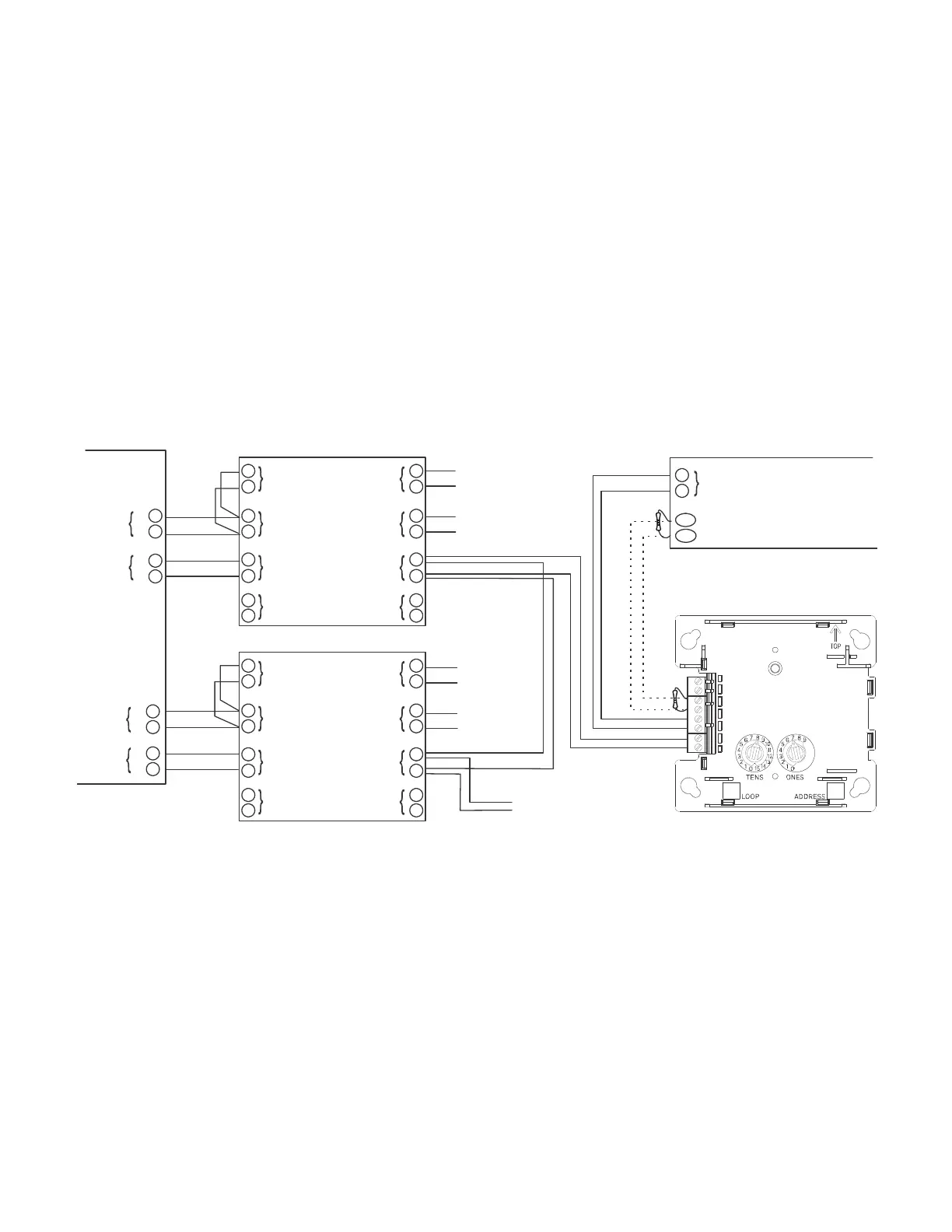

Wire the W-SYNC to the FACP as shown below.
ZONE 1
OUT
NAC 1
NAC 3
NAC 2
HORN
CONTOL
+
C
+
+
+
+
+
+
B+
B+
B+
A+
-
-
-
-
B-
B-
B-
A-
-
NC
-
-
-
-
+
+
ZONE 2
OUT
ZONE 1
IN
24VDC
NAC
SLAVE IN
ZONE 2
IN
SLAVE
OUT
SLAVE
IN
+
+
-
-
-
-
+
+
ZONE 1
OUT
HORN
CONTOL
+
+
-
-
-
-
+
+
ZONE 2
OUT
ZONE 1
IN
NAC
SLAVE IN
ZONE 2
IN
SLAVE
OUT
SLAVE
IN
+
+
-
-
-
-
+
+
Regulated, UL-Listed power
supply evaluated for life safety
Trouble Contacts
(if provided)
ELR*
ELR*
to next device or EOL
to next device or EOL
2 Class B (Style Y) Zones
1 Class A
(Style Z) Zone
to next device
to next device
MDL3
MDL3
Slave
Slave
to next MDL3’s NAC
SLAVE IN terminals
(4 MDL3 modules
to next MDL3’s NAC
SLAVE IN terminals
(4 MDL3 modules max.)
W-SYNC
synchronized output
Class B
(Style Y)
NACs
Class A
(Style Z)
NACs
*Note: If the power supply has trouble
contacts to be monitored, install 3.9K
Ω
ELR
supplied with W-SYNC on the power supply.
If not, install 3.9K
Ω
ELR on W-SYNC.
Figure 4.1 W-SYNC Wiring to FACP
