Honeywell STDW810 - 3 Smartline Wireless Transmitter General Description; Intended Used; Smartline Wireless Transmitter; Figure 3-1 Smartline Wireless Pressure Transmitter Showing 4 Dbi Integral Antenna

3. SmartLine Wireless Transmitter General Description
3.1. Intended Used
Revision 1 SmartLine Wireless Transmitter Professional Installation Guide 7
3. SmartLine Wireless Transmitter General Description
3.1 Intended Used
The SmartLine Wireless Transmitter is a key component of the Honeywell OneWireless
Network. The SmartLine Wireless Transmitter uses a low-powered ISA100 2.4 GHz radio to
communicate with Radio Infrastructure and Gateway devices that are connected to a wired DCS
network.
3.2 SmartLine Wireless Transmitter

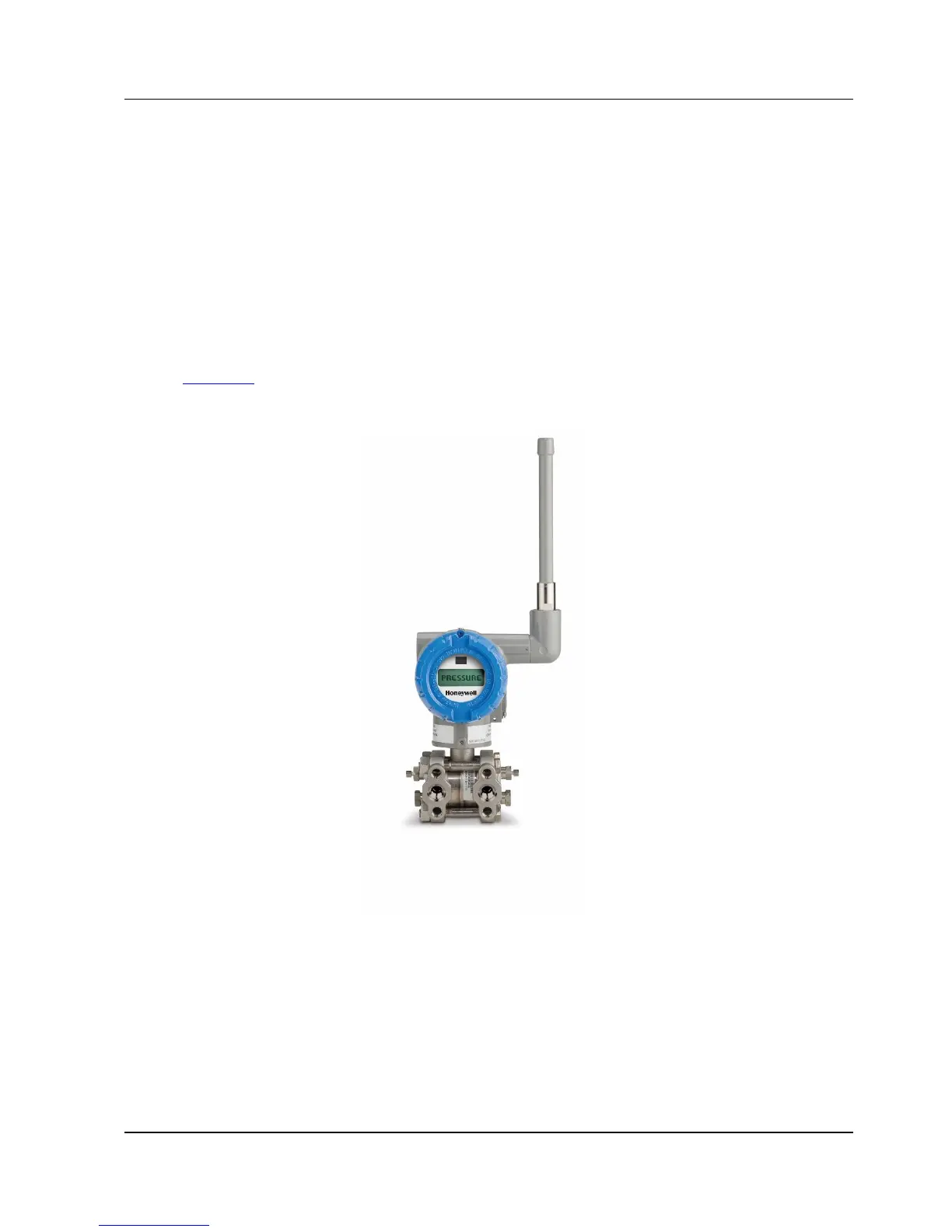

Figure 3-1 shows the SmartLine Wireless Transmitter with integral antenna.
Figure 3-1 SmartLine Wireless Pressure Transmitter showing 4 dBi Integral Antenna
