Thermostat literature
Read before installing
Compatibility
Compatible with most heating, cooling, and heat pump systems
Required: 24 VAC power (“C” wire)
Input: 24 V ~ @ 60 Hz, 1 A
Does not work with electric baseboard heat (120V-240V)
Does not work with millivolt systems
Android or iOS smartphone or tablet
Customer assistance
WEB customer.resideo.com
PHONE 1-800-633-3991
UWP Mounting System installation

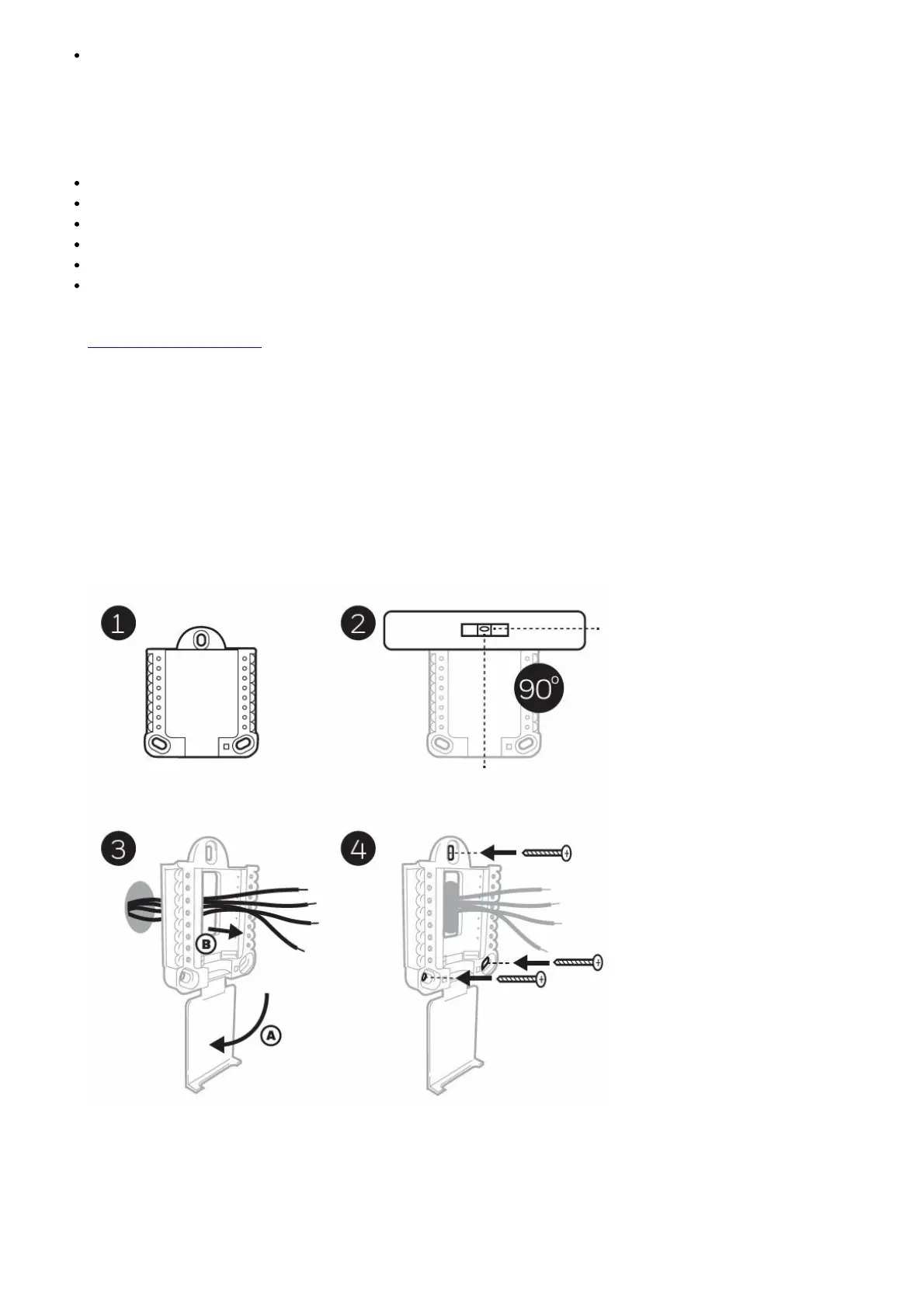

1. Open package to find the UWP. See Figure 1.
2. Position the UWP on the wall. Level and mark hole positions. See Figure 2. Drill holes at marked positions, and
then lightly tap supplied wall anchors into wall using a hammer. ‒ If your box contains red anchors, drill 7/32”
(5.6 mm) holes for drywall. If your box contains yellow anchors, drill 3/16” (4.8 mm) holes for drywall.
3. Pull the door open and insert wires through wiring hole of the UWP. See Figure 3.
4. Place the UWP over the wall anchors. Insert and tighten mounting screws supplied with the UWP. Do not
overtighten. Tighten until the UWP no longer moves. Close the door. See Figure 4.
Optional Decorative Cover Plate installation
Use the Optional Cover Plate when you need to cover paint gap from the old thermostat. There are different cover
plates depending on when the thermostat was manufactured. One plate is square, the other is rectangular.
1. Separate the cover plate from the mounting plate. See Figure 1.
To Next Page
