T8611G CHRONOTHERM
®
IV DELUXE PROGRAMMABLE HEAT PUMP THERMOSTAT
68-0165—1
23
WIRING DIAGRAM (FIG. 15 AND 16)

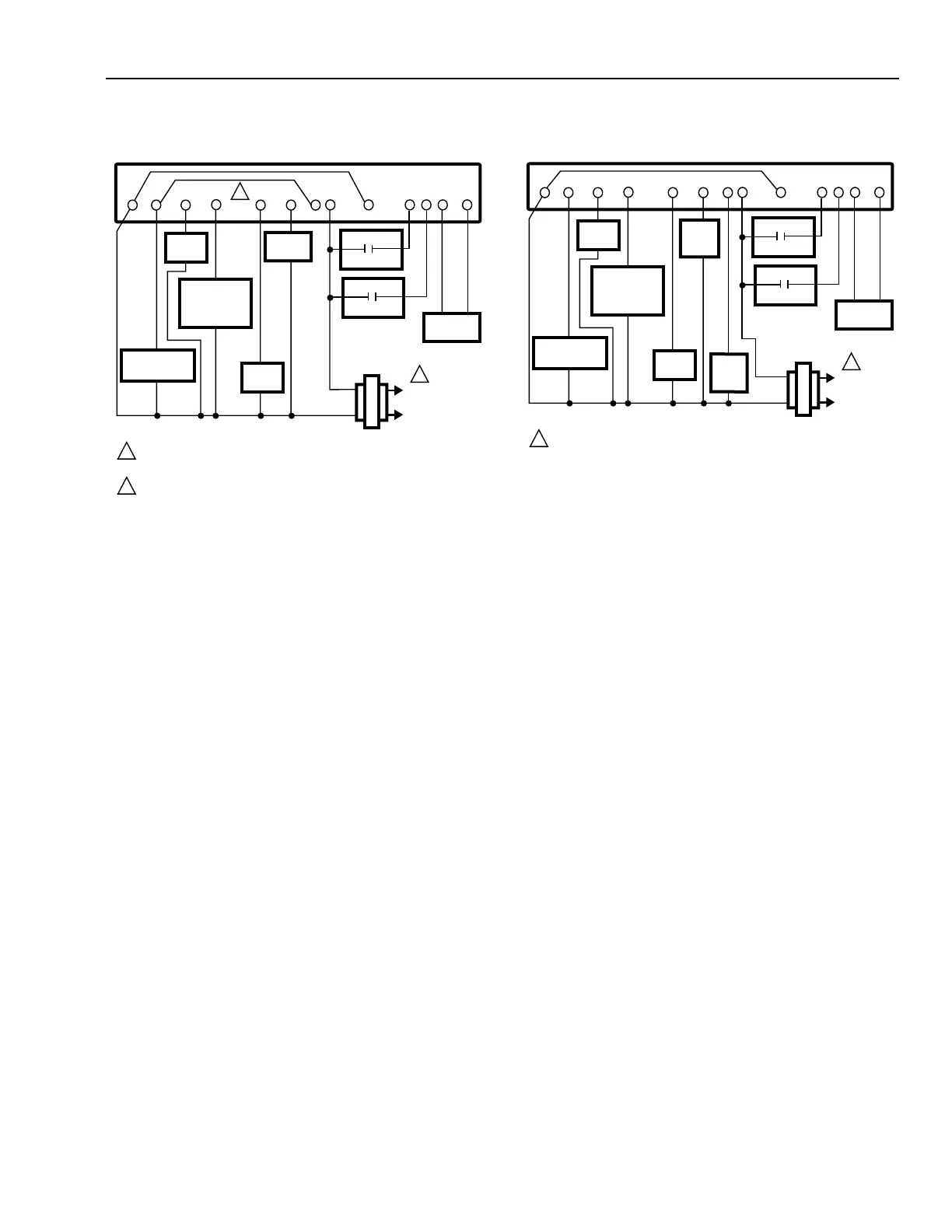

Fig. 15. Typical hookup of T8611G .
Fig. 16. Typical hookup of T8611G with isolated stage-one
heating and cooling connections.
W2
L1
(HOT)
L2
M11311
FAN
RELAY
Y1 G E
THERMOSTAT
C
HEAT
RELAY
1
RW1
COMPRESSOR
CONTACTOR
EM. HT.
RELAY
TRANSFORMER
HEAT
RELAY
2
OT OT
OUTDOOR
SENSOR
COOLING OR
HEATING
CHANGEOVER
VALVE
O/B
X2 LX1
EQUIPMENT
MONITOR 2
EQUIPMENT
MONITOR 1
1
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD
PROTECTION AS REQUIRED.
1
W2
L1
(HOT)
L2
M10823
FAN
RELAY
Y1 G E
THERMOSTAT
C RW1
COMPRESSOR
CONTACTOR
EM. HT.
RELAY
TRANSFORMER
HEAT
RELAY 2
OT OT
OUTDOOR
SENSOR
COOLING OR
HEATING
CHANGEOVER
VALVE
O/B
X2 LX1
EQUIPMENT
MONITOR 2
EQUIPMENT
MONITOR 1
1
2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD
PROTECTION AS REQUIRED.
FACTORY INSTALLED JUMPER.
1
2
