Table 5. Typical Heating Cycle Rate Settings.
Backlight Option
The T8635L has a backlight that is activated:
— on-demand: the thermostat is pre-set to turn on the
backlight when any key is pressed.
— continuously: set Installer Setup No. 44 to 1 for
applications where the display is difficult to read due
to poor lighting conditions.
Advanced Settings
These settings are automatically configured during Dis-
covery and should not be changed when using the
T8635L with the W8635A or W8635B EIM.
The advanced settings, see Table 7, are not available to
view or change when the ADV setting is set to Off.
When ADV is set to Off, press to scroll to the
beginning of the Installer Setup selections.
NOTE: If any of the settings in ADV are inadvertently
changed, press Enter and run Discovery mode
to reset the settings to the original selection.
ENTERING INSTALLER SETUP
To enter Installer Setup:
— simultaneously press and hold the , ▲ and ▼ keys
until Installer Setup No. 1 is displayed.
— all display segments appear for approximately three
seconds before Installer Setup No.1 is displayed.
— see Fig. 15 and 16.

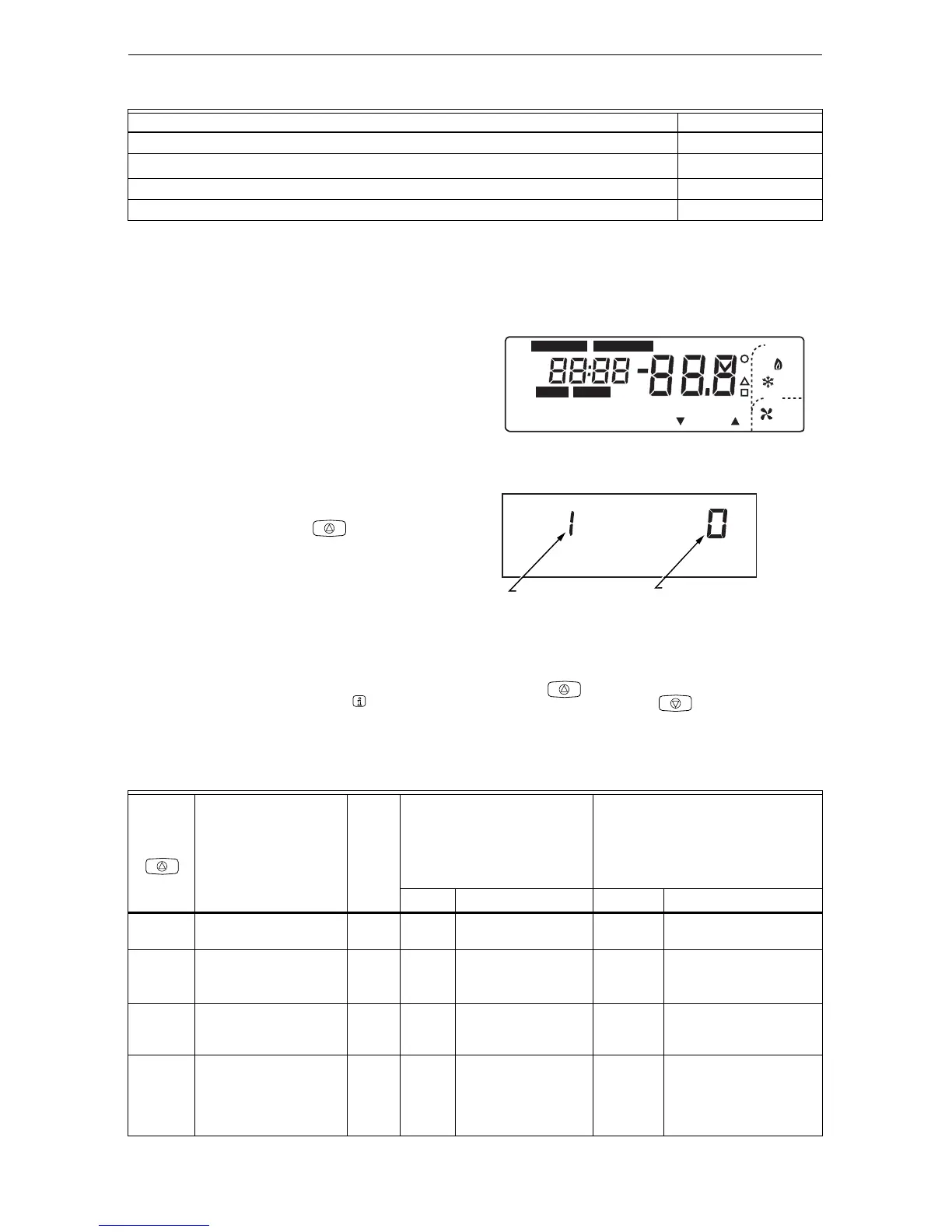

Fig. 15. LCD segments display.
Fig. 16. Installer Setup number and setting display.
1. To advance to the next Installer Setup No., press
the key.
2. To go back, press the key.
3. To change an Installer Setup, use the ▲ or ▼ key.
4. To exit Installer Setup, press Run Program key.
System Cycles Per Hour
Steam, Gravity 1
Hydronic Heat, Condensing Gas Furnaces
a
, Compressor Stages
a
High efficiency furnace (90+).
3
Gas or Oil Forced Air, Auxiliary Heat 6
Electric Heat, Emergency Heat 9
M14559
Aux Ht
Set Day/TimeSet Program
Mon
Wake Leave Return Sleep
OutdoorRoom
Filter
Wait
System
Fan
Em Hea
t
On
Auto
Of
f
Coo
l
Auto
AM
PM
Hold for
Heat
Cool
Repl Batt
Recovery
DST
Tue Wed Thu Fri Sat Sun
Days
Temporary Setting
Em Ht
M13376
INSTALLER SETUP
NUMBER DISPLAY
(COLUMN 1 OF TABLE 5)
FACTORY SETTING OR OTHER
CHOICE DISPLAY (COLUMN 4
OR 5 OF TABLE 5)
Table 6. Installer Setup Numbers and Default Settings and Options.
Installer
Setup
Number
(Press
key to
change) Description Scope
Default Setting
Other Options (Press ▲ or
▼ key to change
Display Description Display Description
1 Zone number Local 0 No zoning. 1 to 9 Zone numbers can be set
to zones 1 through 9.
LOC Lock/Unlock the system
to Automatic Discovery
mode
a
Global LOC
off.
Automatic Discovery
mode occurs.
LOC on Automatic Discovery
mode does not occur.
dIS Runs Automatic
Discovery mode.
Global dIS Press the ▲ key to
start Automatic
Discovery mode.
——
4 Fan operation (only
when used with
W8635A).
Global 0 Conventional
applications where
equipment controls
fan operation in heat
mode.
1 Electric heat applications
where thermostat
controls fan operation in
heat mode.
