Honeywell TB3 Series User Manual

TB3 SERIES COMMUNICATING THERMOSTATS INSTALLATION INSTRUCTIONS
5 31-00576-01

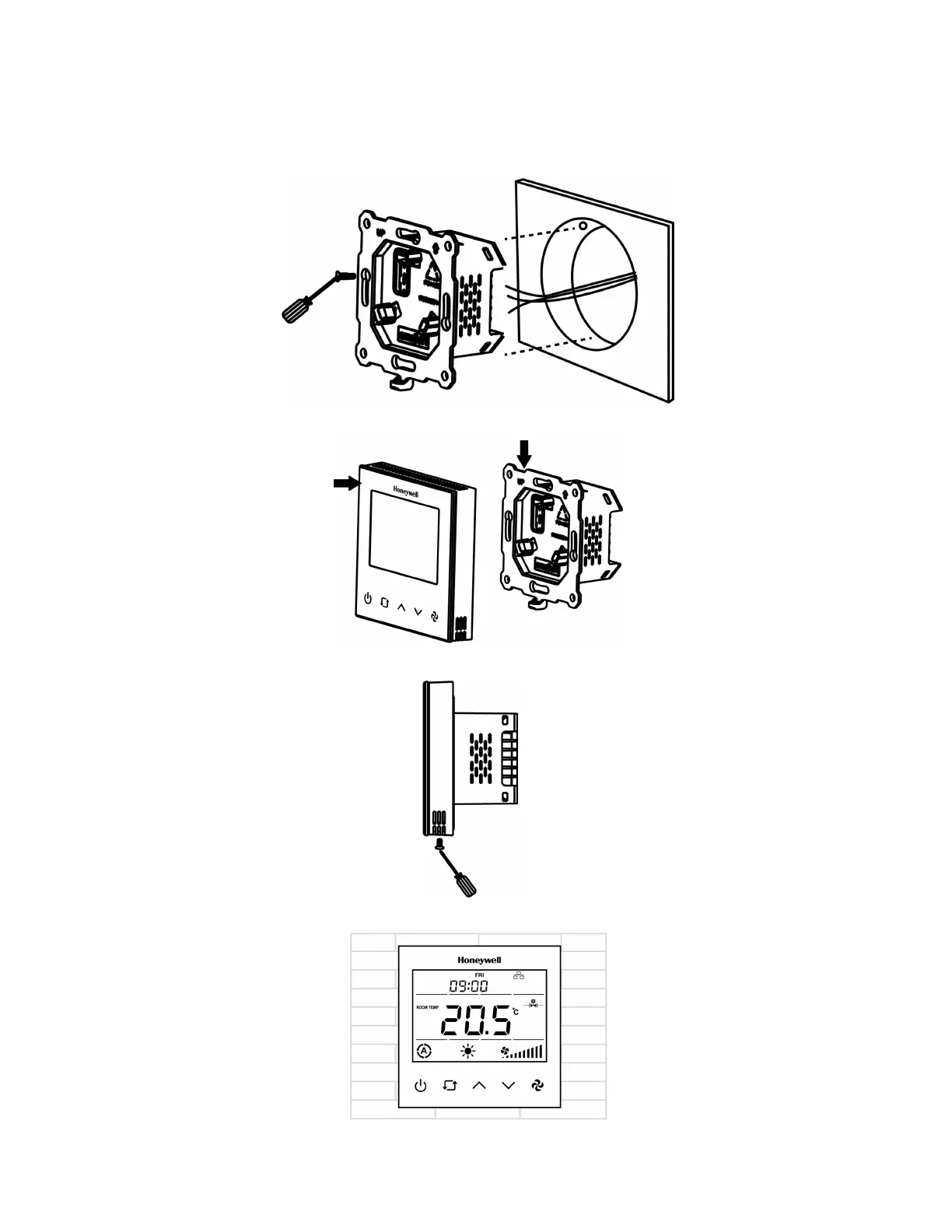

4. Pull the power cable and communication cables through the wall box.
5. Connect the wires well according to the wiring diagram. Refer to Wiring Connection on page 6.
6. Fix the base with four screws to the wall box.
7. Attach the front plate to the back plate, making sure the pin plates on each side are well matched.
8. Tighten the bottom screw to fix the front panel and base.
9. Switch ON the power supply to start the TB3 wall module.
