Honeywell Tema-Voyager Multi VMC-02WENN1 - Reader Configuration and Settings; Reader Position Wiring Schematics

26

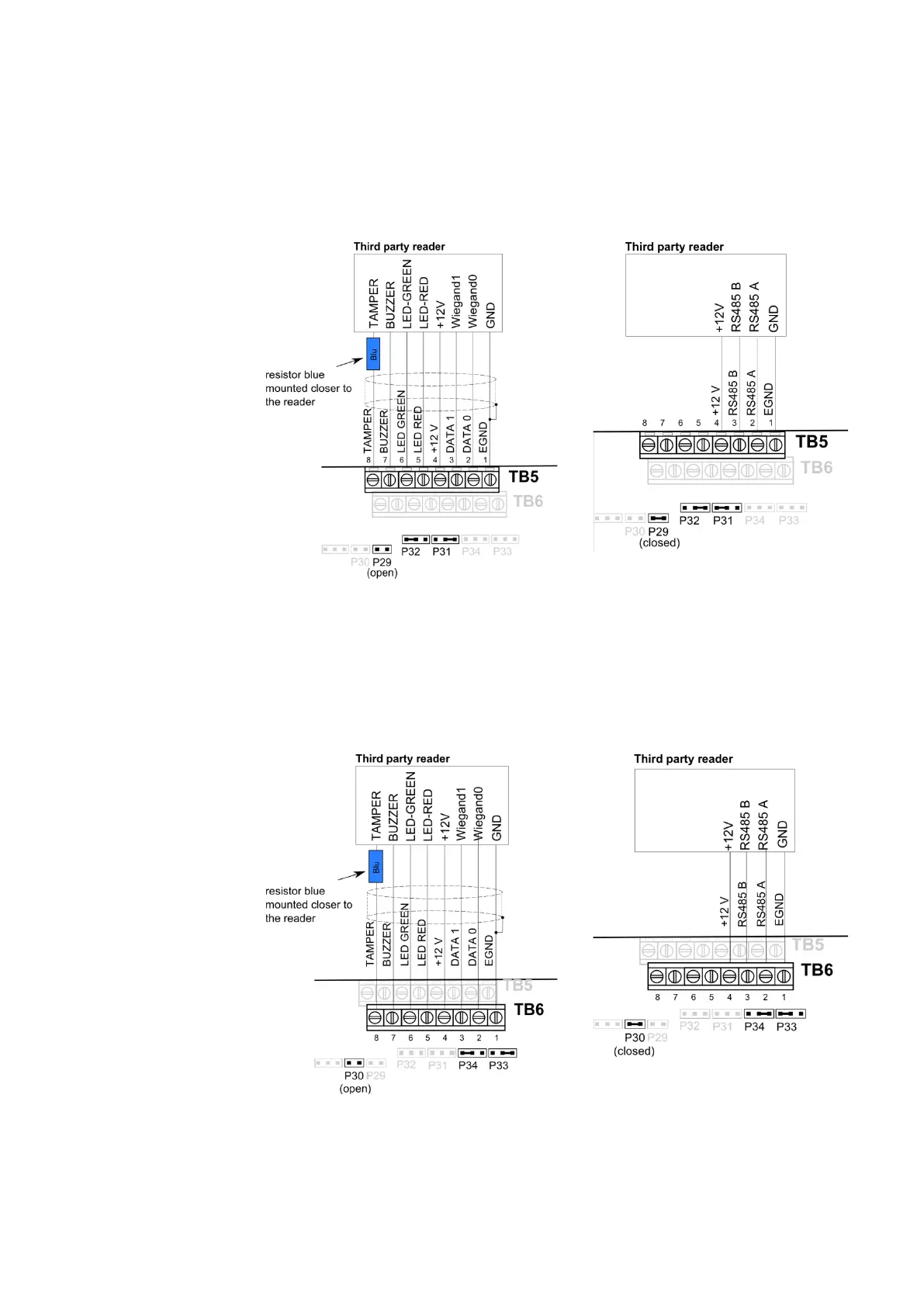

Reader in position 1
The below pictures show the connections schematics and jumpers
setting for reader in position 1:
Wiegand reader OSDP reader
Reader in position 2
The below pictures show the connections schematics and jumpers
setting for reader in position 2:
Wiegand reader OSDP reader
