Configurable Output 5

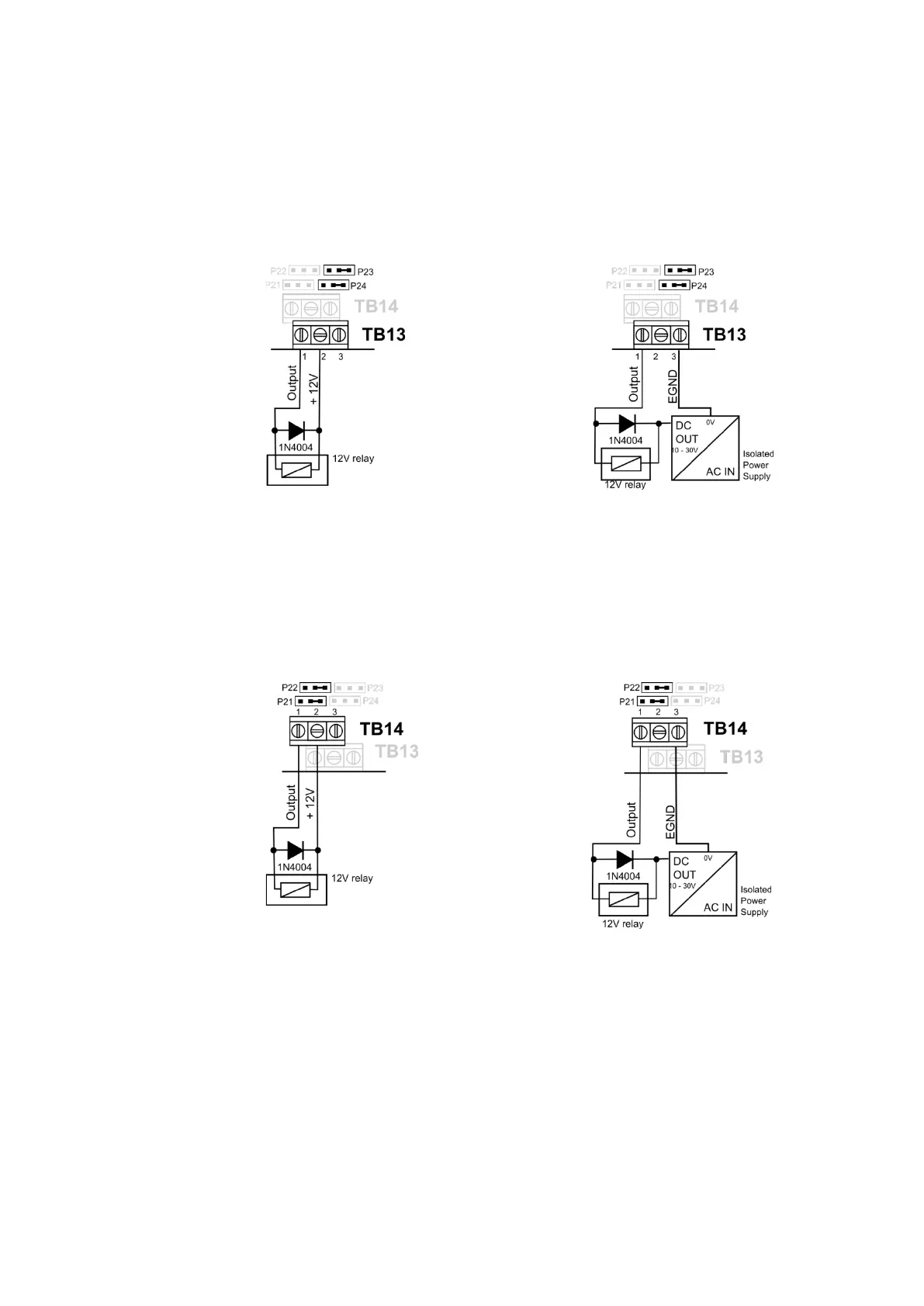

The below pictures show the connections schematics for an external
relay powered directly from Multi or from an external power supply
using configurable output 5:
External Relay Powered by Multi
External relay powered by
external power supply
Configurable Output 6
The below pictures show the connections schematics for an external
relay powered directly from Multi or from an external power supply
using configurable output 6:
External Relay Powered by Multi
External relay powered by
external power supply
