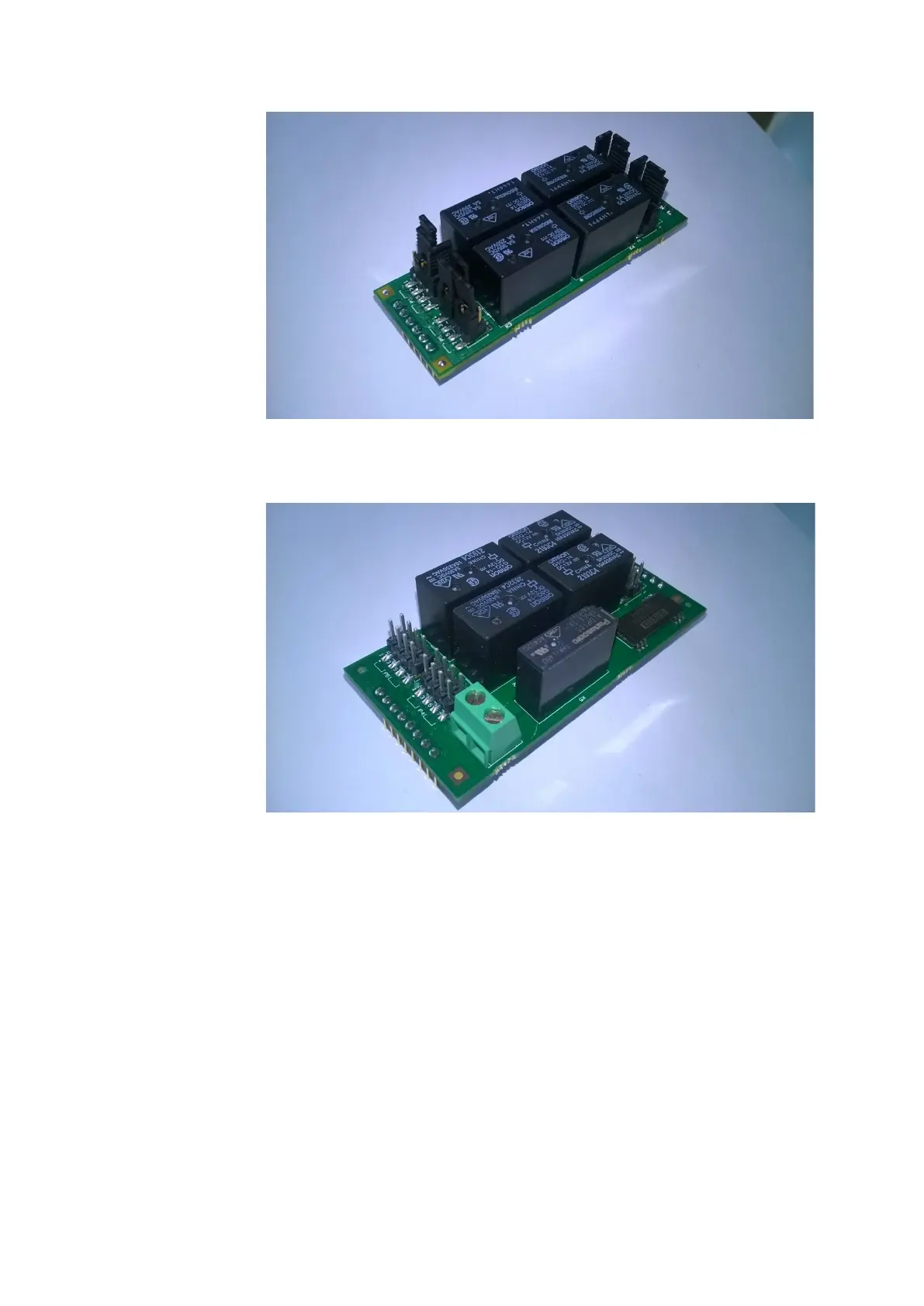

Figure 14 - VMA-06 relays Plug-in
Figure 15 - VMA-07 Relay Plug-in
Mounting the plugs-in
To mount the plugs-in on the Multi device follows the below steps:
1. Determine an appropriate mounting position for the plugs in. If you
have a VMA-07 you have to plug it only on the position 1, where
VMA-06 can be plugged in any of the 3 sockets' positions (in
relation to the outputs to be managed).
a. Position 1 drives fixed outputs 1, 2, 3, 4
b. Position 2 drives flexible outputs 3, 4, 5, 6
c. Position 3 drives flexible outputs 1, 2, 7, 8
