Characteristics and connections are the same for fixed and
configurable inputs.
Connecting Fixed Inputs
Fixed Input 1

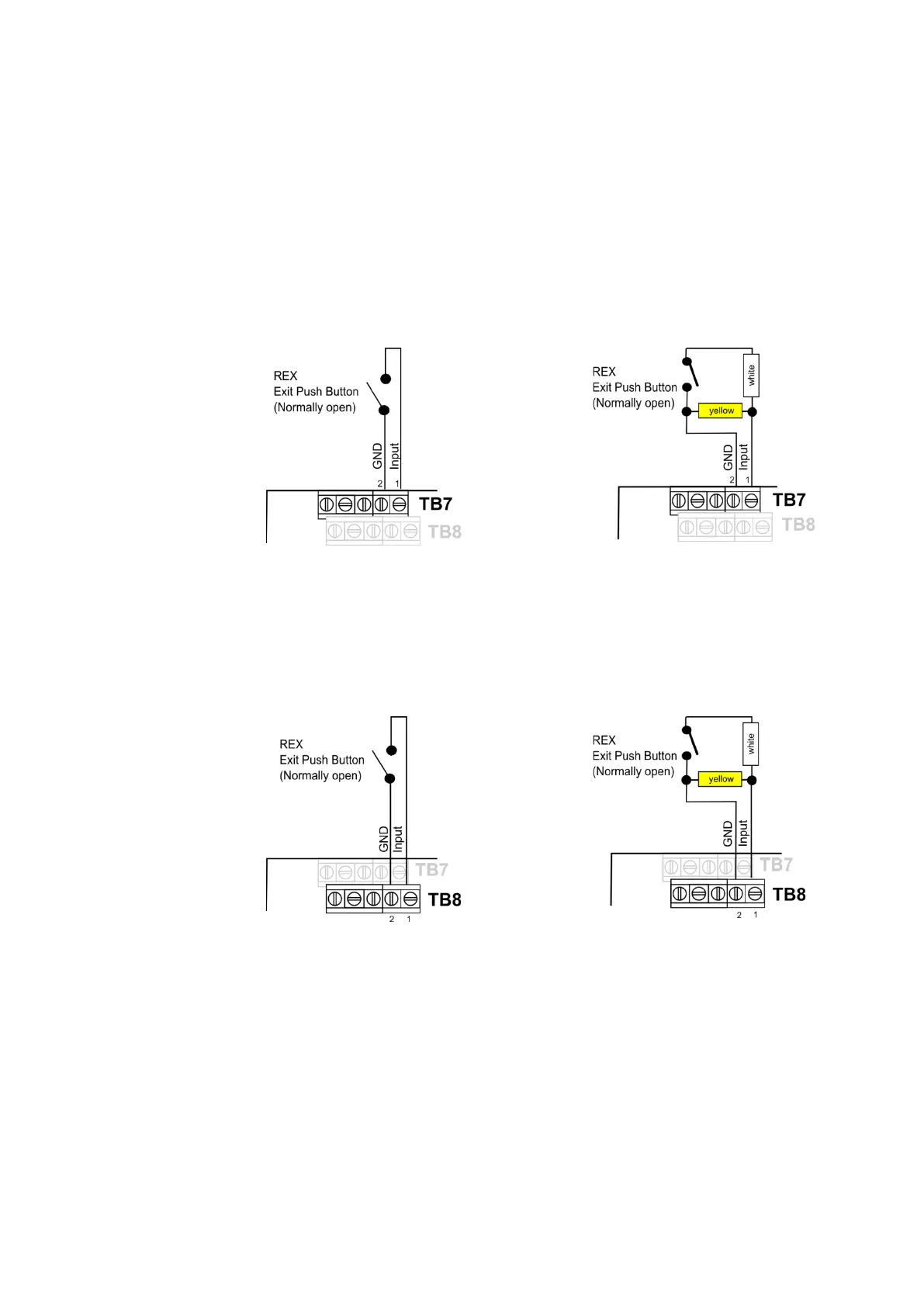

The below pictures show the connections schematics for dry contact
and supervised contact for fixed input 1:
Dry contact connection Supervised connection
Fixed Input 2
The below pictures show the connections schematics for dry contact
and supervised contact for fixed input 2:
Dry contact connection Supervised connection

Honeywell Tema-Voyager Multi VMC-02WENN1 Specifications

General

Brand	Honeywell
Model	Tema-Voyager Multi VMC-02WENN1
Category	Controller
Language	English
