Connecting configurable Inputs
Configurable Input 1

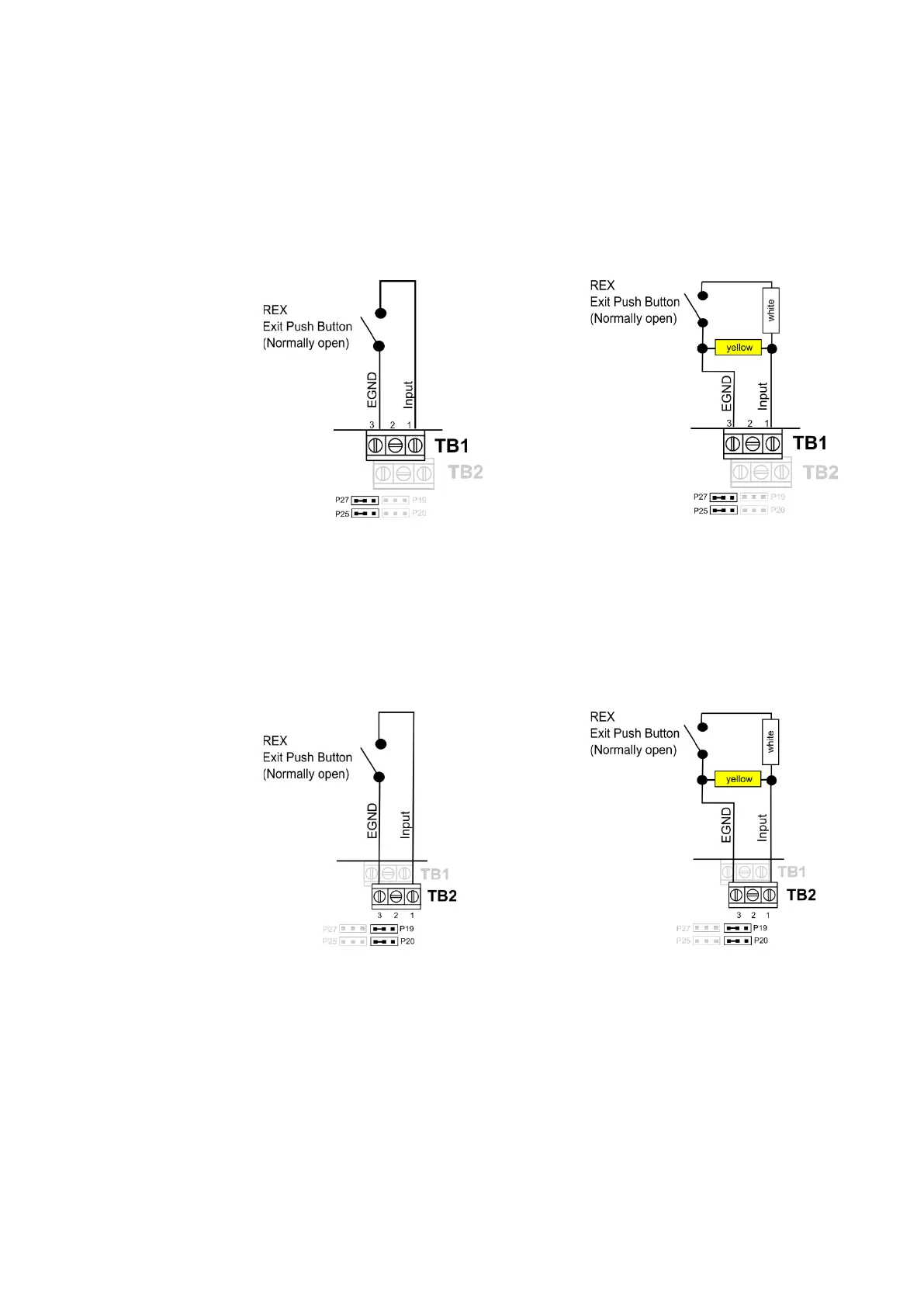

The below pictures show the connections schematics for dry contact
and supervised contact for configurable input 1:
Dry contact connection
Supervised connection
Configurable Input 2
The below pictures show the connections schematics for dry contact
and supervised contact for configurable input 2:
Dry contact connection
Supervised connection
