35
Configurable Input 7

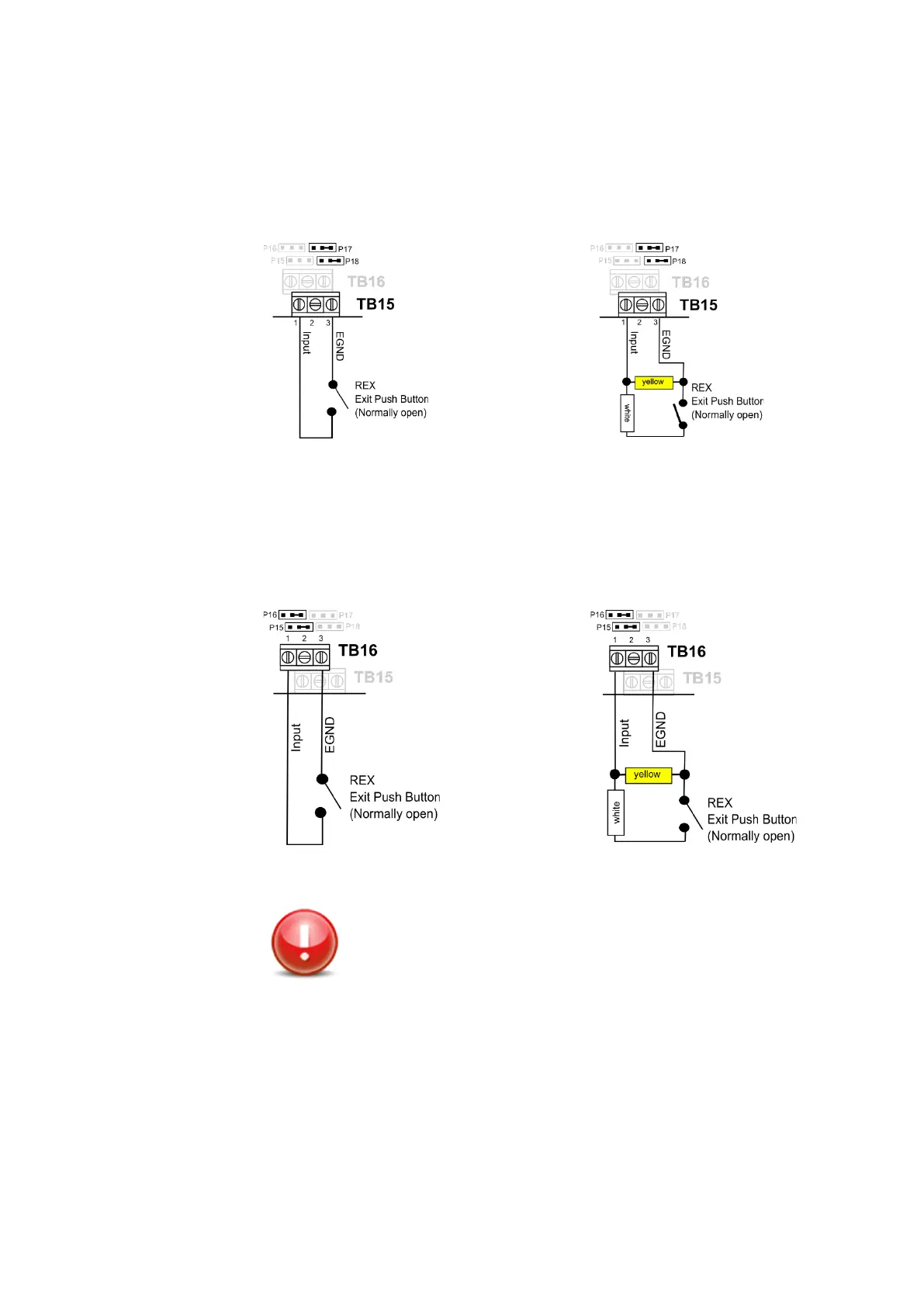

The below pictures show the connections schematics for dry contact
and supervised contact for configurable input 7:
Dry contact connection
Supervised connection
Configurable Input 8
The below pictures show the connections schematics for dry contact
and supervised contact for configurable input 8:
Dry contact connection
Supervised connection
Caution: Temaline recommends that you establish
an electrical environment where the cables are well
separated, even at short runs, especially for the
power cables or external cables which can be
essentially subjected to interference or lightning.
Use a twisted-pair cable for the contact cables.
Make sure that the cables correspond in size to the
norms indicated in section Input wires.
Max contact resistance = 25 Ohm
