Dry contact normally closed
Power output normally open
Power output normally closed

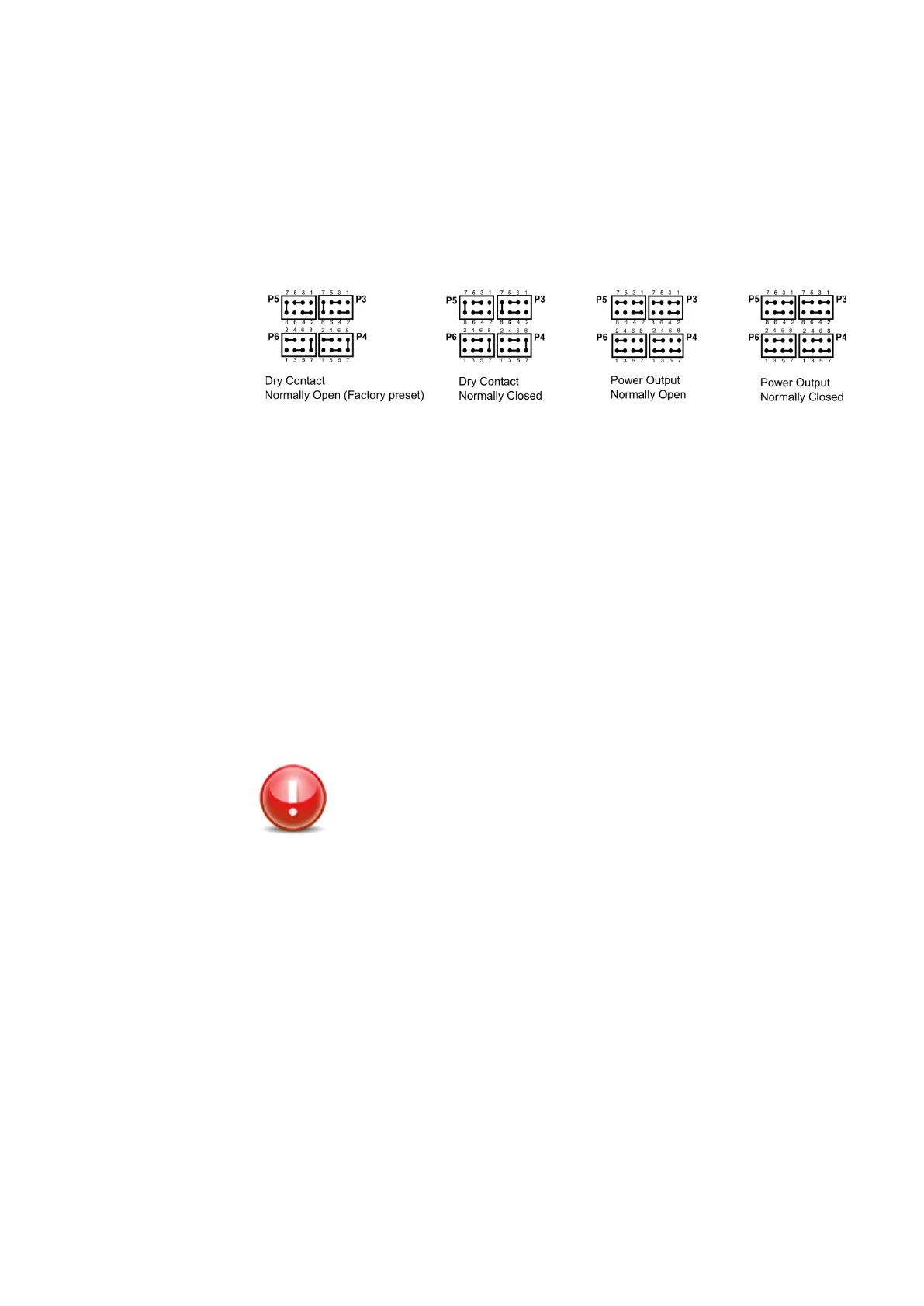

The below picture shows the way to set the jumpers to have the
desired mode:
Figure 19 - Relay output mode
Configuration of Multi to use VMA-06 and VMA-07 plugs-in
To use relay outputs on VMA-06 and VMA-07 plugs-in it is required to
properly configure the jumpers on Multi board.
In the following pictures we show all the possible configuration of Multi
to use plugs-in relay outputs. For every configuration is shown also the
related Jumper settings.
Caution:
After inserting VMA-06 and VMA-07 plugs-in it is
required to configure some jumpers on Multi board
to drive the outputs through relays.
