Honeywell UDC2500 Manual

January 2017 51-52-33-137 7
Installation of the 50133058-501, UDC Controller Keypad Button Guide
Kit
Step Action
1
Remove the chassis from the case.
2
Remove the printed wiring boards from the chassis.
3
Remove the Display/Keyboard.
4

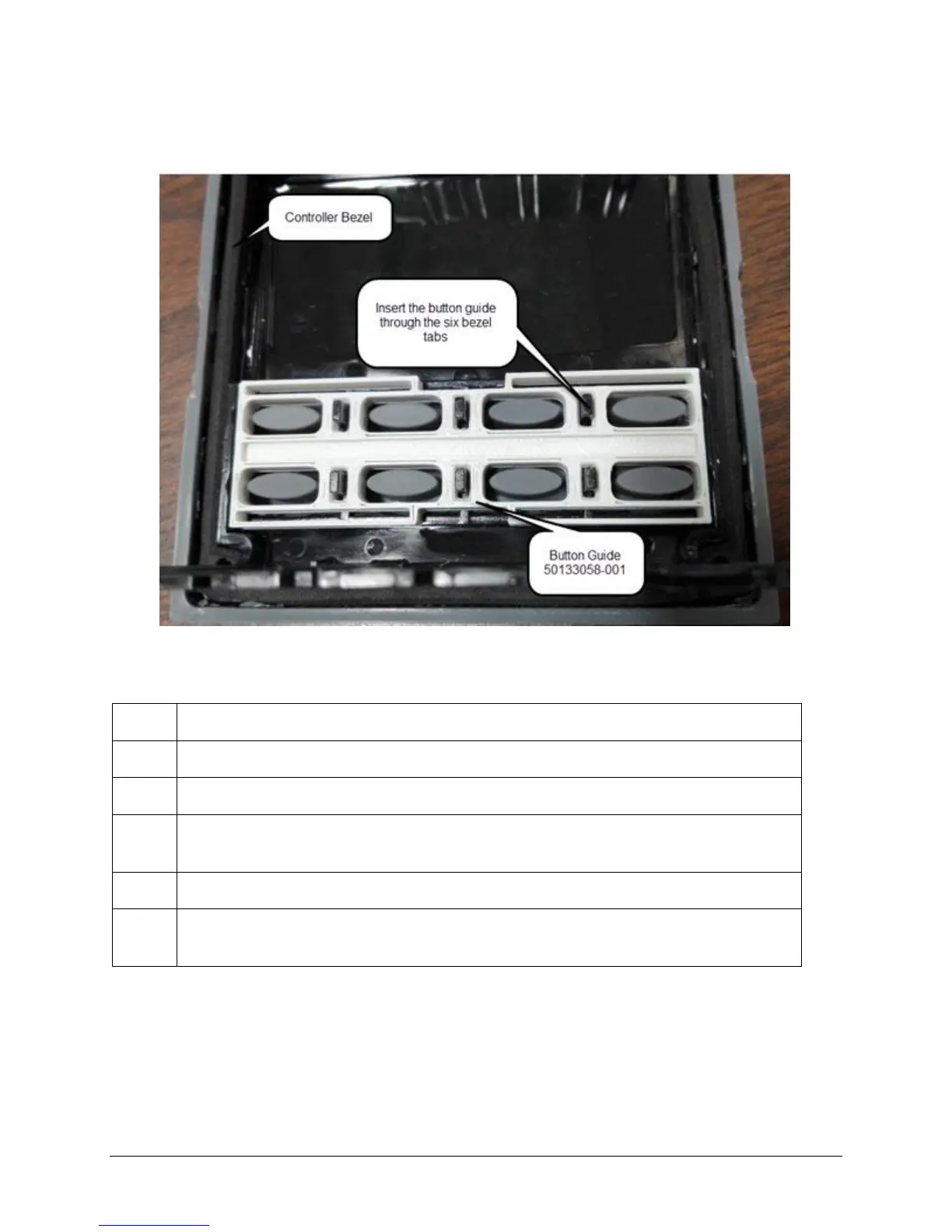

Insert the button guide over the protruding bezel rubber keypads, aligning with the six
bezel tabs as shown in above Figure.
5
Reassemble the Display/Keyboard and the other printed wiring boards.
6
Reinstall the chassis into the case. Push in hard until the case tabs lock onto the
chassis, then replace the screws if present.

Honeywell UDC2500 Specifications

General

Type	Universal Digital Controller
Alarm Relays	Up to 2 alarm relays
Communication	RS485 Modbus RTU
Mounting	Panel Mount
Display	Dual 4-digit LED
Input Types	Thermocouple, RTD, mA, V
Control Modes	On/Off, PID
Output Types	Relay, mA, V
Power Supply	100-240 VAC, 24V DC
Dimensions	96x96x132 mm
