Honeywell Vuquest 3310g Quick Start Guide

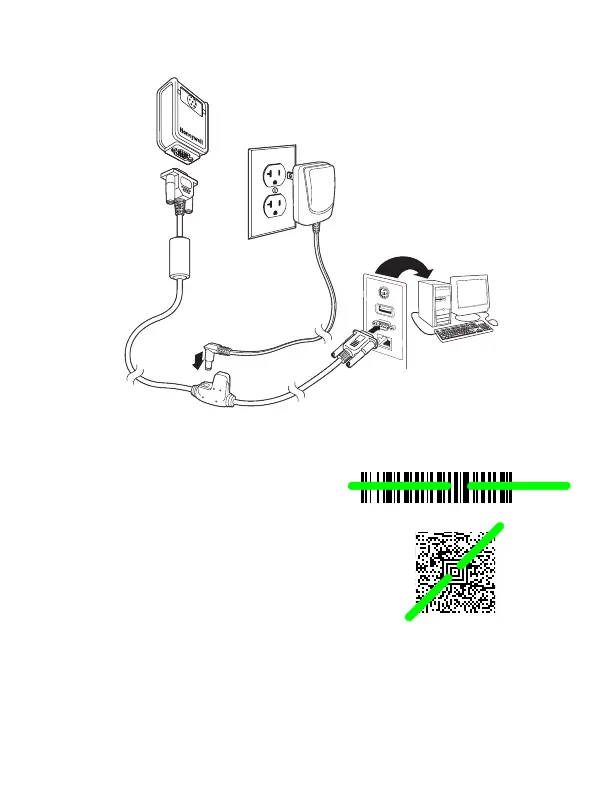

RS232 Serial Port:
Reading Techniques
The view finder projects an aiming
beam that should be centered over
the bar code, but it can be
positioned in any direction for a
good read.
Hold the scanner over the bar code,
press the trigger, and center the
aiming beam on the bar code.
The aiming beam is smaller when
the scanner is closer to the code and larger when it is farther from the
code. Hold the scanner close to smaller bar codes, and farther away
from large bar codes to get a proper read.
If the bar code is highly reflective (e.g., laminated), you may need to
tilt the scanner at an angle so the bar code can be scanned.

Honeywell Vuquest 3310g Specifications

General

Type	Fixed bar code reader
Sensor type	-
Yaw reading angle	-65 - 65 °
Pitch reading angle	-45 - 45 °
Optical sensor resolution	838 pixels
Light levels (direct sunlight)	0 - 100000 lx
Standard interfaces	PS/2
Connectivity technology	Wired
Input voltage	5 V
Power consumption	450 mA
Power source type	AC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Product color	White
International Protection (IP) code	IP53
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	USB

Weight and Dimensions

Depth	74 mm
Width	50 mm
Height	26 mm
Weight	75 g
