Fig. 10
Cut Wires
8

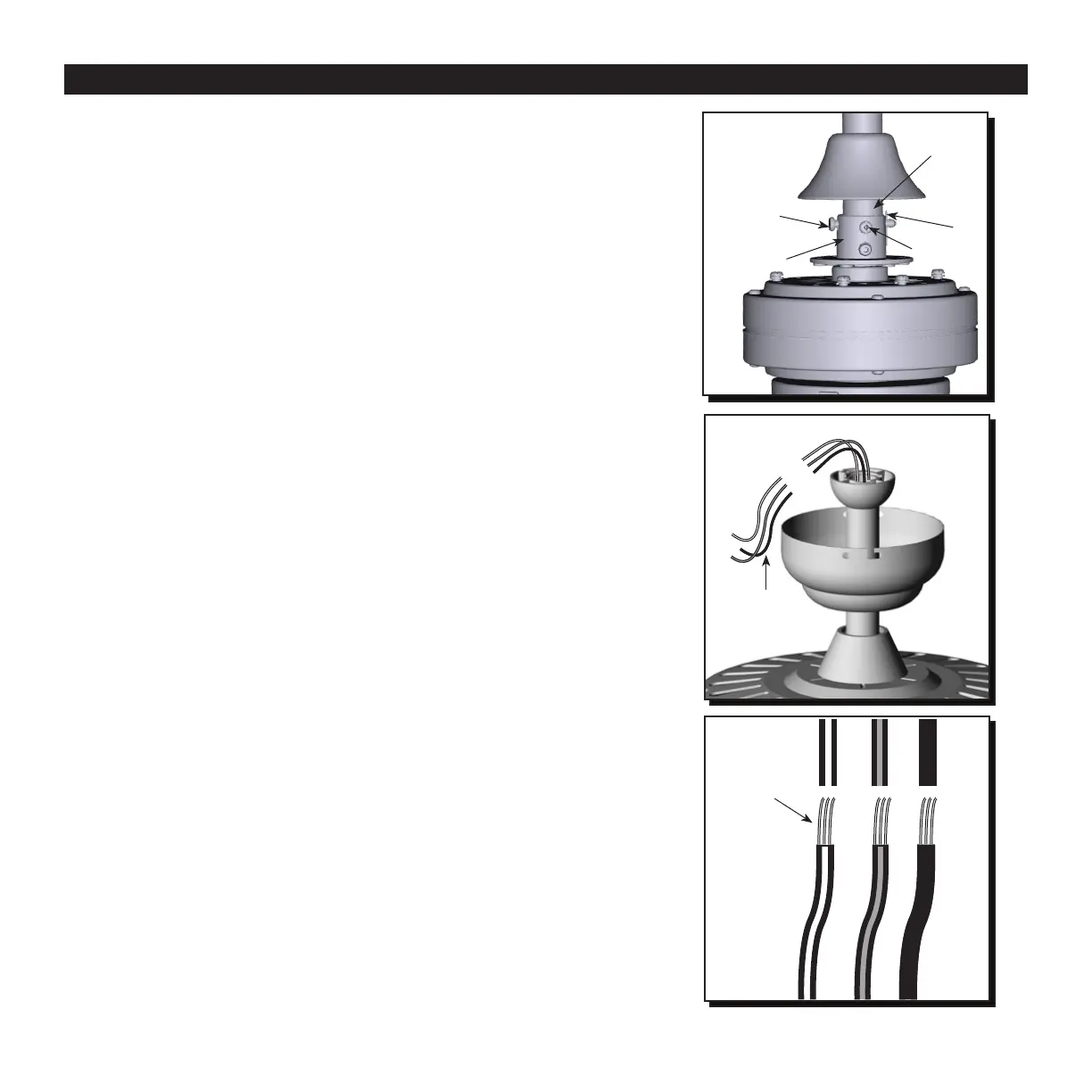

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
9. Slide the downrod into the yoke of the motor
assembly, align the holes, and reinstall the
downrod pin and downrod clip. Then re-tighten the
set screws with a Phillips screwdriver (Fig. 9).
10. Depending on the length of downrod you use,
you may need to shorten the wires to simplify the
wiring process. Pull the wires all the way through
the top of the downrod and measure 8 in. of lead
wire, and use wire cutters (not included) to remove
the excess wire (Fig. 10).
11. If you cut back the lead wire in Step 9, strip 1/2 in.
of insulation from the end of each wire. Twist the
stripped ends of each strand of wire (Fig. 11).
Note: If you did not cut back the lead wires in Step
10, Step 11 is not necessary and you may proceed
to Step 12 instead.
Downrod
Set Screw
Yoke
Downrod
Clip
Downrod
Pin
Fig. 9
Fig. 11
Stripped
Wires
To Next Page
