Honeywell Xenon 1952H User Manual

Xenon XP User Guide 207

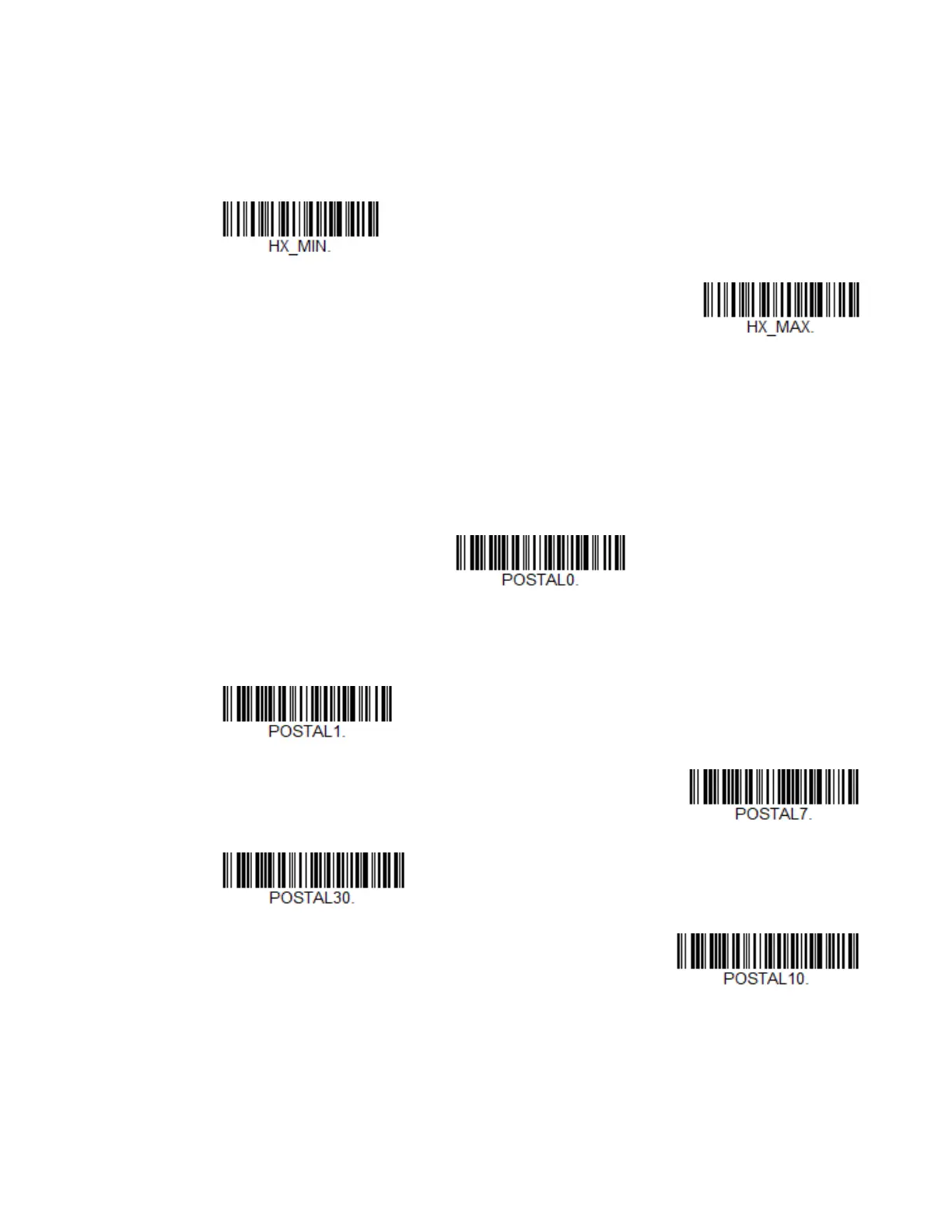

Han Xin Code Message Length
Scan the barcodes below to change the message length. Refer to Message Length
Description (page 152) for additional information. Minimum and Maximum
lengths = 1-7833. Minimum Default = 1, Maximum Default = 7833.
Postal Codes - 2D
The following lists the possible 2D postal codes, and 2D postal code combinations
that are allowed. Only one 2D postal code selection can be active at a time. If you
scan a second 2D postal code selection, the first selection is overwritten.
Default = 2D Postal Codes Off.
Single 2D Postal Codes:
Minimum Message Length
Maximum Message Length
* 2D Postal Codes Off
Australian Post On
British Post On
Canadian Post On
Intelligent Mail Barcode On

Honeywell Xenon 1952H Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Code 128, Code 39, U.P.C.
Optical sensor resolution (W x H)	1240 x 800 pixels
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417, QR Code
Battery life	14 h
Charging time	4.5 h
Battery capacity	2400 mAh
Power source type	Battery
Number of reads per charge	50000
Product color	White
LED indicators	Yes
Built-in display	No
Housing material	Plastic
International Protection (IP) code	IP41
Wireless range	10 m
Bluetooth version	4.2
Operating frequency	2400 MHz
Standard interfaces	USB
Connectivity technology	Wired & Wireless
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	99 mm
Width	64 mm
Height	165 mm
Weight	220 g
