Honeywell Z-Wave Series User Manual

20
Quick Installation Guide
Wiring—conventional systems

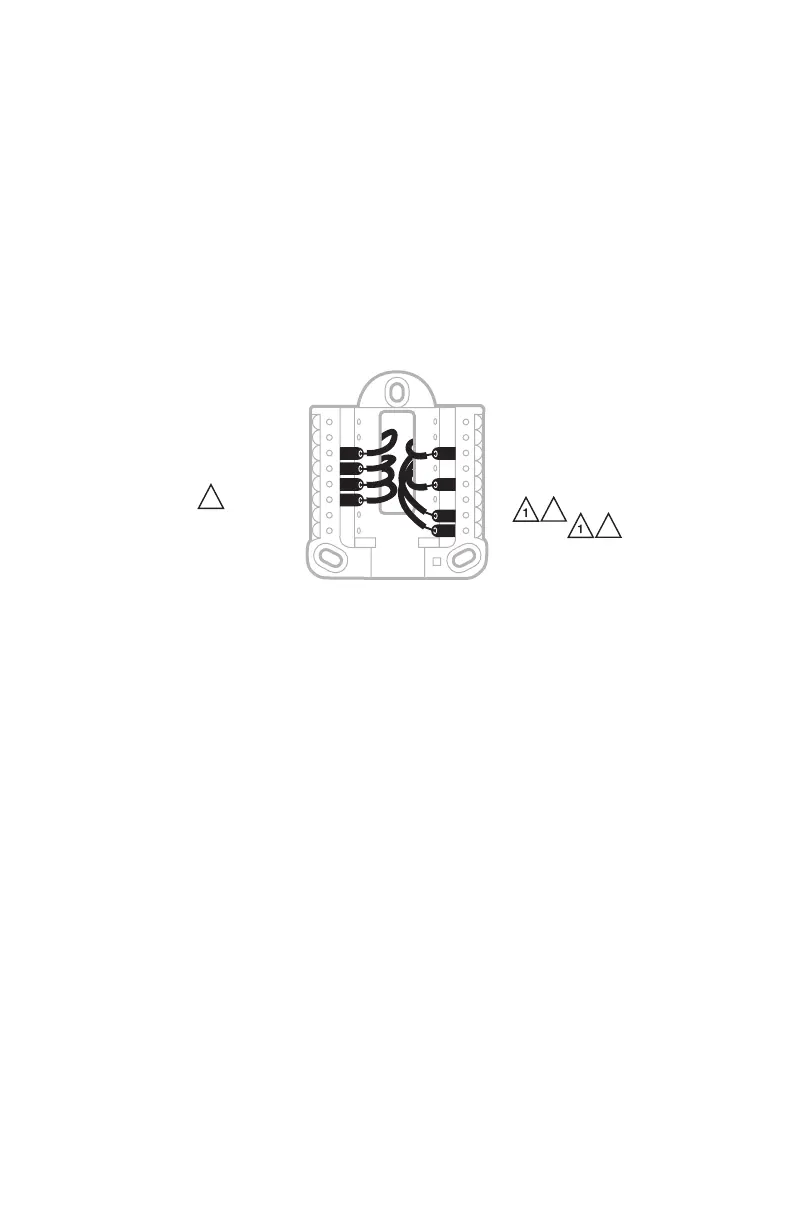

Alternate wiring (conventional systems)
If labels do not match terminals, connect wires as shown below (see notes, below).
NOTES:
1. If you must connect both R and Rc wires, set the R Slider Tab to the down
position (2 wires).
2. If your old thermostat had both R and RH wires, set the R Slider Tab to the
down position (2 wires). Then connect the R wire to the Rc terminal, and the
RH wire to the R terminal.
3. If your old thermostat had only 1 C or C1 wire, connect it to the C terminal. If
your old thermostat had 2 C or C1 wires, wrap each separately with electrical
tape and do not connect them.
AUX
S
S
Y
U
U
G
C
Y
A
Rc
W
K
W
2
R
L/A
O/B
E
Y
3
2
2
2
or Y1 or M
or F
or C1 or X or B
or W1 or H
or R
or RH or 4 or V

Honeywell Z-Wave Series Specifications

General

Protocol	Z-Wave
Display	Backlit LCD
Power Source	Battery or Hardwired
Z-Wave Frequency	908.42 MHz (US)
Humidity Sensor	No
Compatibility	Z-Wave certified hubs
Remote Access	Yes
Voice Control	Yes (with compatible hub)
Energy Saving Features	Yes
