terminal
No.4pin，No.5pin connect12V or 5V（selected） No.2pin
connect low-level input current，No.5pin connection output
Output terminals
Relay output 1 Router + 12V/0.3A，External
connection siren
Touch switch Code use
External shell aluminum alloy
Size/ Weight 106mm x 92mm x 29mm 170G
Supply Power DC +12V/0.3A
LED display Code display

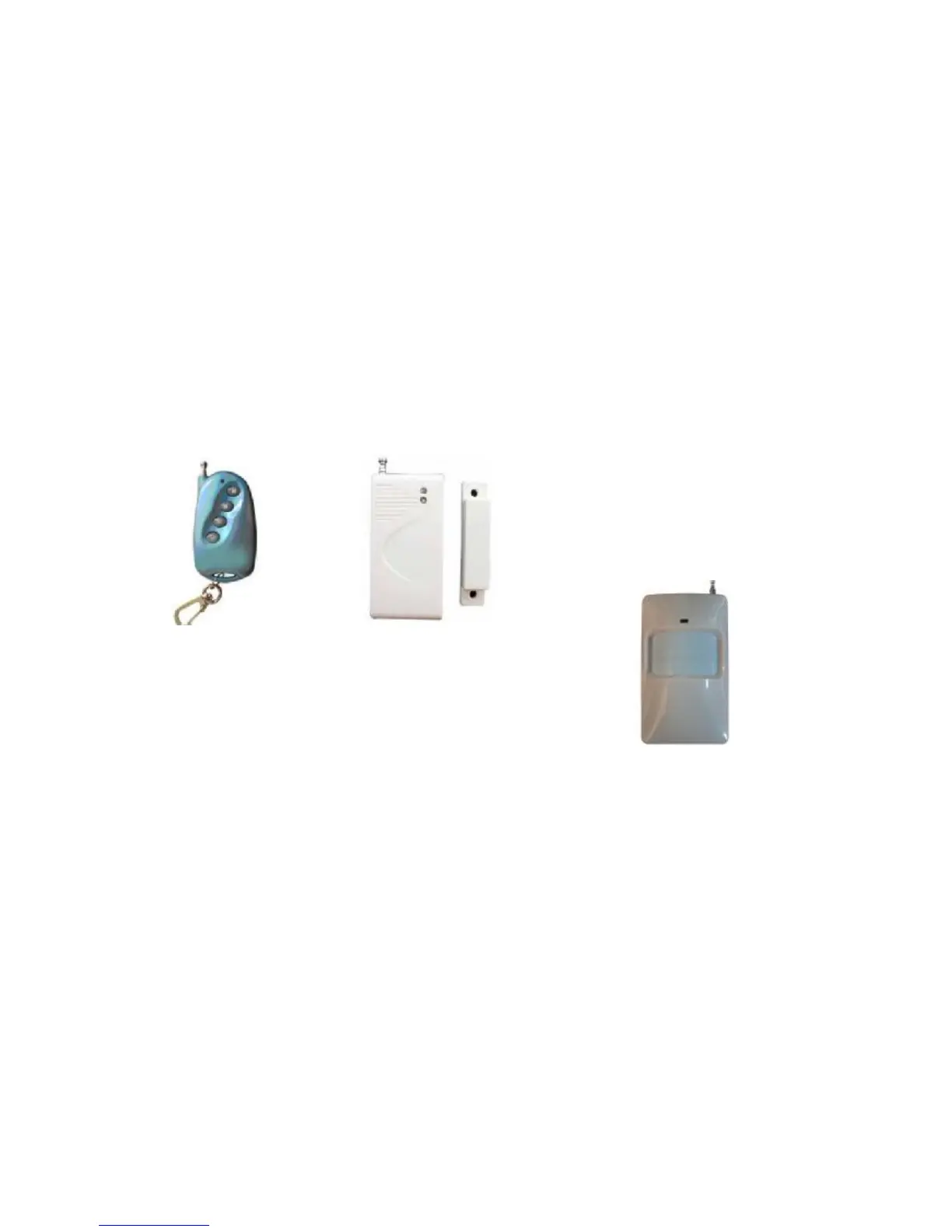

Matching alarm device：
Matching alarm device：
Arm and withdraw garrison remote controller Wireless Magnetic Door Infrared detector
Concrete settings please refer to linkage alarm host help instruction
